IG32 Triangular Omni Wheel Vectoring Robot Platform
Category
Robot Kits - Omni Wheels
Omni Wheel Robot Kits. By changing the directions and speeds of the motors the omni-wheels will cause the robot to vector.
Category List
• Specials
Specials
 IG32 Triangular Omni Wheel Vectoring Robot Platform
Item Details
IG32 Triangular Omni Wheel Vectoring Robot Platform
Item Name:
IG32 Triangular Omni Wheel Vectoring Robot Platform
Item #:
TP-093-003
Price with Selected Options: (See 'Options' Below):
$579.32
Robot Ships in 1-3 Days
Quantity:

Product Image Gallery:
IG32 Triangular Omni Wheel Vectoring Robot Platform

The image gallery displays robots built using this platform.

Description:

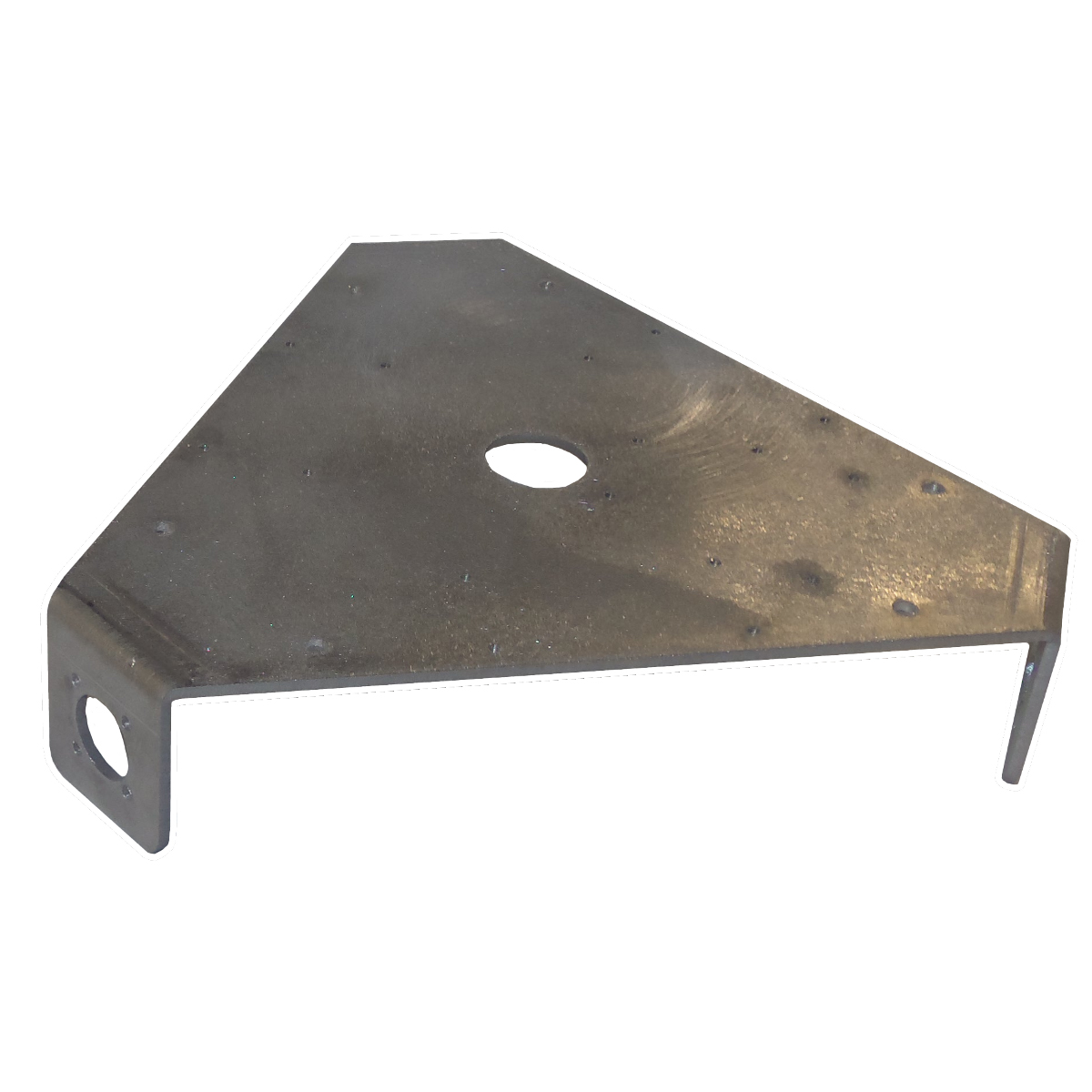

This triangular omni wheel robot platform is designed and fabricated in North Carolina USA and fully supported by SuperDroid Robots, an industry leader in robotics. This kit includes the CNC cut triangular base intended for our IG32 gear motors. The chassis is cut on our CNC plasma table and bent on our CNC break press. Its made of 1/8" thick Aluminum. The chassis also has mounting holes for three PWM motor controllers. It is designed so all our planetary IG32 and IG32P gear motors with or without encoders. It is NOT intended for our right angle IG32 gear motors. This robot platform is specifically designed for direct driving Nexus omni wheels and hubs (listed in the options below). See our vectoring robot page for more details. If you need this robot customized beyond the provided options below, send us your requirements.


This robot platform does not include a controller. We offer this same robot kit in a programmable configuration here.



Standard Configuration:

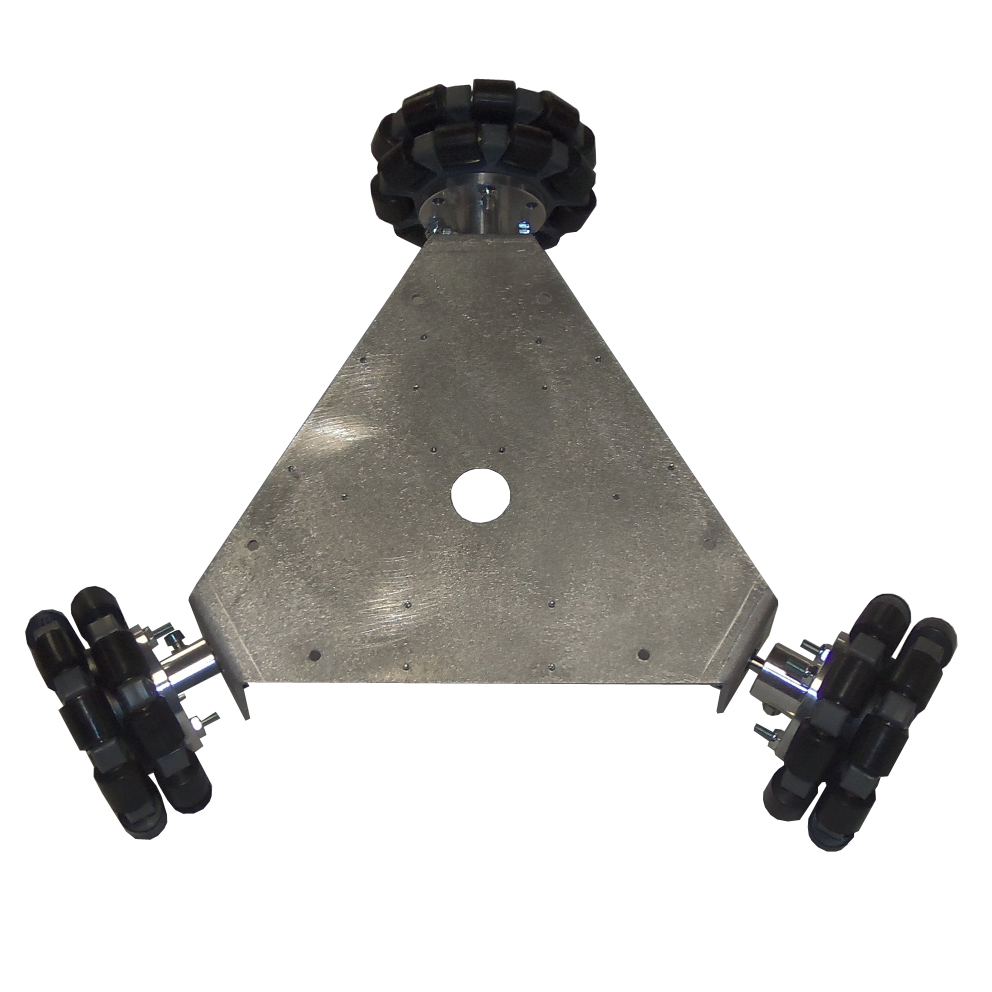

  • Direct Drive IG32 Triangular Omni Wheel Base.
  • The robot weighs about 6.5lbs in the default configuration.
  • All the electrical connectors, wires, etc. and hardware needed to get you started.
  • Omni Wheel hubs and wheels. (Qty 3 ea)(different sytles are wheels can be selected in the options below).
  • IG32 12V 104RPM gear motors. (different motors can be selected in the options below).
  • PWM Motor Controller 3A 12-55V (Qty 3). One per motor.
  • 12V 4500hAhr NiMH battery (different batteries can be selected in the options below).
  • Battery charger.

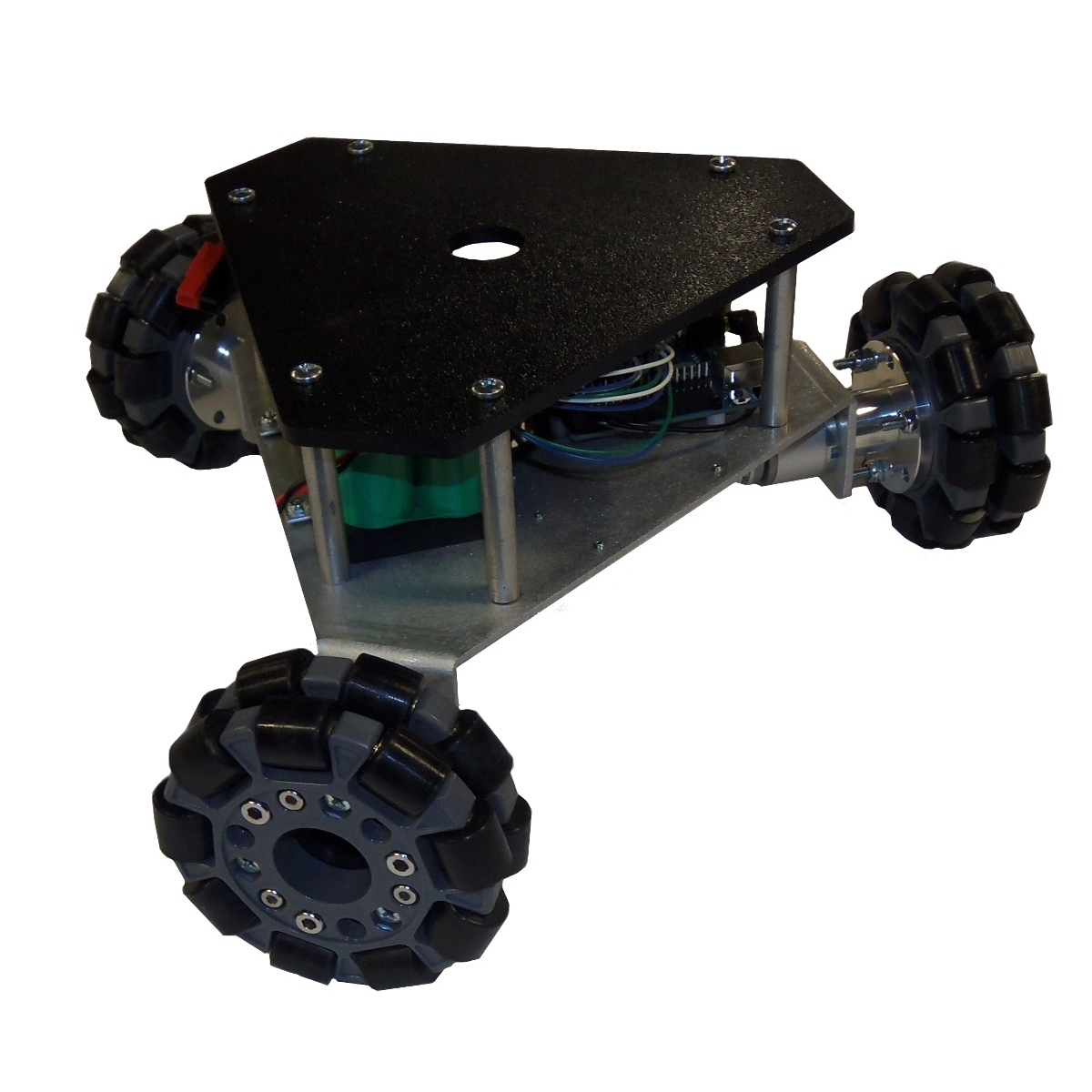

  • An upper deck. (if you don't want the upper deck, you can remove it in the options below).
  • Unassembled, Manual included. Or you can select full assembly and we will assemble and test it for you.

Available Options:

The standard items and options are listed below. They are listed as links and can be clicked to view further details. We offer many different motors, batteries, etc. so you can configure the robot to your exact needs. The weight of the robot, its capacity, speed, etc. depends on the robot's configuration. The item details of the options listed below will specify weights, sizes, etc.

Documentation and Support:

Delivery:

  • This item usually ships within 1-3 days depending on volume.
  • Assembly adds a couple more days.
  • Need it faster? Contact us

Videos:

Item Options - Customize
Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.

These are standard items that are required. They are checked and grayed out indicating that they are not optional and cannot be unchecked

These are the standard included items for this robot kit, please leave all of them selected unless you are sure you do not need them

Select the following wheel hubs. If you already have wheel hubs, you can select none.

No Wheel Hubs

Select the Omni Wheel you want to use. If you already have omni wheels select none.

No Omni Wheels

Select the Motors you wish to use to drive your Omni Wheels.

No Motors

Select the motor controller you want to use.

No Motor Controller

Select the drive battery you wish to use. If you are using 24V motors, you will need 22.2V battery or two 12V batteries and wire them in series for 24V.

No Battery

Select a battery charger to match the battery you selected.

No Battery Charger
(Qty 1) Battery Charging system (Add $49.90)

Select this option if you want a customized battery mount(s) that will fit the battery(ies) you selected above.

(Qty 1) No Battery Mount
(Qty 1) Customized Battery Bracket(s) (Add $25.00)

Select your upper deck option.

No Upper Deck
(Qty 1) Black ABS upper deck with standoffs and hardware (Add $38.00)
(Qty 1) Aluminum upper deck with standoffs and hardware (Add $38.00)

Select if you want the robot assembled.

Unassembled
(Qty 1) Assemble Triangular Omni Wheel Robot (Add $165.00)
An Asterisk '*' indicates that one or more options is Out of Stock!
Item Price
Price with Selected Options:
$579.32

 This is a direct drive triangular base robot kit that uses Nexus wheels and hubs. Its a great light duty robot kit great for indoor robotics that can vector in any direction.
