LV-MaxSonar-EZ0 Ultrasonic Ranger 5 Pack
Item Details
LV-MaxSonar-EZ0 Ultrasonic Ranger 5 Pack
Item Name:
LV-MaxSonar-EZ0 Ultrasonic Ranger 5 Pack
Item #:
TS-039-500
Your Price:
$149.75  $124.75
Not Available
Quantity:

Product Image Gallery:

Description:

This easy to use sensor is from the Maxbotix company. The LV-MaxSonar-EZ0 offers very short to long-range detection and ranging, in an incredibly small package with ultra low power consumption. The LV-MaxSonar-EZ0 detects objects from 0-inches to 254-inches (6.45-meters) and provides sonar range information from 6-inches out to 254-inches with 1-inch resolution. Objects between 0-inches and 6-inches range as 6-inches. The interface output formats included are pulse width output, analog voltage output, and asynchronous serial digital output.

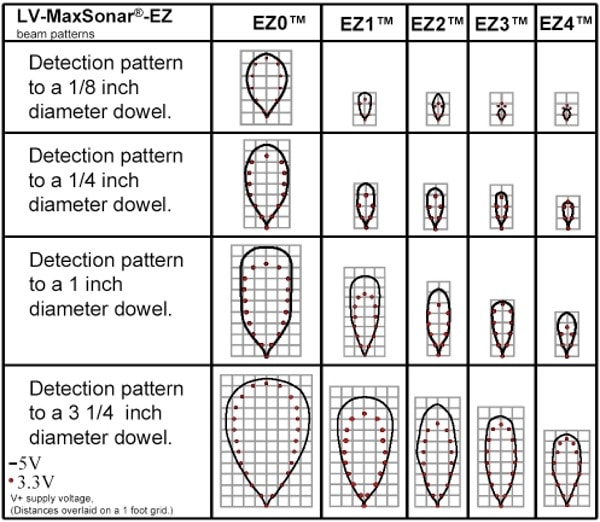

The EZ0 offers the most sensitivity of the MaxSonar Product line, yielding a controlled wide beam with high sensitivity.

For more information please download the datasheet: MaxSonar-EZ0-Datasheet.pdf.

Features and Specifications :

(see data sheet for full up to date details)

  • 42kHz Ultrasonic sensor
  • 20Hz reading rate
  • RS232 Serial Output - 9600bps (it's RS232 not TTL)
  • Analog Output - 10mV/inch
  • PWM Output - 147uS/inch
  • Low 2mA supply current
  • 2.5-5.5V operation range
  • Small, light weight module


This is a 5 Pack of the MaxBotix LV-MaxSonar-EZ0, which offers very short to long-range detection and ranging, in an incredibly small package with ultra low power consumption.  The MaxSonar-EZ0 detects objects from 0" to 254".
