 Single IG32 or IG42 Motor Mount
Item Details
Single IG32 or IG42 Motor Mount
Item Name:
Single IG32 or IG42 Motor Mount
Item #:
TD-064-000
Price with Selected Options: (See 'Options' Below):
$42.00
Built to Order: 1-3 days
Quantity:

Product Image Gallery:
Single IG32 or IG42 Motor Mount

Description:

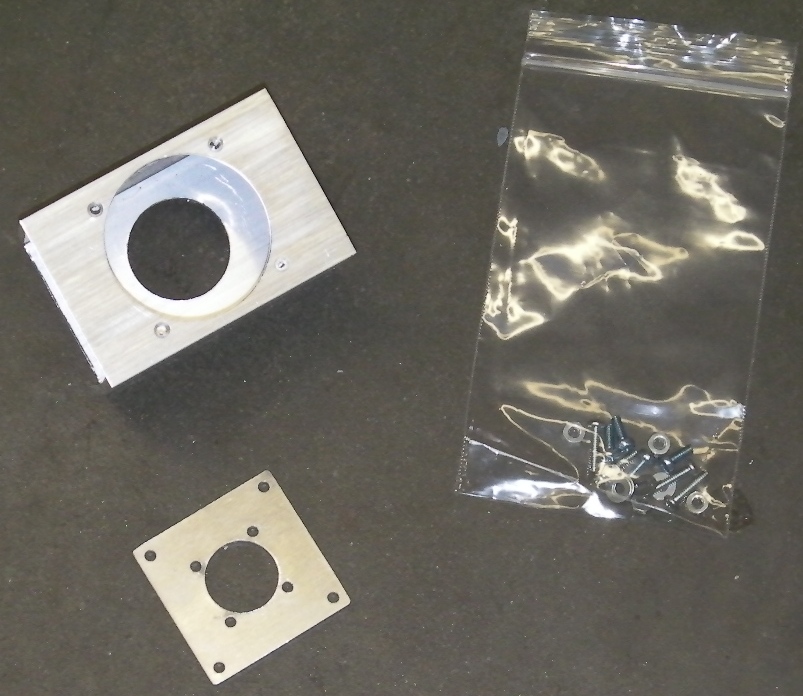

This is 2" x 2" Aluminum tube with a 1/8" thick wall. They support our ATR Wheel and Shaft Set Pair, our Single Row, Omni-Wheel and Shaft Set or our Double Row, Omni-Wheel and Shaft Set. One motor adaptor plate is provided with hardware to mount either a IG32 or a IG42 inline planetary gear motors to the chassis side. (These are not intended for our right angle gear motors, different adaptor plates would be needed). The width of robot is up to you, it must be at least (the length the gear motors + 2" tube + 1/8" adaptor plate) x 2. A simple piece of plywood, aluminum, or acrylic can be used to tie the mounts together or they can be bolted onto your own robot chassis. Please note when using our ATR Wheel and Shaft Set Pair, the pair is one left and one right tire; so you will need two pairs to get two left tires and two right tires.

The tube structure uses the bearings in the above linked wheel kits to support the axle. The other side of the axle is supported by the motor. This provides a much stronger attachment for the wheels and the load is put on a heavy duty bearings and tube instead the motor. Direct coupling a wheel to the motor will just ruin a motor quickly.

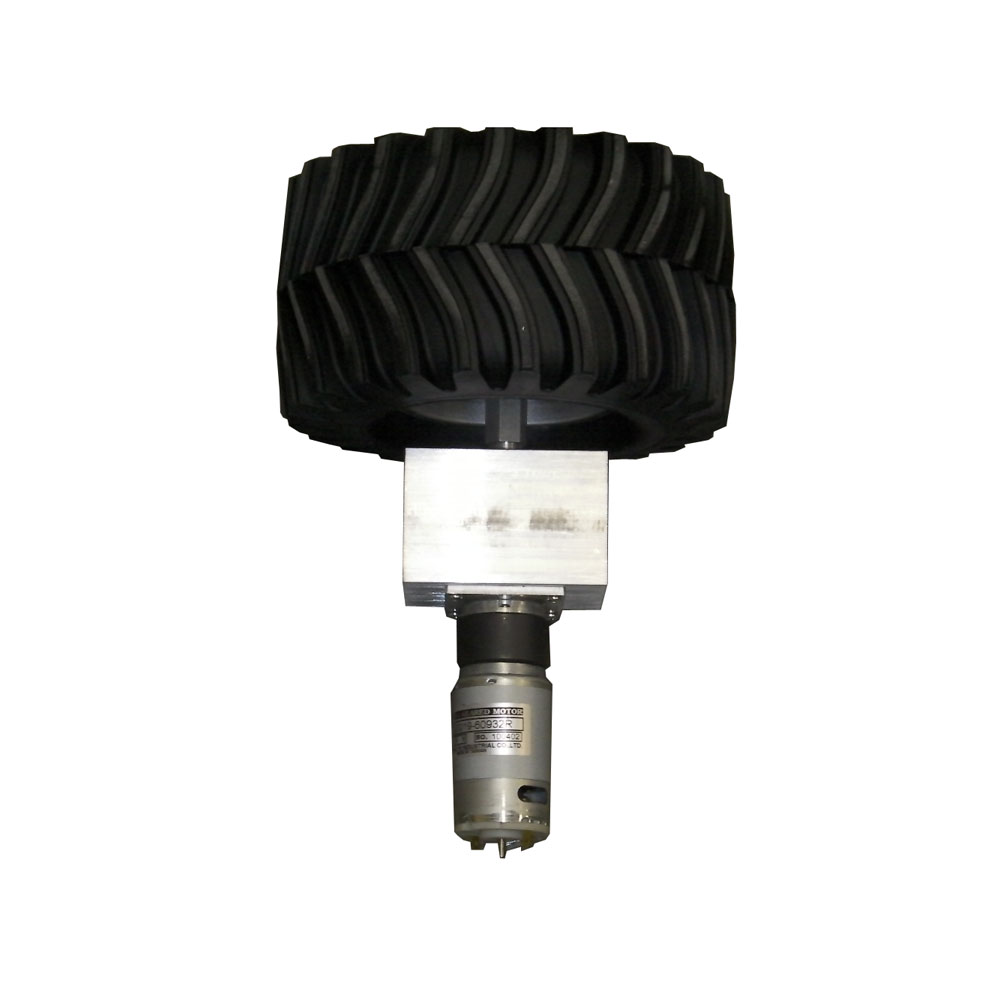

Note: Pictured above in the gallery with discontinued tires.

Available Options:

The motor coupling can be selected for either an IG32 or IG42 and must be selected below.

Documentation:

Delivery:

Please allow 2 days for fabrication after ordering.

Item Options - Customize
The default items have already been selected, but you can customize this item by expanding the options below and changing your selections. Please contact us if you have any questions.

Select the motor mount plates desired.

(Qty 1) IG32 Motor Plates and Hardware
(Qty 1) IG42 Motor Plates and Hardware
Item Price
Price with Selected Options:
$42.00

 This is a 2" x 2" Aluminum tube with a 1/8" thick wall designed to support a variety of wheel systems.
