Description:

The 6-channel DX6i uses full-range DSM2/DSMX™ technology and includes an impressive list of programming features for both airplanes and helicopters that are simple to access and use. Of course it works great with robots too! This package comes with the DX6i transmitter, AR7010 DSMX receiver, rechargable batteries, and charger. This package does not include any servos.

We have had great success with this radio and receiver. With the spread Spektrum frequency hopping system we get great range and reliability regardless of the other 2.4GHz systems around like routers and phones. The other benefit of 2.4GHz is most motor noise and mechanical noise/interference is well below this frequency which often causes issues with the 72 and 75MHz radio systems.

Transmitter Specificiations

• Modulation: DSM2
• Band: 2.4 GHz
• Receiver: AR7010
• Programming Features: Helicopter and Airplane
• Model Memory: 10
• Modes: Mode 2
• Transmitter (Tx) Battery Type: AA NiMH 1500 mAh batteries
• Charger: 4-cell 150 mAh wall charger
• Experience Level: Intermediate
• Assembly Required: No

Transmitter Key Features:

• Full range 2.4GHz DSM2 6-channel radio
• 10-model memory
• ModelMatch
• ServoSync
• Roller/selector user interface
• Attractive and ergonomic design
• Proven DSM2 technology
• Rudder dual-rate

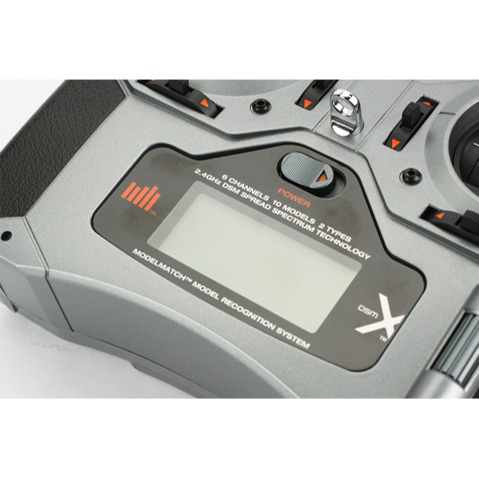

• Large LCD display
• Integrated timer
• Contrast Adjustment
• Dual-speed trim scroll
• Model name and type
• Throttle cut
• Trainer Mode
• Model Copy
• Travel adjustment
• Sub-trim
• Servo monitor
• Dual rate and exponential
• Compatible with any existing DSM, DSM2 and DSMX receivers
• Airplane Programming Features: Flaps, P-mixes, Dual aileron, V-tail, Delta, Differential
• Heli Programming Features: Gyro adjust, Graphic throttle curve, Graphic pitch curve, P- mixes, Revo mix, Swash type (Normal, and CCPM 120)
• Adjustable stick length
• Direct trim access display

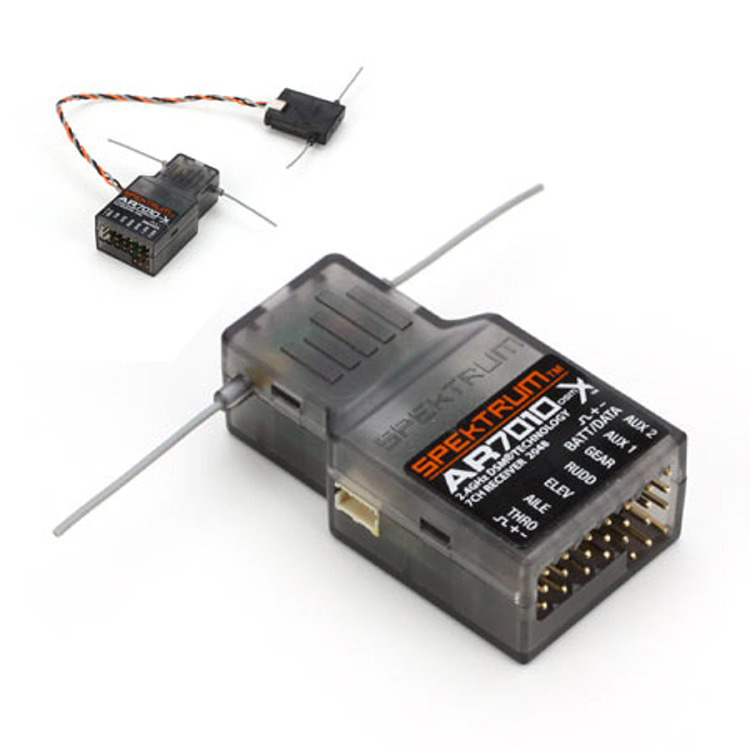

Receiver Specifications:

• Type AR7010 7-Channel DSMX Full Range Receiver
• Modulation DSM2/DSMX
• Dimensions: 1.85 in Length x 1.0 in Width x 0.62 in Height
• Weight: 0.49 oz
• Voltage Range: 3.5 - 9.6V
• Antenna Length: Main Rx: 30mm, Remote Rx 30 mm

Receiver Key Features:

• 7 channels
• Includes patented MultiLink redundant receiver technology
• Utilizes patented duaLink dual frequency diversity system
• Internal and one remote receiver
• Patent pending ModelMatch prevents flying a model using the wrong model memory (feature does not work with module systems)
• ServoSync (feature does not with with module systems)
• Flight Log Compatible
• SmartSafe failsafe system
