Buffered 6g Accelerometer
Item Name:
Buffered 6g Accelerometer
Item #:
TS-043-006
Your Price:
$22.95
In Stock!
Quantity:

Description:

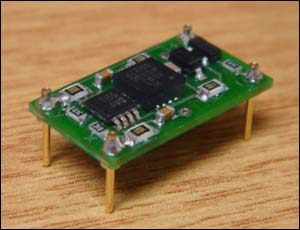

The DE-ACCM2G from Dimension Engineering is an off the shelf 2 axis ±6g accelerometer solution with analog outputs. It features integrated op amp buffers for direct connection to a microcontroller's analog inputs, or for driving heavier loads.

To maximise usability, it is designed to fit in the DIP-14 form factor, making the DE-ACCM5G suitable for breadboarding, perfboarding, and insertion into standard chip sockets. To keep things as simple as possible, there are only 4 pins - two for power, and two for the X and Y analog outputs. An onboard regulator keeps the power at a steady 3.3V. Additional circuitry ensures that the product won't be damaged by reversed power connections, or voltages above the recommended ratings.

Need more sensitivity? Try the 2g ACCM.

Product Specifications

Model: DE-ACCM5G
Performance: Dual axis ±6g sensing
222mV/g sensitivity
500Hz bandwidth
3.3V onboard regulator
Accurately drives up to a 3k? Load
Protective Features: Reverse voltage protection
Output short protection
Applications: Motion, tilt and slope measurement
Shock sensing
Cute little tables for army men
Datasheet:
Example Projects:

The DE-ACCM6G from Dimension Engineering is an off the shelf 2 axis ±6g accelerometer solution with analog outputs. It features integrated op amp buffers for direct connection to a microcontroller's analog inputs, or for driving heavier loads.
