IG36 24VDC 082 RPM Gear Motor

Category
36mm diameter gear motors
These Planetary Gearboxes are nominally 36mm in diameter with permanent magnet reversible DC motors.
Category List
• Specials
Specials
 IG36 24VDC 082 RPM Gear Motor
Item Details
IG36 24VDC 082 RPM Gear Motor
Item Name:
IG36 24VDC 082 RPM Gear Motor
Item #:
TD-073-082
Your Price:
$59.98  $48.90
In Stock!
Quantity:

Product Image Gallery:
IG36 24VDC 082 RPM Gear Motor

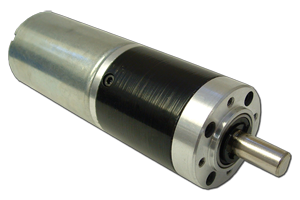

Anaheim Automation BDPG-36-57 - Permanent Magnet (PM) DC Motors with Planetary Gearboxes.  24v 4200 rpm motor with 1:51 gear reduction.

  • DC Brush GearMotor Designed for High Volume Applications
  • 36mm motor body diameter
  • CE Certified, and RoHS Compliant

The BDPG-36-57 Series was designed for high volume OEM applications with low cost being the primary objective. They come in variety of power levels, sizes, and will be sure to fit your Brush DC Planetary Gearmotor requirments. These motors are fully reversible. The BDPG-36-57 Series motors are a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost Brush DC Planetary Gearmotor is needed.

Anaheim Automation Item Page Follow this Link

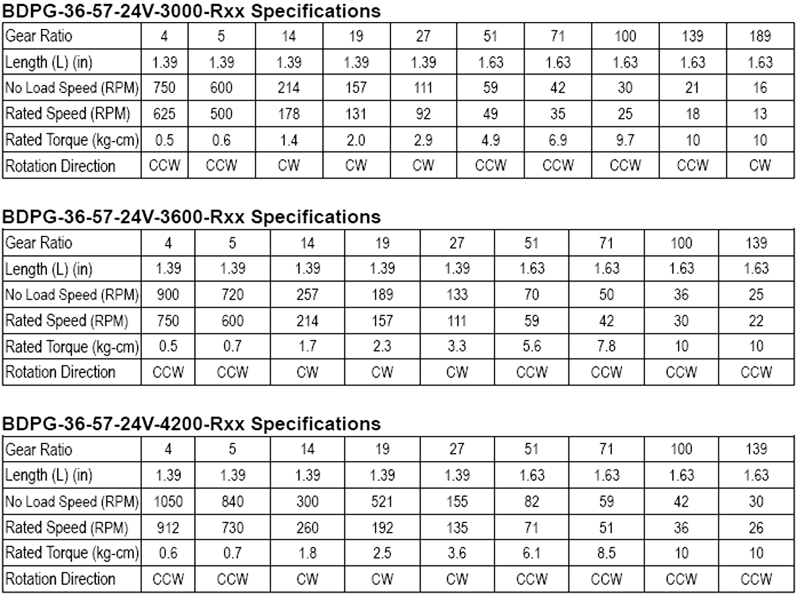

Item Gear
Ratio		Rated
Torque
(oz-in)		Peak
Torque
(oz-in)		No Load
Speed
(rpm)		Rated
Speed
(rpm)		Nominal
Voltage
(V)		Rated
Current
(A)		Output
Power
(W)		Body
Diameter
(mm)		Body
Length
(mm)		Length
(mm)		Shaft
Diameter
(mm)		Weight
(lbs)
BDPG-36-57-24V-4200-R51 51 113.88 833.24 82 71 24 0.52 7 36 104.5 47.5 8  1.02

 Anaheim Automation BDPG-36-57 - Permanent Magnet (PM) DC Motors with Planetary Gearboxes. 24v 4200 rpm motor with 1:51 gear reduction.
