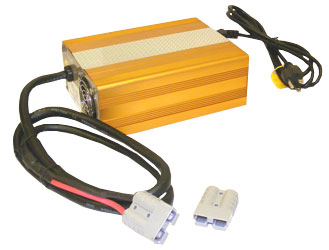

The Smart Charger is designed for charging 20Ah - 100Ah 25.6V (8 Cells) LiFePO4 battery pack.

Features:

• INPUT
  • AC input voltage 90 to 130 VAC, single phase
  • Input frequency 47 to 63 Hz
  • Efficiency 72% (min) at rating power, 115Vac 60Hz
• OUTPUT
  • Charging terminal : 4' long 8AWG wire 1.9" x 1.5" x 0.6" Standard Anderson connector
  • Anderson plug dimension (LxWxH) 1.9"(48.0mm) x 1.5"(38.0mm) x0.6"(15.0mm)
  • Included 1 pcs 1.9" x 1.5" x 0.6" Standard Anderson connector without use.
    • In order to match up the charger's connector, you may connect the battery pack charge terminal with Included 1 pcs 1.9" x 1.5" x 0.6" standard Anderson connector.
    • Make sure the charge DIY wire will be acceptable for 15A max charge current.
• CHARGE
  • CCCV (Constant Current Constant Voltage) charging mode
  • Cut-off voltage, 29.6VDC
  • 15A current max.
  • The battery range is between 20Ah to 40Ah
  • Reverse polarity protection
  • Short circuit protection
  • No trigger voltage requirement
  • Built in cooling fan to ensure charger long service life
• PYSICAL:
  • Dimension (LxWxH) 8.3"(210mm)x6.9"(174mm)x3.0"(76mm)
  • Weight: 5.2 lbs (2358grams)
• DETAILED SPECIFICATION:
  • Please click here to download specifications

Warnings:

• Wrong polarity will damage the charger. SuperDroid Robots is responsible for the damage or losses caused by misusing.  Review our terms prior to purchasing.
• Only charge LiFePO4 battery pack with capacity > 20Ahr. Don't use the charger for lower capacity LiFePO4 battery pack.  Check with battery manufaturer prior to use..
• Only charge LiFePO4 battery pack with voltage 25.6V (8 cell pack). Don't use the charger for Lower voltage battery pack which may cause battery to explode.
• SuperDroid Robots is not responsible for any damage caused by misuse.
• Must read before place an order.
• We reserve the right to not sell the battery to any one if we feel they cannot handle battery safely
• For safety warning please see the link here
