AstroFlight 112 Deluxe Charger/Discharger

Category
NiMH and NiCad Chargers for robot kits.
Category List
AstroFlight 112 Deluxe Charger/Discharger
Item Details
AstroFlight 112 Deluxe Charger/Discharger
Item Name:
AstroFlight 112 Deluxe Charger/Discharger
Item #:
TE-073-112
Your Price:
$144.00
In Stock!
Quantity:

Description:

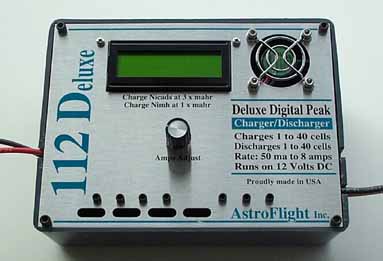

This charger replaces the AstroFlight 110D. This Deluxe Digital Peak Charger/Discharger can charge any 2 to 40 cell Nicad or Nimh pack, from the tiny 50 mahr cells to giant 9,000 mahr cells. The 112 can also discharge these packs and measure their milliamp-hour capacity. Works from 12vdc. You can plug it up to a car battery (NOT a car battery charger though), or you can use our 100W 12V supply that runs from 115VAC.

The source side of the charger has about 40" long 13 Gage wires with aligator clips for connecting to your 12V source. The charging end is 13 Gage ~8" long with plug. We also include the matching connetor so you can make a jumper to go you your battery.

Specifications:

Cell Types Nicads and NIMH
Minimum Cells 1 cell
Maximum Cells 40 cells
Maximum Charge rate 9 amps
Minimum Charge rate 50 ma
Charge Time cut off 10 hours
Discharge Rate 1.25 amps
Discharge cut off 70% of initial voltage
Current Display 50 ma to 8 amps
Voltage Display 0 volt to 80 volts
Charge time Display hrs, min and seconds
Milliamp hour Display 0 to 9,999 milliamp hours
Supply Voltage 12 to 15 volts
Supply Current 0.1 to 18 amps


The Astro 112D Digital Peak Charger/Discharger can charge any 2 to 40 cell Nicad or NiMH pack, from 50 mahr cells to 9,000 mahr cells. The 112 can also discharge packs and measure milliamp-hour capacity. Works from 12VDC.  Includes matching connector!
