HSR-5980SG HMI High Torque Robot Servo

Category
RC Servos
Category List
HSR-5980SG HMI High Torque Robot Servo
Item Details

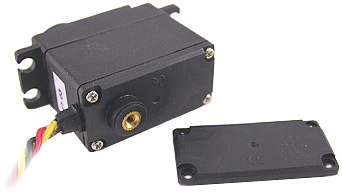

HSR-5980SG HMI High Torque Robot Servo
Item Name:
HSR-5980SG HMI High Torque Robot Servo
Item #:
TD-086-000
Your Price:
$109.99
In Stock!
Quantity:

Product Image Gallery:

Description:

This servo raises the bar when it comes to servo technology. The performance is staggering for a servo this size. Right out of the box, this servo operates a full 140° (full trims). A full set of steel gears offers 30 times the strength of nylon gears. Each gearset shaft rides in bronze bushings for durability and strength. It's and expensive servo, but you definitely get what you pay for - you will be impressed!

  • Programmable Digital Amplifier with Mosft Drive
  • Durable Steel Gears with Dual Ball Bearing
  • Ultra Hardness Shaft with 2 Axial Metal Bushing
  • Water & Dust Tight
  • Bottom Side Axial Mount Hole

Specifications:

Motor Type: Coreless
Bearing Type: Dual Ball Bearing
Speed (6.0V/7.4V): 0.17 / 0.14 sec @ 60 deg.
Torque oz./in. (6.0V/7.4V): 333 / 417
Torque kg./cm. (6.0V/7.4V): 24.0 / 30.0
Size in Inches: 1.57 x 0.78 x 1.45
Size in Millimeters: 39.88 x 19.81 x 36.83
Weight oz.: 2.46
Weight g.: 69.74


This servo raises the bar when it comes to servo technology. The performance is staggering for a servo this size. It's and expensive servo, but you definitely get what you pay for - you will be impressed.
