4-pack of Axis Nema 34 Stepper Motors 740 oz.in (USED)

Category
Used and Surplus Items
This group of products are used items or prototypes of items that we no longer use. We have discounted them for great deals. Keep Checking back to this category as we add items.
Category List
• Specials
Specials
 4-pack of Axis Nema 34 Stepper Motors 740 oz.in (USED)
Item Details
Item Name:
4-pack of Axis Nema 34 Stepper Motors 740 oz.in (USED)
Item #:
U-071-034
Your Price:
$600.00  $399.95
We're sorry, this item is currently out of stock.

Overview

These motors are slightly used and part of a bundle that features five motors, four motor drivers, and a breakout board. We are selling this as a four pack with an additional motor thrown in since it does not have an associated motor driver.

Included

  • Nema 34 stepper motor with 740oz.in (Bipolar) (qty 5)
  • Stepper motor driver D2HB882MB, 8.2A,16micsteps (qty 4)
  • Breakout Board (qty 1)

Stepper Motor Specifications

Model Step Angel Motor Length (mm)

Rate Voltage (V)

 Rate Current (A) Phase Resistance (Ω) Phasse Inductance (mH) Holding Torque (oz.in) Lead Wire (NO.) Rotor Intertia (kg. c?) Motor Weight (kg)
34HD9416-30B2 1.8 97 6.27 1.65 3.8 24 740 4 2.2 2.9

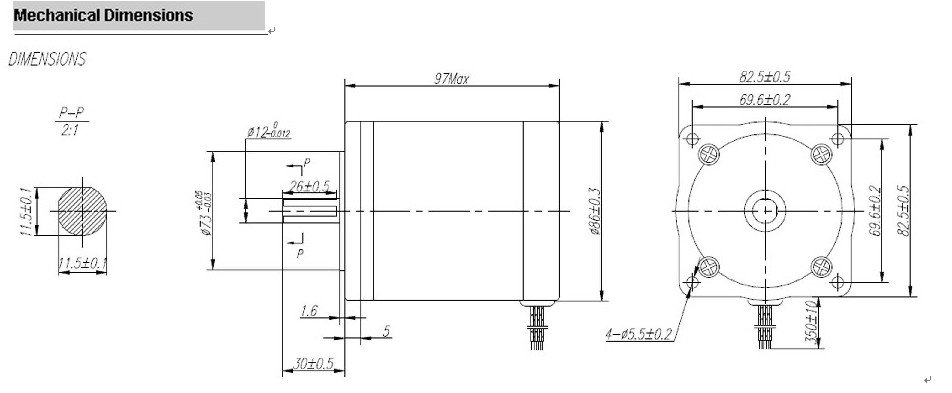

Stepper Motor Dimensions


Stepper Motor Driver Specifications

The D2HB882MB is an economical microstepping driver based on patented technology of Longs Motor.It is suitable for driving 2-phase 4-phase hybrid stepping motors .By using the advanced bipolar constant-current shopping technique ,it can output more speed and torque from the same motor,compared with traditional drivers ,such as L/R drivers .Its 3-state current control technology allows coil currents to be well controlled and with relatively small current ripple,therefore less motor heating is achieved.

Low cost and good high-speed torque 14 selectable resolutions
Supply voltage up to +80VD Suitable for-2-phase and 4-phase motors
Output current up to 8.2A Dip switch current setting 8different values
Optically isolated input signals Pulse frequency up to 200KHz
Automatic idle-current reductiOn Small size (107*97*48),Weight:1KG


Breakout Board Specifications

  • Built in DB25 male connector
  • DB25 Output Pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17
  • DB25 Input Pin: P10,P11,P12,P13,P15
  • DB25 GND Pin: P18-P25
  • Power supply: +5V DC
  • Built in C-class Optical-coupler
  • High quality with Surface-mount Tech
 These slightly used stepper motors work perfectly in a CNC Router/Mill. You get 4 motors with motor drivers and we threw in an additional motor with no motor driver.
