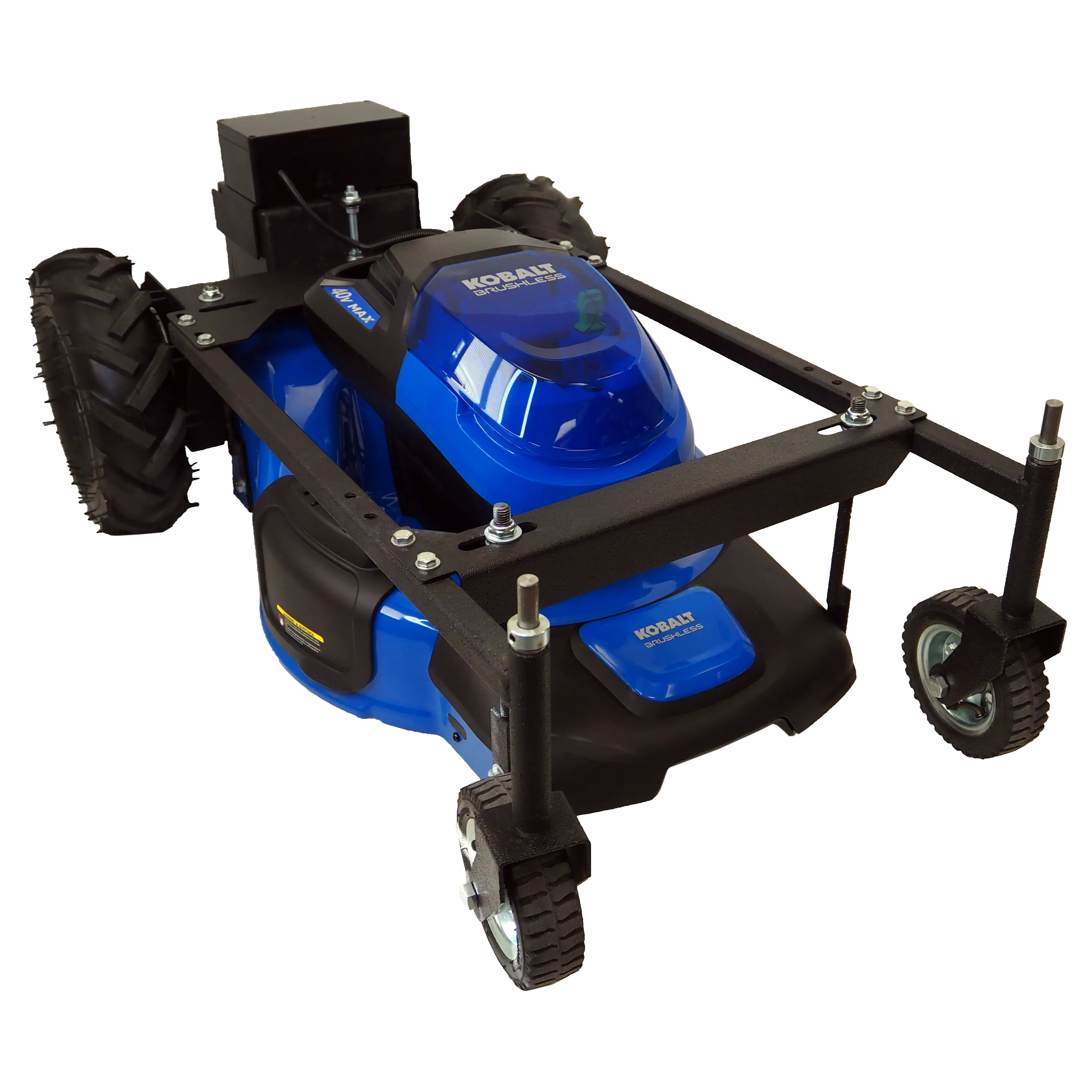

Remote Control Slope Electric 25 inch Lawn Mower - 4WD
The gallery displays different options for this robot.Standard Configuration
- The robot weighs 170 lbs with motors, batteries, and lawnmower.
- Steel Frame Robot Chassis for a 25" deck.
- 13" pneumatic drive wheels.
- PCS-250 24VDC 75 RPM Wheel Chair Motor (Qty 4).
- 2x60 Motor controller (Qty 1).
- 12V 35Ahr SLA batteries (Qty 2).
- Battery charger.
- Painted black.
- 60-volt Cordless Electric Lawnmower batteries and battery charger included.
- Remote start and stop of electric mower included!
- Fully assembled.
- Specifications:
- Drive Method: Direct Drive.
- Axle Mount: Direct Mount (DM) - the axles are mounted directly to the motor shaft.
- Speed: ~3 mph (75 RPM motors and 13" wheels).
- Dimensions (LxWxH): 40 x 29 x 16 inches.
- Runtime: Up to 1 hour per charge.
Media
Documentation
- CAD Drawing (Coming Soon)
- Operational Manual
Delivery
- This item is Built to Order 2-4 Weeks.
- Due to the size of this item, freight shipping is required. We will contact you after checkout with freight costs and arrangements.

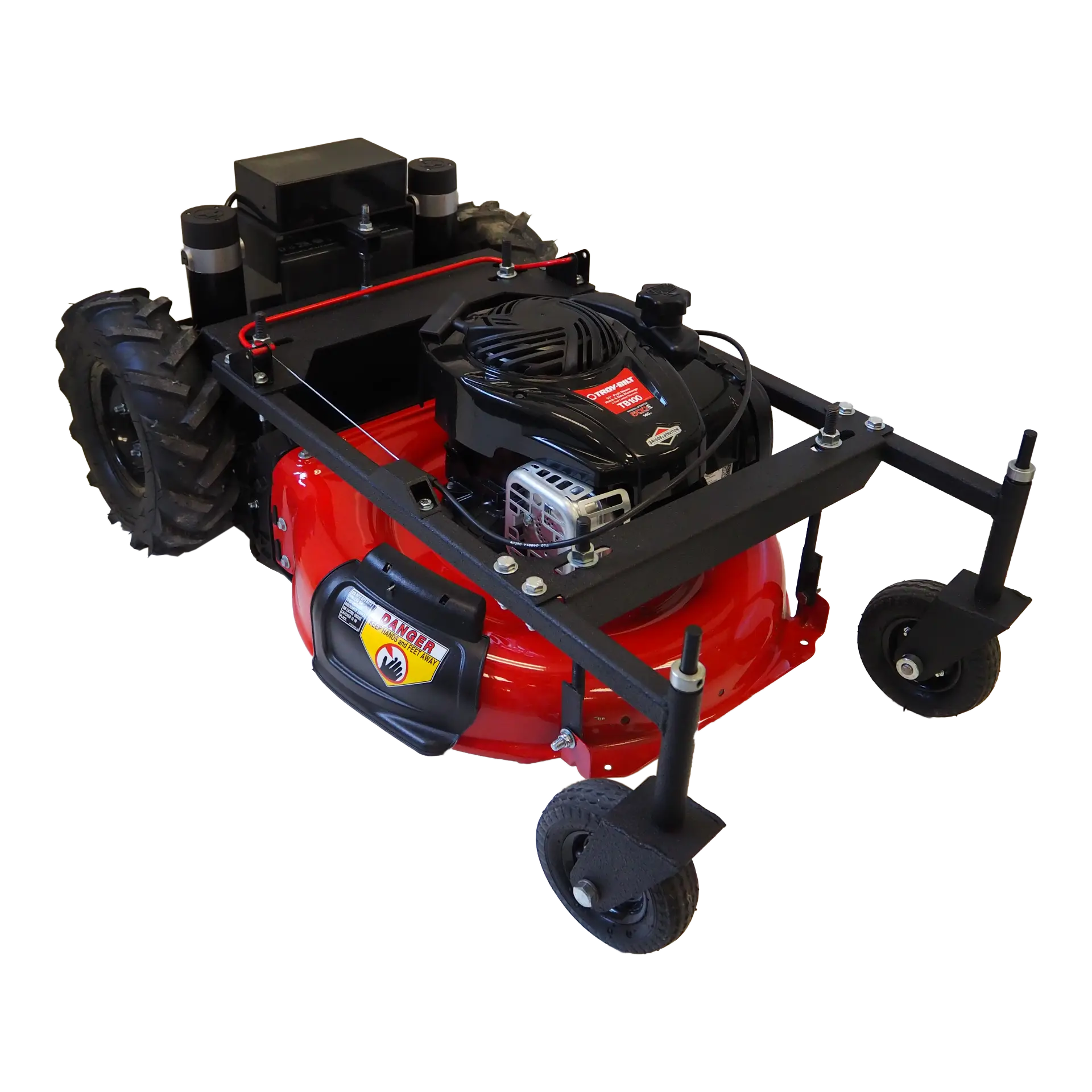

This a robot similar to our Lawn Mower Chassis Upfit Robot Package - WheelChair Motor System. The robot is being sold in the configuration listed below. The robot is fully assembled, tested and is ready to run. For a customized configuration please fill out our Custom Robot Request Form.
The robot is driven by the provided 13-inch tires and heavy-duty wheelchair motors. The 4WD system allows the mower to climb steep slopes and terrain. This mower is faster, more powerful and has a longer run time than our previous 4WD mower. This slope mower can handle steep hills and inclines up to 38 degrees. It uses a double-bladed 25-inch wide deck for mowing. The electric mower means oil distribution on slopes won't be an issue.
The frame of this robot is made from tube steel and heavy gauge steel cut on our CNC plasma table. It is welded together in a jig we set up so the lawnmower inserts into the frame using the existing wheel mounts, which also lets you set the height of the deck. 75 RPM motors provide the mower with more power for ascending slopes.
Remote Control Slope Electric 25 inch Lawn Mower - 4WD
- Product Code: TP-262-000
- Brand: SuperDroid Robots
- Availability: Built to Order 2-4 Weeks
- This item does not qualify for free shipping
$8,148.00
