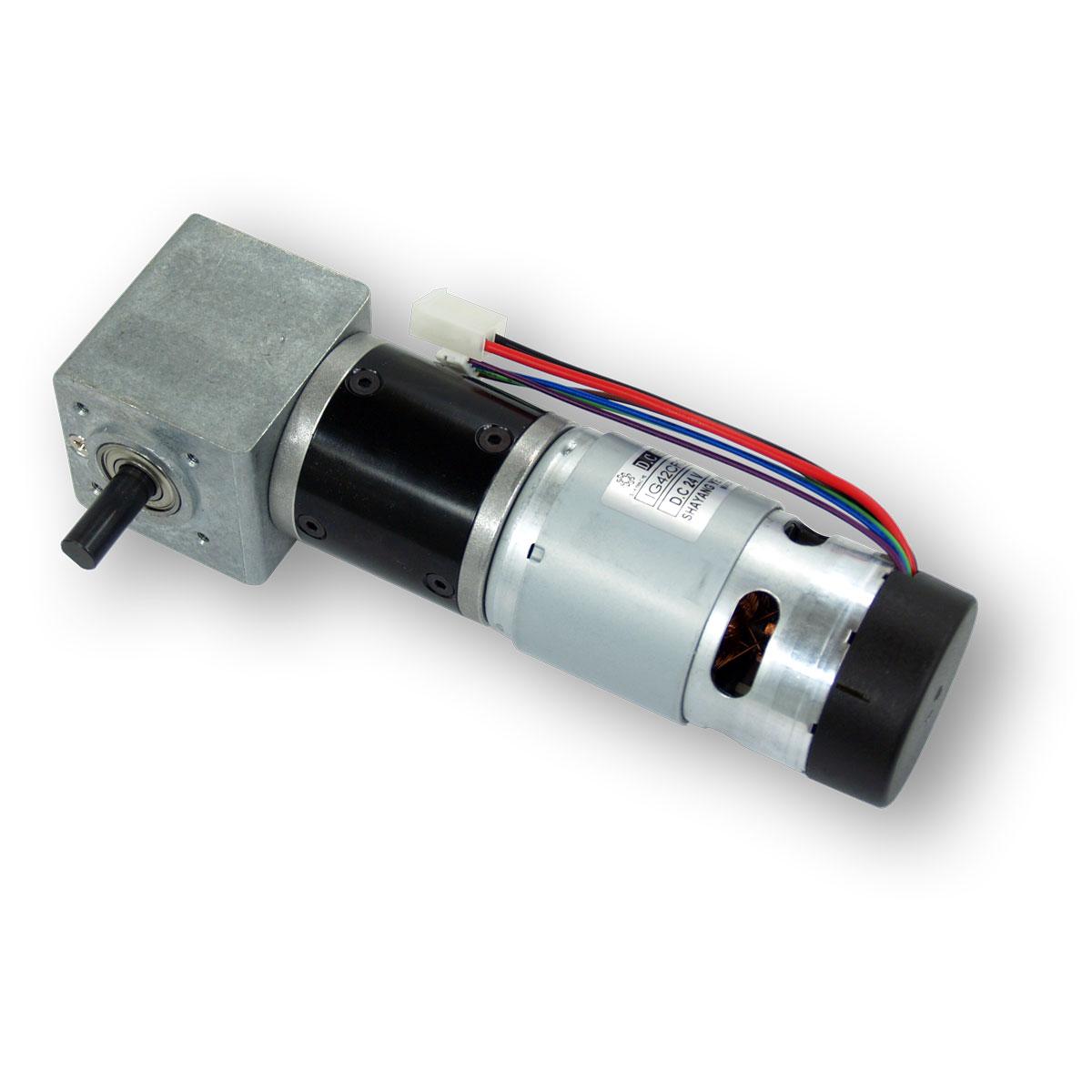

IG42 24VDC Right Angle 078 RPM Gear Motor with Encoder

Features and Specifications

These specifications are listed with the "rated" values (these are the values where the motor runs at peak efficiency). The motors can deliver considerably more than their rated values, refer to datasheet for more information.

  • 24VDC
  • Reduction Ratio: 1:84
  • Right Angle Spiral Bevel Gearbox Ratio: 1:1 (reversible and allows back drive)
  • Rated Torque: 18 kg-cm
  • Rated Speed: 77.5 RPM
  • No Load Current: < 500 mA

Encoder Interface

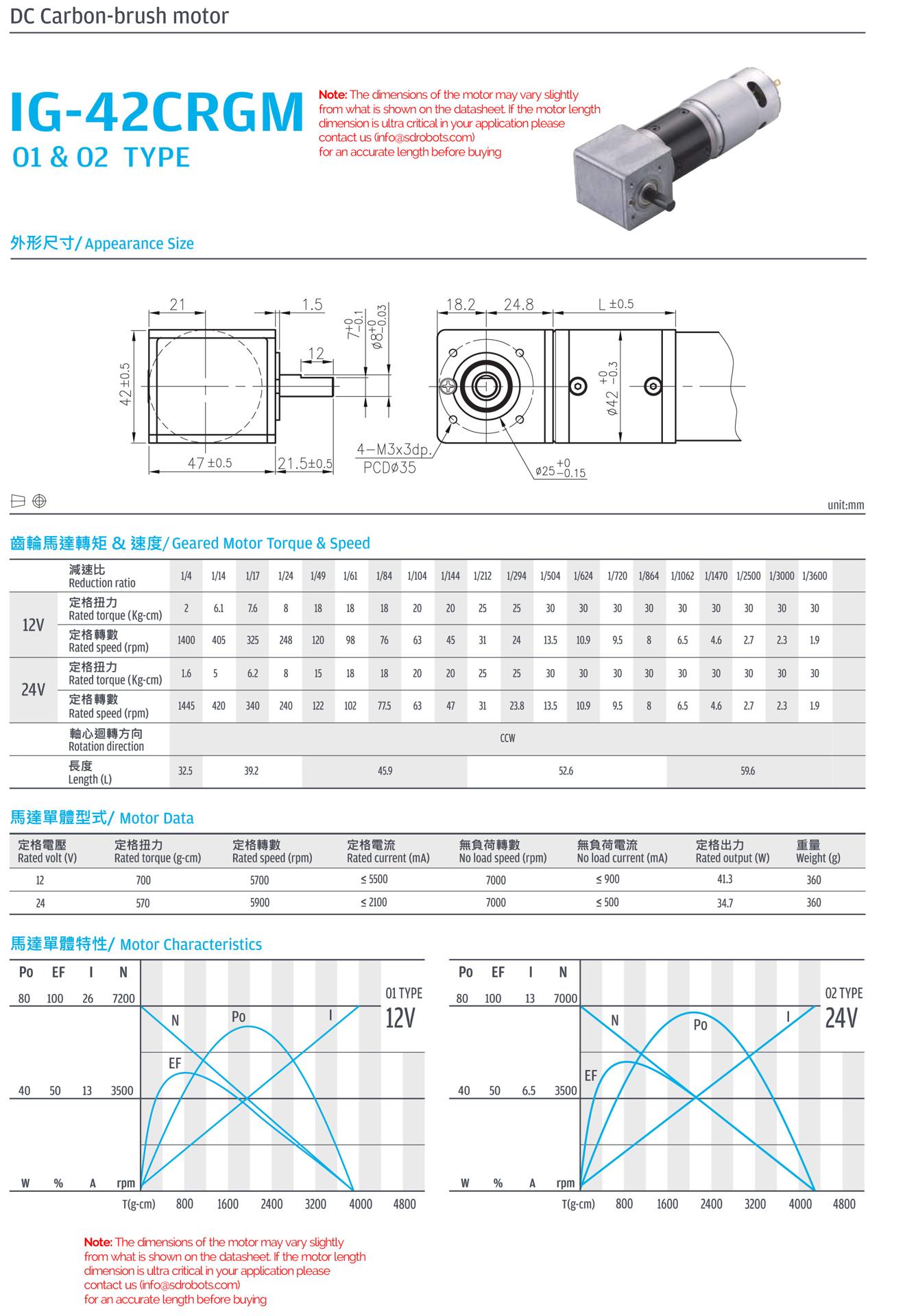

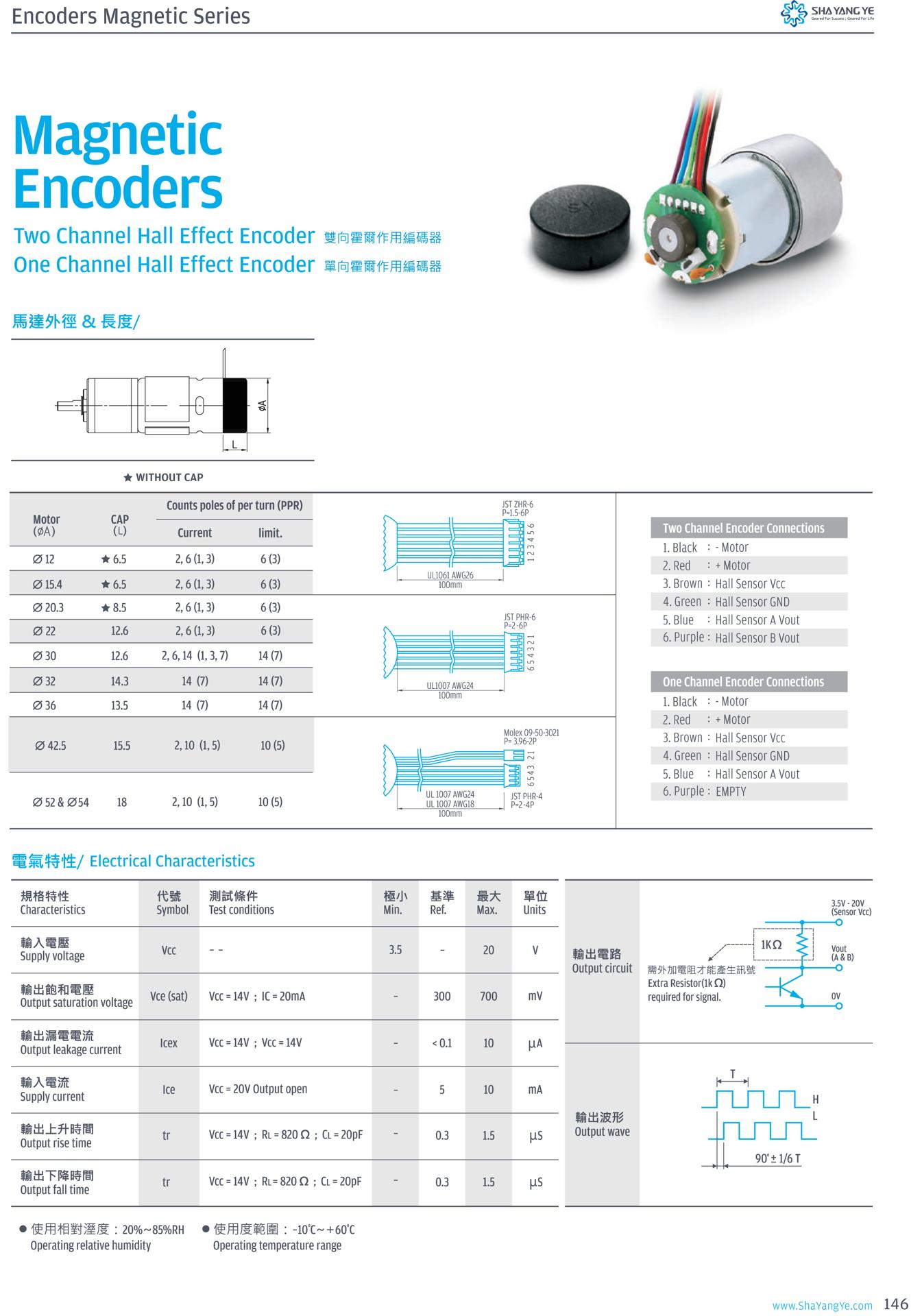

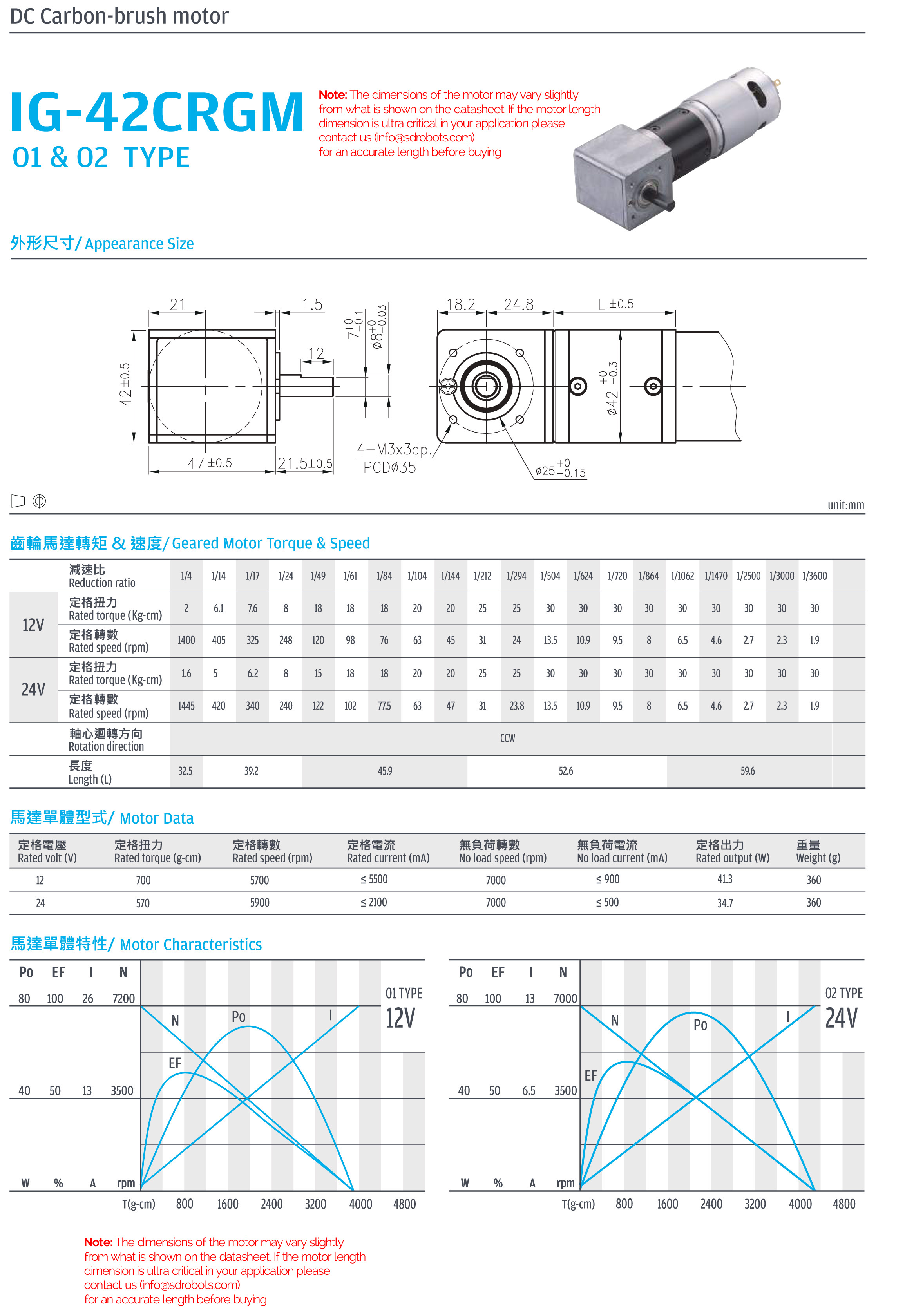

  • Dual Channel/Quadrature Encoder mounted to tail shaft of motor. See datasheet in image gallery. (Each channel requires a 1k pull up resitor to Vcc as shown on datasheet.) This pull up board can be used in-line, providing the required pull-ups to Vcc for channel A and channel B.
  • Our LS7366R Breakout Board allows you to easily interface with the encoders over SPI. The breakout board comes with the necessary 1k pull up resistor to interface with the motors.

Recommendations

We recommend controlling the motors with one of our motor speed controllers. See our motor controller support page for more information. We also recommend you use our wiring kit to wire your motors. The hookup kit will help suppress the electronic noise generated from any DC motor. See our motor wiring support page for more information.

  • Brushed permanent magnet DC motor
  • Variable speed and reversible

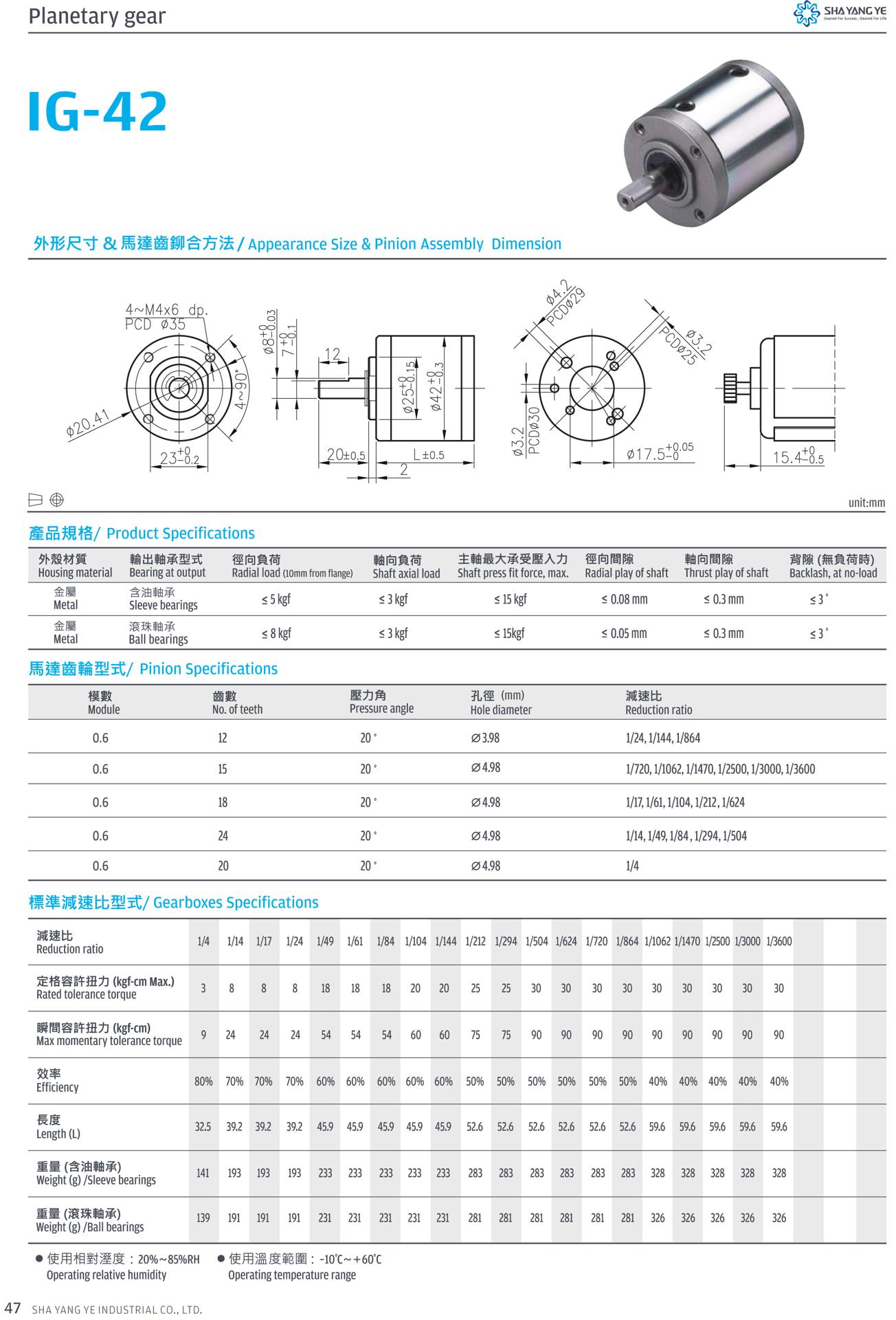

  • Planetary Gear Box
  • Final drive stages are steel gears (not plastic or sintered metal)
  • Tested extensively on our All-Terrain-Robots
Need a chain drive? Check out our selection of Chains and Sprockets including our D-Shaft Sprockets made specifically for these motors.


IG42 24VDC Right Angle 078 RPM Gear Motor with Encoder

  • Product Code: TD-154-078
  • Brand: Shayang Ye Industrial Co., Ltd.
  • MPN: IG42CR0084X00021R
  • Availability: Currently 3 available. Limit 12 per customer Contact us for higher quantities.
  • $130.06
