Features and Specifications

  • Wheels: 4 (2 left, 2 right)
  • Diameter: 203mm(8 inch)
  • Width: 78mm (3.07 inch)
  • Number of Rollers: 12 x 4
  • Number of Plates: 2 x 4
  • Body material: Stainless steel
  • Roller material: Polyurethane
  • Spacer material: Aluminum
  • Length of roller: 67mm (2.64 inch)
  • Net weight: 2.4kg x 4
  • Load capacity: 200Kg (50kg per wheel)

Available Options

Several wheel hub options are available for you to select from below.

Plain Text (no formatting) or HTML

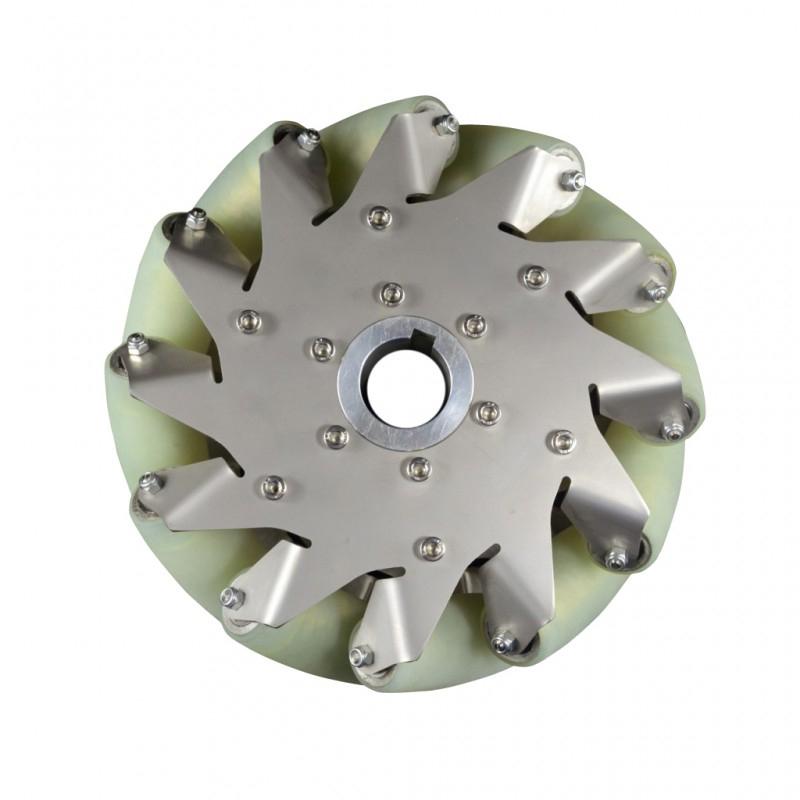

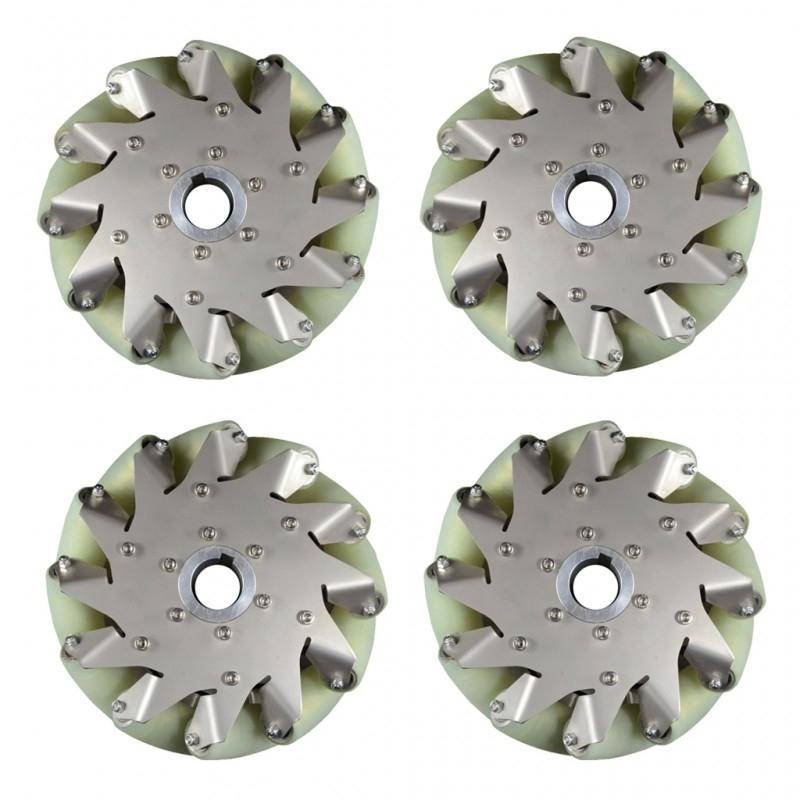

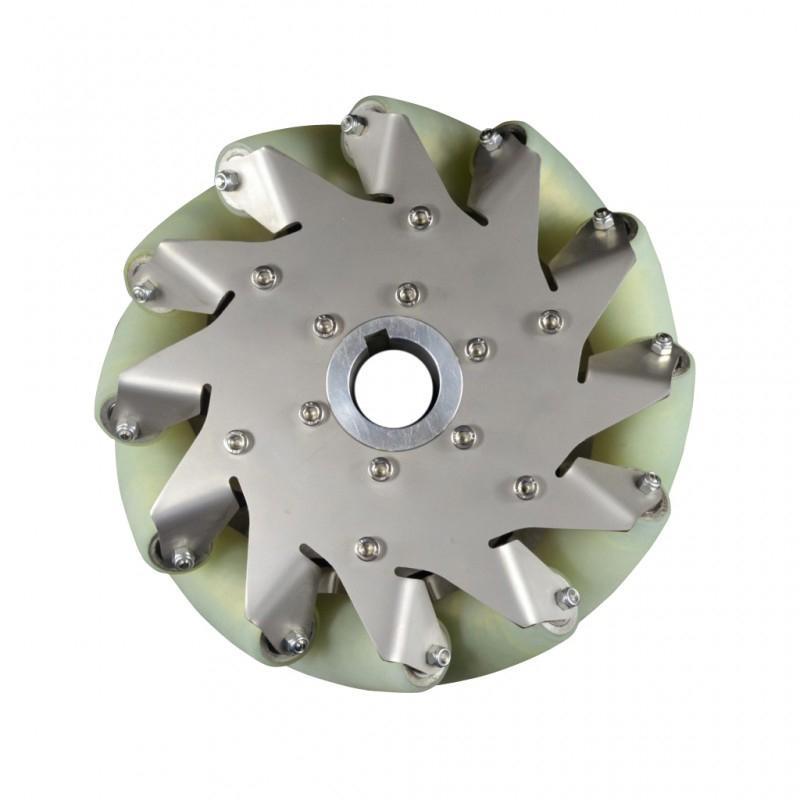

The 203mm Stainless Steel Mecanum wheel is a heavy Duty wheel. This (8 inch) 203mm Stainless Steel Mecanum wheel includes 2 Left and 2 Right wheels. Each wheel is comprised of 12 polyurethane rollers, these rollers have an axis of rotation at 45 to the plat of the wheel in a plane parallel to the axis of rotation of the wheel. As the wheels rotate in sync, the vehicle moves forwards or backwards normally, but by spinning pairs of wheels in opposite directions, the rollers enable sideways movement. put it all together, and you can move laterally, diagonally, or spin in a circle.

8 inch Nexus Robot Stainless Steel Mecanum Wheels with 8 PU Rollers – Set of 4

  • Brand: Nexus
  • Product Code: TD-168-203
  • MPN: 14178
  • Availability: Special Order 2-6 Weeks
  • $954.00
