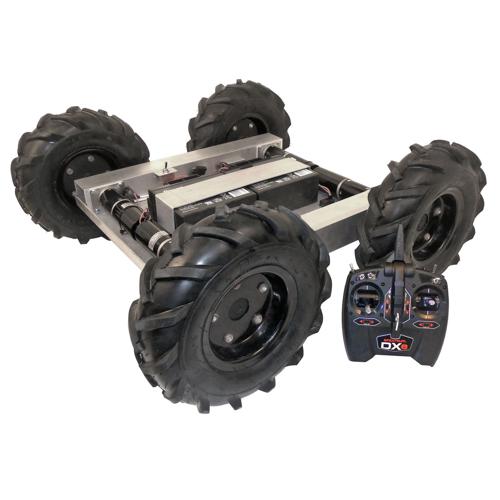

Prebuilt 4WD IG52 - SB Custom Length Assembled Robot with 13 inch Tires - SOLD
- (Qty 2) Custom Length IG52 ATR Side (modified and bolted to chassis)
- (Qty 2) ATR Wheel and Shaft Set Pair IG52- 13 inch pneumatic
- (Qty 1) 1/8" Thick Custom Aluminum Base
- (Qty 4) IG52 24VDC 82 RPM Gear Motors
- (Qty 1) Sabertooth Dual 25A Motor Driver
- (Qty 1) Spektrum Transmitter and Receiver 2.4GHz
- (Qty 1) Automatic 24V 4A Three Stage Battery Charger
- (Qty 2)12 Volt 18Ah Sealed Lead Acid Battery (run in series for 24V)
- (Qty 4) Electric Motor Hookup Kits
- (Qty 1) Electric Power Hookup Kit
- (Qty 1) Hardware and Electrical
- (Qty 1) Assembly and Testing
- Specifications of this prebuilt configuration:
- Axle Mount: Single Bearing (SB) - the axles are mounted to the motors and one sealed ball bearing.
- Speed: 3 mph
- Dimensions (LxWxH): 31.5" x 29.5" x 13"
- Weight: 86lbs.
- Capacity: Payload of approximately 75-100lbs.
Documentation and Support
- This robot is pre-built, please allow 1-2 business days to prep the robot for shipment.
- Due to the size and weight of this robot it will have to ship freight.
- Contact us if you need expedited delivery.
This is a prebuilt RC Custom Length All Terrain Robot Kit that has all the main features to get you going. Ready to ship, fully assembled and ready to run. The robot is configured as listed below. If you desire a custom configuration please follow this link and select the options at the bottom of the page. If you require further customization, please fill out our custom robot request form.
This is a prebuilt robot that uses custom length sides and 13-inch tires. We have included everything to make it ready to run including batteries, controllers, chargers, etc.
