Description:

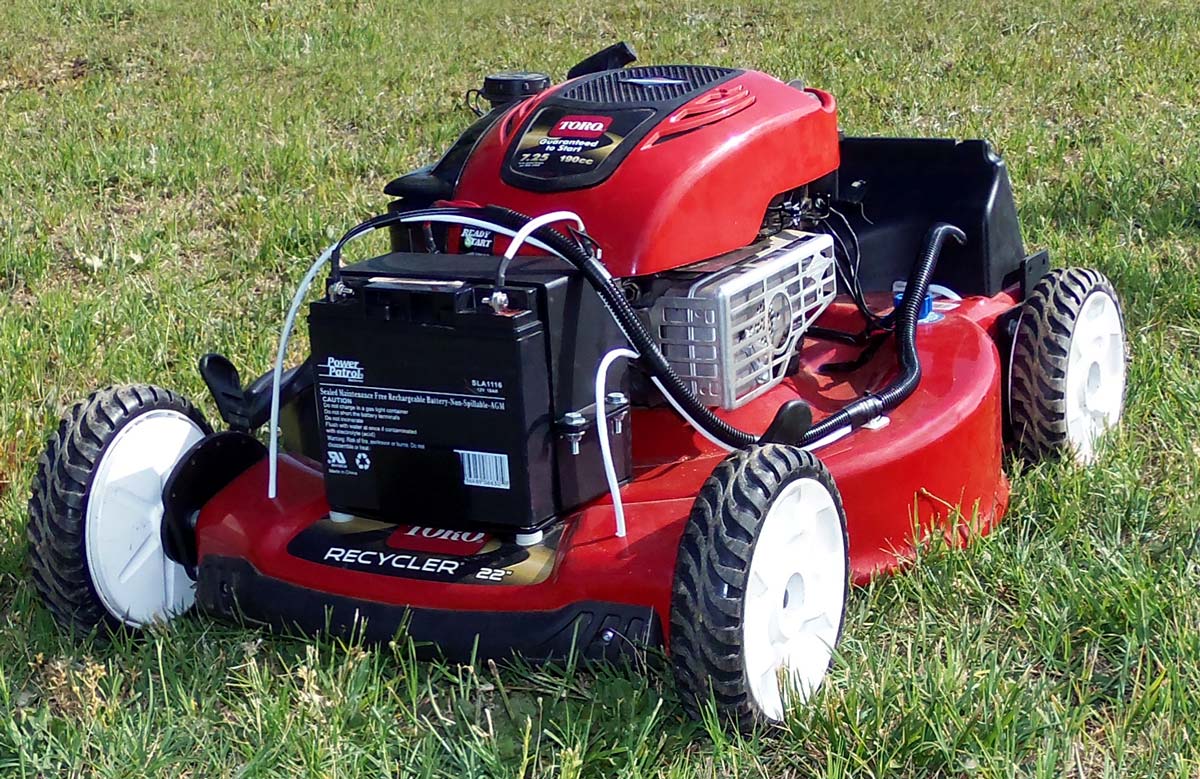

This robot converts a Toro Recycler 22" Lawnmower into a robot that can be driven with remote control or, for the adventurous, made to cut the lawn autonomously. This lawn mower features 4WD and can be used with the bagger if desired.

The robot consists of custom wheel plates that allow heavy duty IG52 motors to be mounted inside of the lawnmower chassis. The wheel plates incorporate Toro's original height adjustment design. The front two motors drive a pinion which drives the wheel while the rear motor drives a chain which drives the pinion, then driving the wheel. The chain drive in the rear allows room to use the bagging system if desired.

This Configuration:

• IG52 24V 285RPM gear motors. (Qty. 4)
• 2x25 Motor controller (Qty 1)
• 12V 18Ahr SLA batteries (Qty 2) for a runtime of approximately 2-3 hours
• Spektrum DX6 remote
• Spektrum AR9020 Receiver with failsafe system
• Remote Start and Kill Switches integrated into the DX6 remote
• Battery charger
• The lawnmower is included and the robot comes fully assembled

Looking to extend the functionality of this robot? We have a comprehensive line of Programable controllers including Arduino Products and Sensors including GPS, LIDAR, etc. that can be added to this platform for additional functionality to make this robot autonomous!

Documentation and Support:

• A complete manual is provided at the time of purchase.

Delivery:

• This item is built to order and usually ships within 2-4 weeks depending on volume.
• This item requires freight shipping. Freight shipping is not calculated by our shopping cart. We will contact you after placing the order to go over your options or you may Contact Us for a quote.
• Need it faster? Contact us
