 5V 1A Switching Voltage Regulator
Item Details
5V 1A Switching Voltage Regulator
Item Name:
5V 1A Switching Voltage Regulator
Item #:
TE-092-005
Your Price:
$15.00
Not Available
Quantity:

Description:

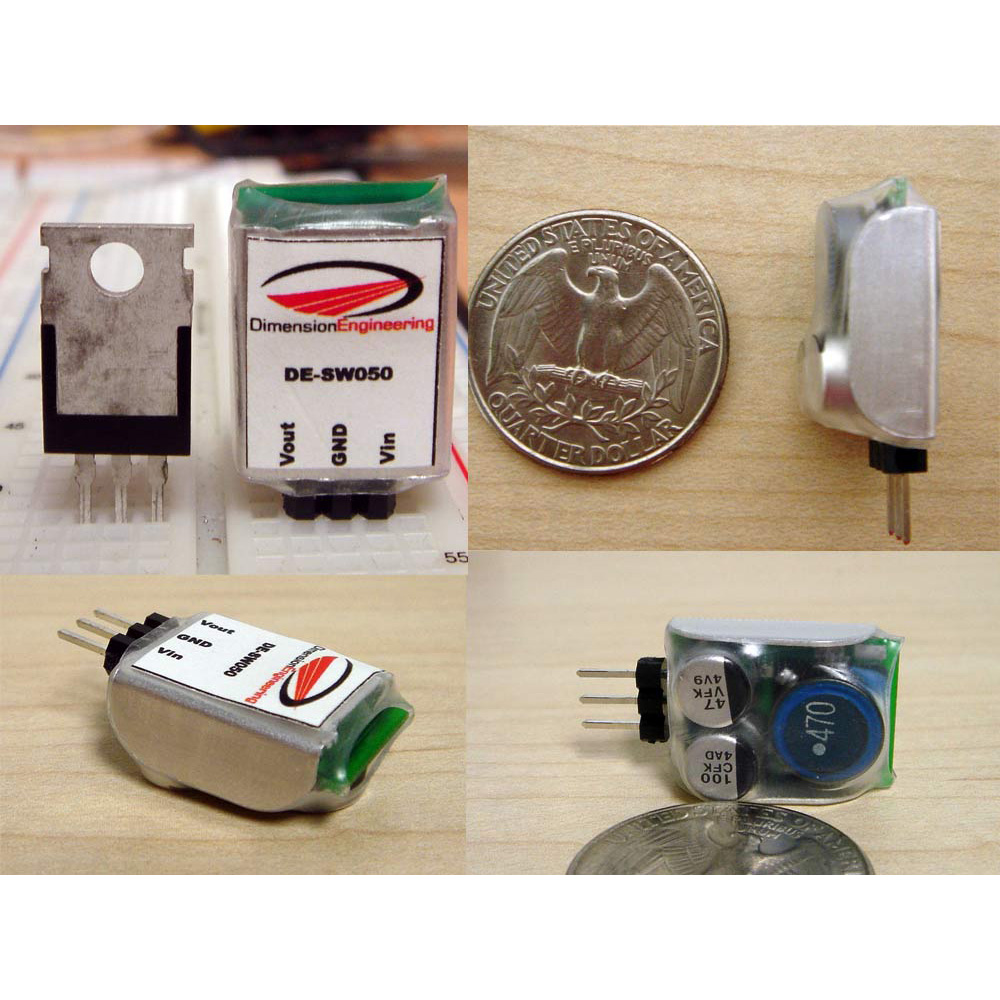

This switch mode voltage regulator made by Dimension Engineering is designed to be the easiest possible way to add the benefits of switch-mode power to a new or existing project. The switching regulator will allow you to take a higher voltage and it step down a 5V output in a compact, efficient manner. They have integrated decoupling capacitors, so external capacitors are not generally necessary. The switching regulator is pin-compatible with the common 78XX family of linear voltage regulators used in TE-045-005.

We also offer this voltage regulator in a board layout.

Features and Specifications:

  • Model:
    • DE-SW050
  • Performance:
    • Up to 30V input range
    • 83% typical efficiency, up to 87%
    • >2% ripple
    • 1A output (continuous)
    • 1.25A peak output (1 min)
    • 1.3V typical dropout voltage at full load
    • Can be put in parallel
  • Applications:
    • Battery powered applications
    • Robots
    • Point of load voltage regulation
    • Electronics prototyping
    • Any application where a linear or LDO regulator is dissipating too much heat or a large heatsink is undesirable

Documentation and Support:


 The Dimension Engineering DE-SW0XX family of switch mode voltage regulators are designed to be the easiest possible way to add the benefits of switch-mode power to a new or existing project.
