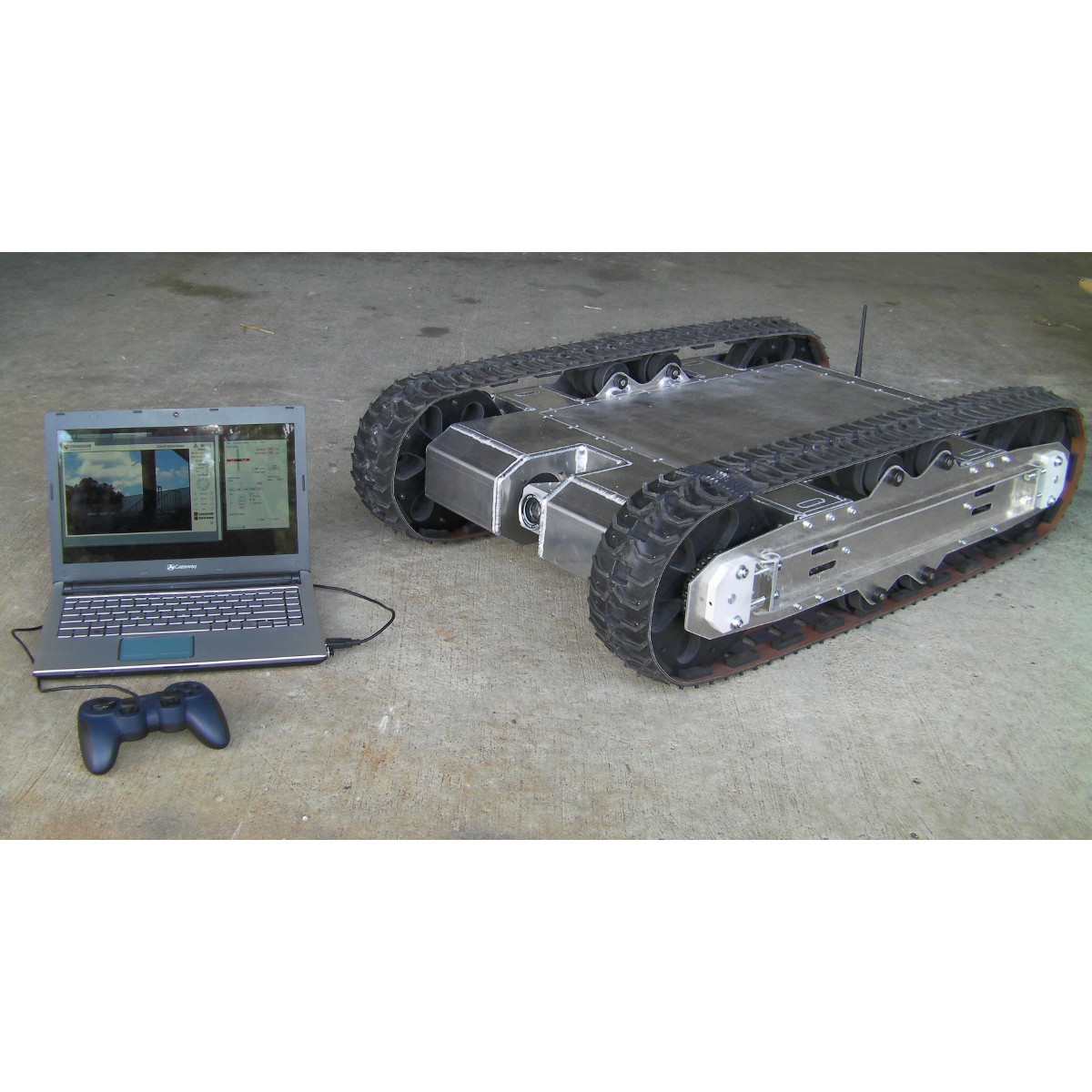

HD2 Robot with WiFi Control and 27x Zoom Tilt Nose Camera

Description:

SuperDroid Robots has built many custom Wi-Fi HD2 robots; we have combined the most common requests and come up with this standard Wi-Fi package.

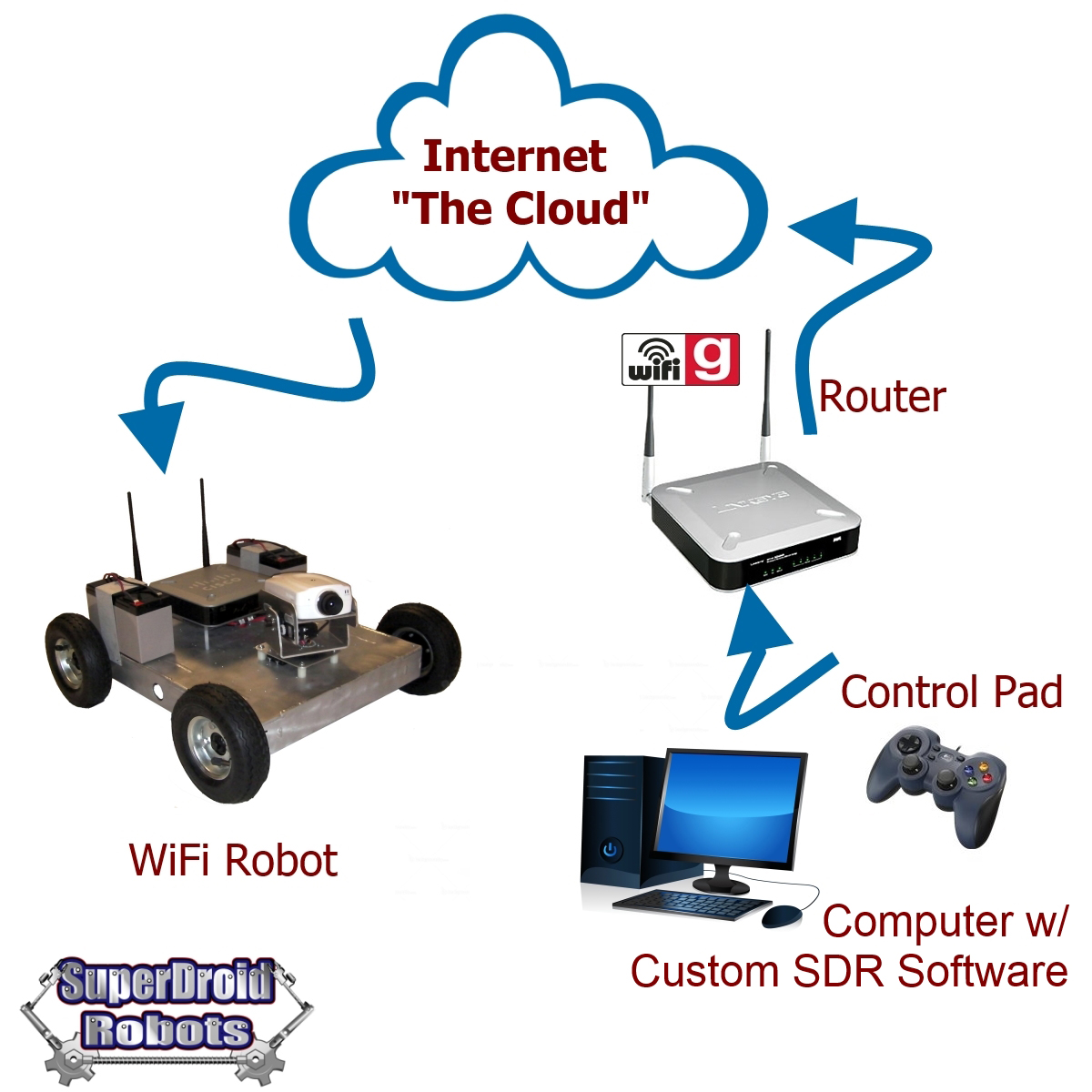

This robot kit comes with everything you need including the charger. All you need is a PC with windows XP, Vista, Windows 7 or Windows 8 that is connected to a wireless network or a PC with a wireless network card and you can set it up peer to peer as an Ad Hoc network. When you receive the robot you will need to configure the wireless bridge, iPocket232, and video server to your network. Instructions for doing this are provided with the robot.

Applications:

Low Clearance Inspection - Weatherproof chassis designed to go where other robots can't.
Tracked Robot for climbing stairs and obstacles - The tracked design allows this robot to climb over most obstacles and go up and down most stairs.
Remote Surveillance - The tilting 27X camera with zoom feature allows the viewer to see everything.
Hostage and hazardous surveillance - Survey hostile/hazardous situations staying out of harm's way.
Clearing rooms remotely - Clear rooms and buildings remotely with audio and video surveillance.

Standard Configuration:

This robot comes with the recommended and most popular set up. It is 39" X 26" X 10.75". By changing, adding or removing features at the bottom of this page you can configure the robot to suit your needs and budget.

Batteries: Qty 2: K2 25.6V LiFePO4 Battery Pack 9.6Ahr.
Motor Controllers: Sabertooth Dual 25A Motor Driver.
Chassis: HD2 Treaded ATR Tank Robot Platform.
Motors: (4) IG52-04 24VDC 285 RPM Gear Motor.
Camera System: 180 degree tilting 27X Optical Zoom 1/4 inch Sony Color CCD.
Video Server: Eurovision EV3151A Video Server with 2 way Audio.
Battery Charging: Qty 2: Smart Chargers/a>

Wi-Fi Interface: WiFi Custom Control Interface Package.
Assembly: The entire robot will be assembled, configured, tested, and supported by our professionally trained staff here in NC.

Available Options:

(Selected Below)

Programmable Option: We offer the option to add a Arduino Mega and SDR Mega Shield to all you modify the program and control the robot yourself. All source code will be provided including the .NET application to control it from the computer. Otherwise you can select our standard controller, which has our custom control board and it not programmable. Either system will come fully programmed and assembled.
Encoder Control Upgrade Package: With this upgrade will will replace two of the gear motors with encoder gear motors. The encoders will be read by the control board and the distance the robot has traveled will be reported back to the WiFi control program. With the encoders and gear reduction, the resolution is about 100 counts per inch.
Painted Chassis: We prep the chassis and paint it flat black with a bed-liner spray for a durable finish.

Documentation and Support:

Delivery:

This robot is built to order based on the options selected below. Please allow 3-6 weeks for shipment.
Actual delivery may vary based on workload, contact us for a more accurate delivery time.
This item does not qualify for free shipping.
Contact us if you need expedited delivery.

Video:

Item Options - Customize

Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.

*If you want to make the robot programmable with a Arduino Mega and a SDR Shield and all source code, select this option. Otherwise it will not be programable and will come with standard controls.

Standard Controller (non programmable)

Programmable Option with Arduino Mega (Add $379.00)

*Replace two of the gear motors with encoder gear motors. The encoders will be read by the control board and the distance the robot has traveled will be reported back to the Wi-Fi control program.

None

Upgrade Custom Control Board to Read Encoders (Add $448.00)

*With this option we will prepare and paint the HD2 chassis.

None

Paint HD2 Chassis (Add $399.00)

Item Price

Adjusted Price

$10,499.95
