The image gallery displays possible configurations of this robot. See description and options below to configure your robot.

Description:

This is our LT2-F Tracked Surveillance Robot with a multi-axis robotic arm. This robot package is complete including the robot, your choice of a controller, battery chargers, and complete assembly and testing. See the LT Support page for more details of the LT Tracked Robot and the Custom Robot Arm Support Page for more details on the arm itself. The pictured robot has a 4-axis arm along with the following available options; aggressive tracks, 27x Optical Camera with Tilt , PA, Microphone, COFDM Tactical Robot Controller and IR camera mounted on the arm (all options available below).

This robot design was developed for Law Enforcement and Military purposes, but can be purchased and used by anyone. The robot can also be customized with HAZMAT sensors, etc., please contact us if you need the robot customized.

Applications:

• Opening Doors - With the Multi-axis arm, things like doors will no longer stop you from surveying potentially dangerous locations.
• Hostage and hazardous surveillance - Survey hostile/hazardous situations staying out of harm's way.
• Clearing rooms remotely - Clear rooms and buildings remotely with audio and video surveillance.
• Remote Manipulation - Pick up or move suspicious objects without putting anyone in harms way.
• Remote Surveillance - The embedded High Resolution IR camera in the nose of the LT enables the user to view from a safe distance even in low light. The additional arm mounted camera provides the perfect angle for operating the robots grip.
• Bomb Disposal - Our UGV (Unmanned Ground Vehicle) is a excellent choice to keep people out of harms way when it comes to bomb diffusing and removal (pipe, pressure cooker, etc).

Standard Configuration:

The LT-F with 4-Axis Arm comes with the recommended and most popular set up. By changing, adding or removing features at the bottom of this page you can configure the robot to suit your needs and budget.

• Platform: The LT2-F with multi-axis arm is our enclosed treaded robot chassis, heavy duty gear motors, motor controllers, tread, batteries, professionally assembled and tested.
• Special Feature: 4-Axis Arm.
  • Shoulder rotation: 180 degrees.
  • Elbow rotation: 140 degrees.
  • Wrist rotation: Continuous

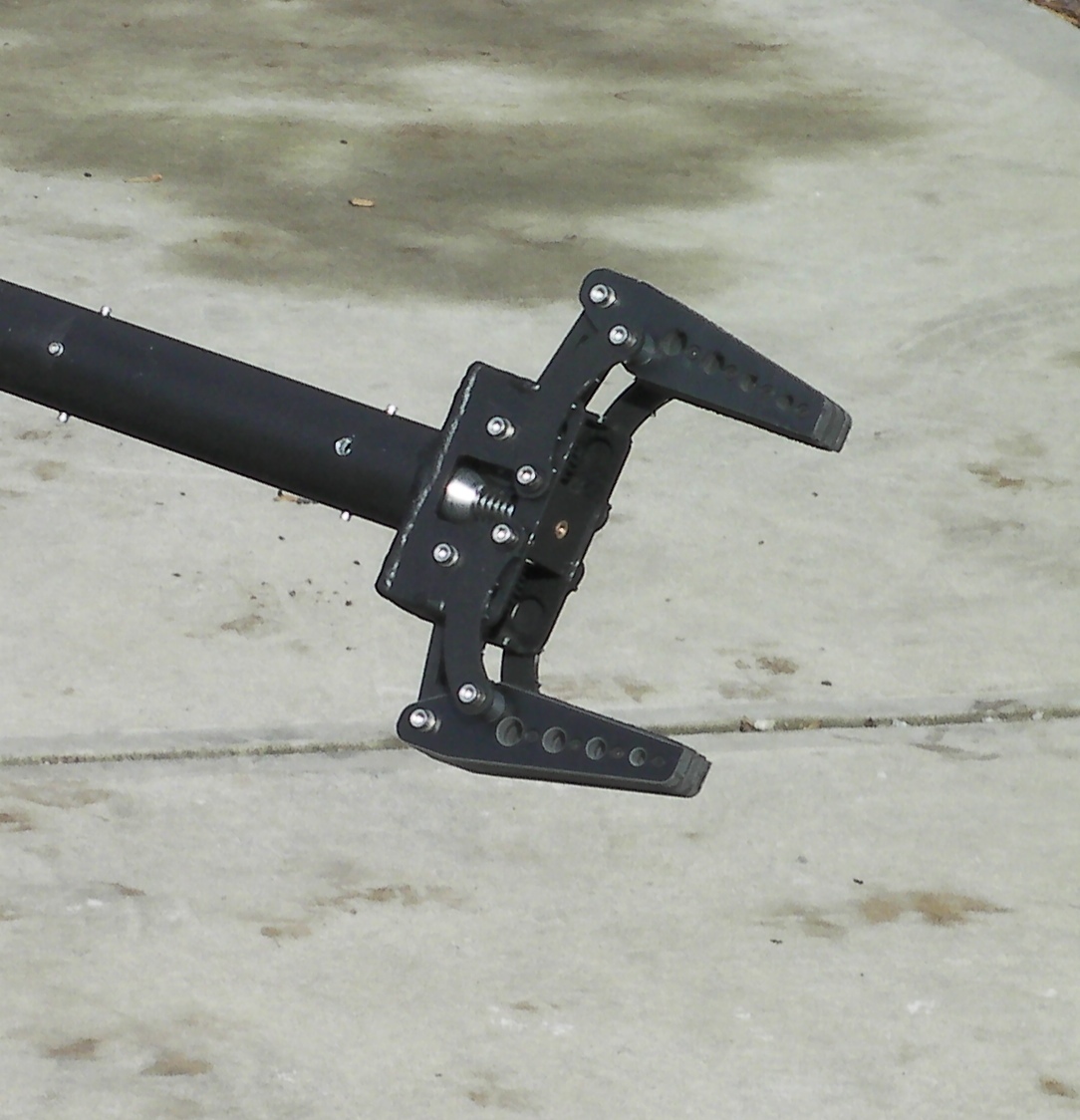

  • Gripper Width: 4.5 inches
  • Arm payload: 15+ pounds fully extended.
• Camera System:

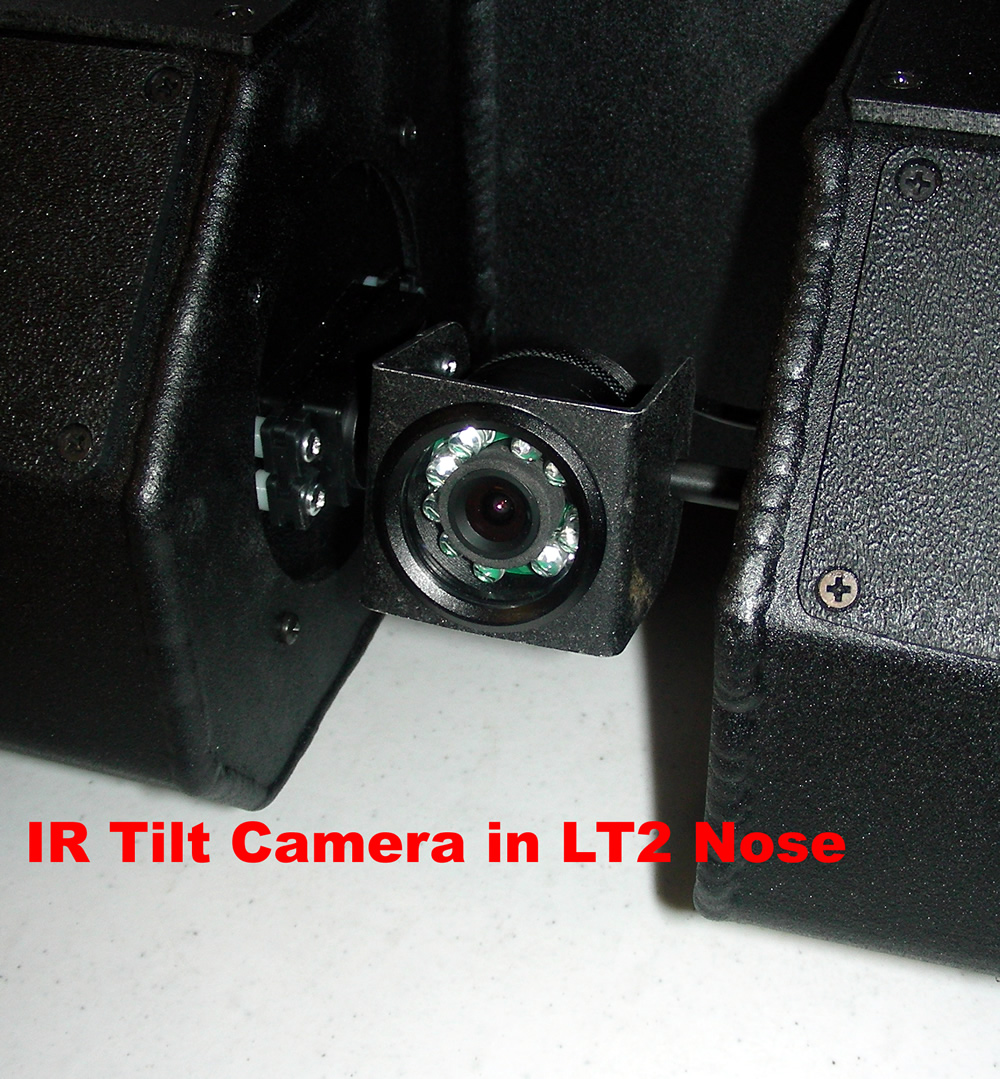

  • Primary Camera: Mounted in the nose of the LT, this high resolution day and night camera can tilt 180 degrees.
  • Secondary Camera(s): Optional High Resolution day and night IR camera mounted on the forearm to view the gripper. A third camera can be mounted on the rear of the robot to increase situational awareness.
• Tactical OCU: For this robot, the best Operator Control Unit (OCU) for the money is SuperDroid Robots digital enclosed case remote offering great performance, channel hopping, encrypted video and control.
• Battery Charging: The chargers are fully automatic and will charge all the batteries simultaneously.
• Robot Run Time: Up to 8 hours.
• Speed: 0 to 2.5 ft per second infinitely adjustable/controllable.
• Weight: ~65-70 lbs depending on options selected.
• Dimensions: Total Width: ~18.75", Total Length: ~27", Height (Parked): ~16".
• Assembly: The entire robot will be assembled, configured, tested, and supported by our professionally trained staff here in NC.

Available Options:

• Controller Options: We have multiple radio and controller options available to fit your budget. Our analog radios are available in a range of handhelds and rugged enclosed cases. Our digital remotes are available with a military grade COFDM radio for superior range and performance and our new digital option that’s comparable in price to our analog system and comparable in performance to our COFDM system. For more detailed information on our available controllers, please see our support page.
• Tread Options: Choose between our standard and aggressive treads. Both options are tested and can withstand extreme abuse.
• Camera Options:

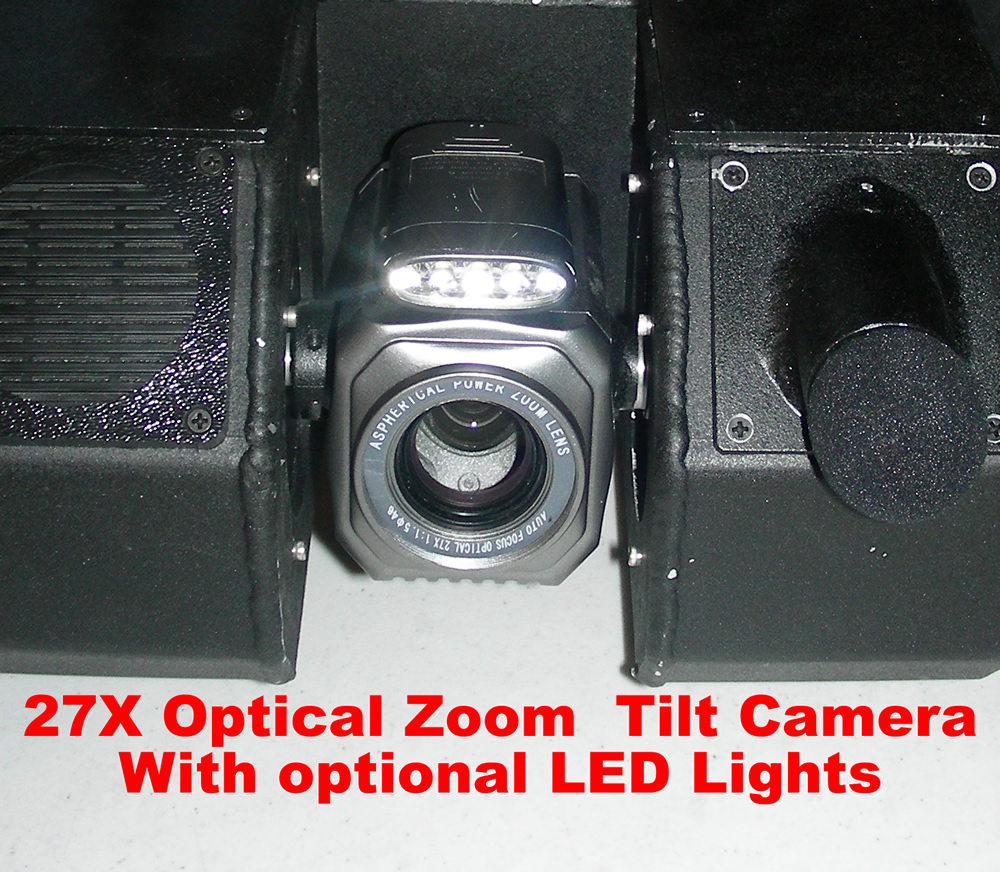

  • Front 27X Zoom Tilt Camera:
    • This camera system is mounted in the nose of the LT
    • It has 180 degrees of tilt
    • It has a High Resolution day and night 27X optical zoom camera.
  • Secondary Cameras:

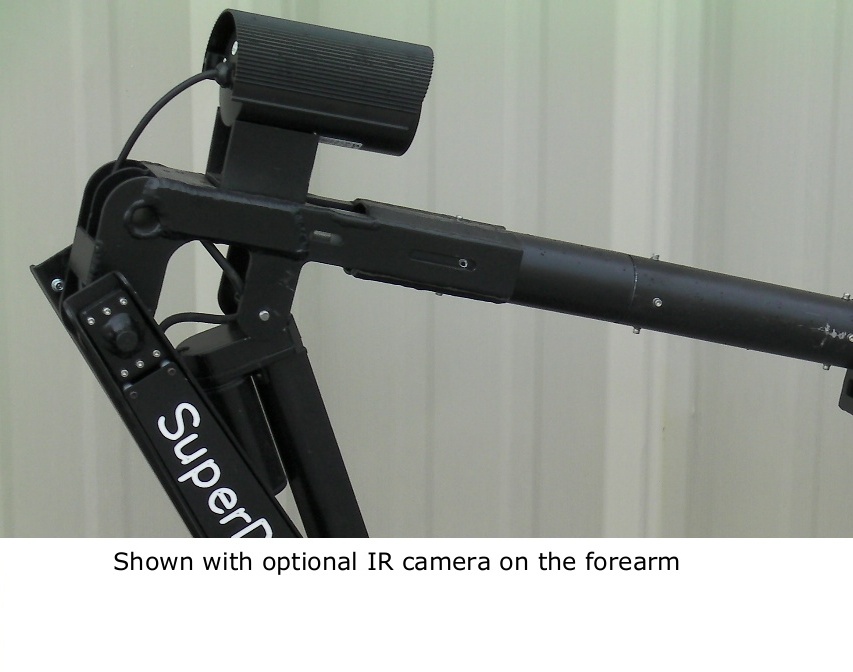

    • The additional IR Camera to the arm provides the best view to operate the gripper.
    • The rear camera is a Wide View Color Infra Red Camera with 7 IR LEDs
    • Views are easily switched between cameras with the remote.
• Lights: You can add LED lights that can be controlled with the remote.
• Robot Microphone (for Audio from Robot to Remote): This add-on installs a microphone on the robot. The microphone is a high quality microphone that is meant for listening to large areas. The microphone will be mounted to the robot and the audio will be transmitted back with the video transmitter via the audio channel. The audio will be broadcast real time on the 7 Color LCD. Volume of the audio can be adjusted on the 7 monitor. The gain, etc of the microphone is set up on the microphone on the robot.
• PA System (for Audio from Remote to the Robot): This add-on allows the user to use a hand held radio to broadcast to the robot through a loud speaker PA system. Using this option along with the above microphone allows 2 way communication between the remote users and the robot.
• Store and Protect: Protect your investment with a foam lined shipping and transport case.
• Additional Customization Options: This robot can be further customized in myriad ways, including alteration of control systems to make the robot capable of more advanced functionality such as position control and inclusion of position memory (allows the arm to travel to its programmed position). It can also be customized to operate on WiFi, Zigbee, etc. HAZMAT sensors, etc. can be added.

Contact us if you would like a custom configuration of this robot.

Documentation:

• PDF Datasheet of the LT2 and LT2-F Remote Surveillance Package
• PDF Drawing of LT2-F with Arm Parked Position
• PDF Drawing of LT2-F with Arm Extended
• LT Climbing Robot Support Page
• Robot Controller Support Page
• Custom Robot Arms Support Page
• Tactical Robots, Surveillance Robots, and Military Robot Solutions

Delivery:

• This robot is built to order based on the options selected below. Please allow 6-14 weeks for shipment.
• This robot when crated will weigh in close to 150lbs and may have to be shipped freight. Our shopping cart will not calculated the cost for freight, we will contact you after the order is placed for options or contact us for a quote.
• Actual delivery may vary based on workload, contact us for a more accurate delivery time or if you need it sooner.

Warranty:

• SuperDroid Robots will repair any manufacturing defects for 1 Year after shipment. Damage from abuse or neglect will not be covered. Warranty work performed by SuperDroid Robots in West Chicago, IL. Warranty does not include shipping. Additional warranty options are available upon request.
• Consumable items will not be covered by the warranty. Consumable items include, but are not limited to treads, chains, bearings, wheels, and batteries.
• Extended warranties, spare parts, and maintenance training is available, contact us with specific needs. Service agreements are also available.
