 NEW CUSTOM Prebuilt - 6WD Heavy-Duty All-Terrain Enclosed Platform
Item Details
NEW CUSTOM Prebuilt - 6WD Heavy-Duty All-Terrain Enclosed Platform
Item Name:
NEW CUSTOM Prebuilt - 6WD Heavy-Duty All-Terrain Enclosed Platform
Item #:
TP-500-375
Your Price:
$7,289.00
Availability:
Not Available
Quantity:

Product Image Gallery:

This item does not qualify for free shipping.

Description

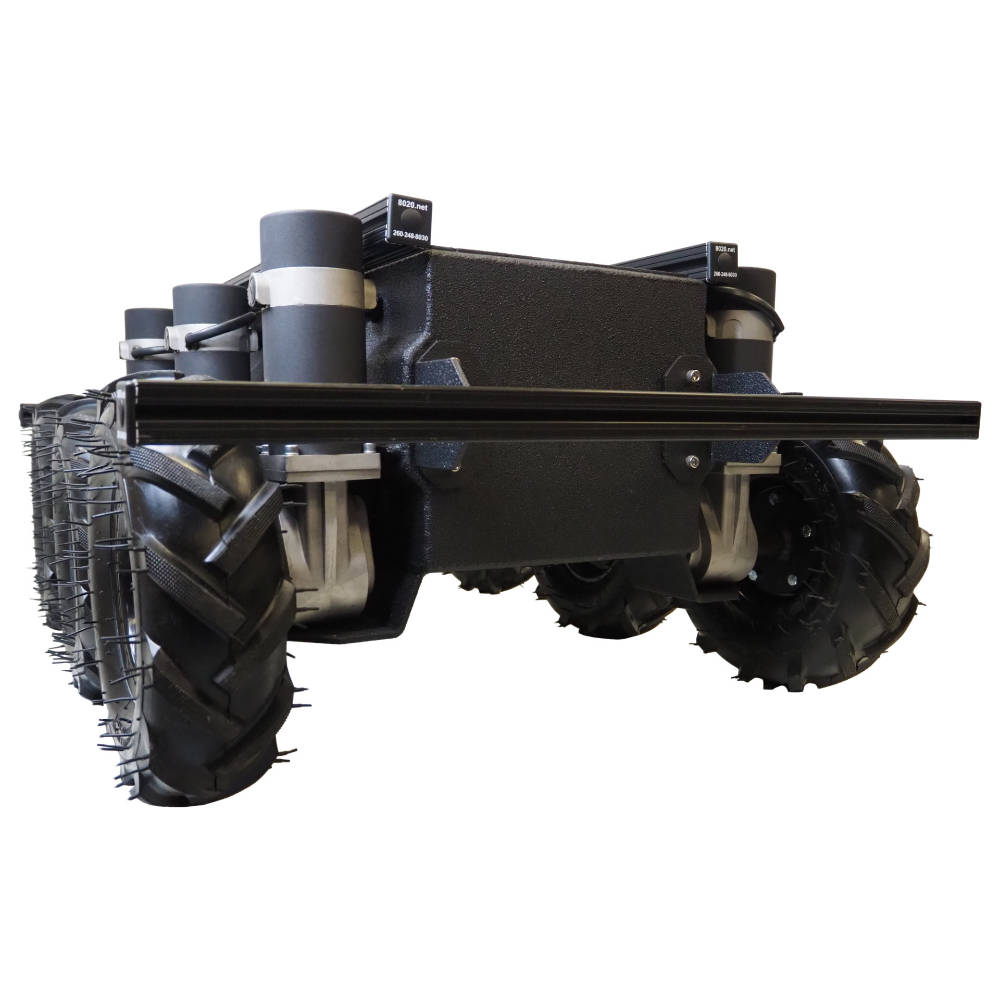

This is a custom prebuilt 6WD robot based on our WC1500-DM6. It uses three pairs of our heavy-duty 320 Watt 120 RPM Wheel Chair Motors and our 13" tiller tires. The wheels are mounted directly to the motor shaft for simplicity and ease of assembly. The enclosed chassis is made from 3/16" aluminum plate. It is CNC plasma cut and then welded together making a very strong and rigid chassis. The center wheels are given a slight offset that results in low-wear, low-current steering on a dime. This robot is capable of carrying a payload in excess of 200lbs with ease.

See our ATR page for more details about our All Terrain Robots. If you need this robot customized beyond the provided options below, Contact us .

Specifications

  • Dimensions (LxWxH): 37.0" x 25.0" x 16.3"
  • Weight: 215 pounds
  • Axle Mount: Direct Mount (DM) - Wheel axles are mounted directly onto the motor shaft
  • Drive Method: Direct Drive
  • Payload : Up to 250 pounds depending on use
  • Speed: 400 feet per minute (4.5 mph)
Contact us if you need help selecting options or need a custom configuration.

Delivery

  • This item is and usually ships in .
  • Need it faster? Contact us




 This is a heavy-duty, custom robot featuring six high-torque wheelchair motors. This robot can handle a payload up to 250 lbs! The speed is 400 feet per minute or 4.5 mph.
