Description:

This is a prebuilt RC Custom Length All Terrain Robot Kit that has all the main features to get you going. Ready to ship, fully assembled and ready to run. The robot is configured as listed below. If you desire a custom configuration please follow this link and select the options at the bottom of the page. If you require further customization, please fill out our custom robot request form.

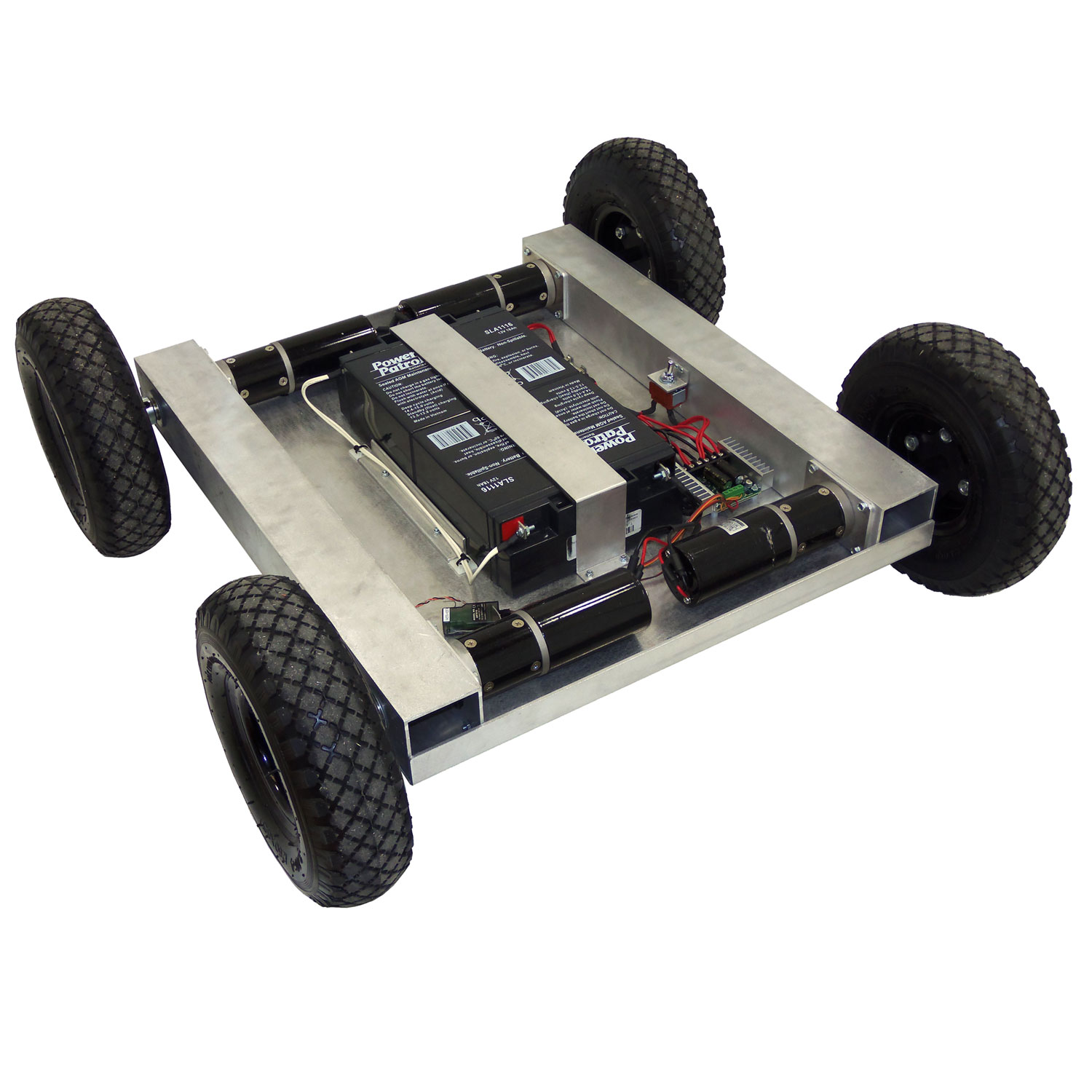

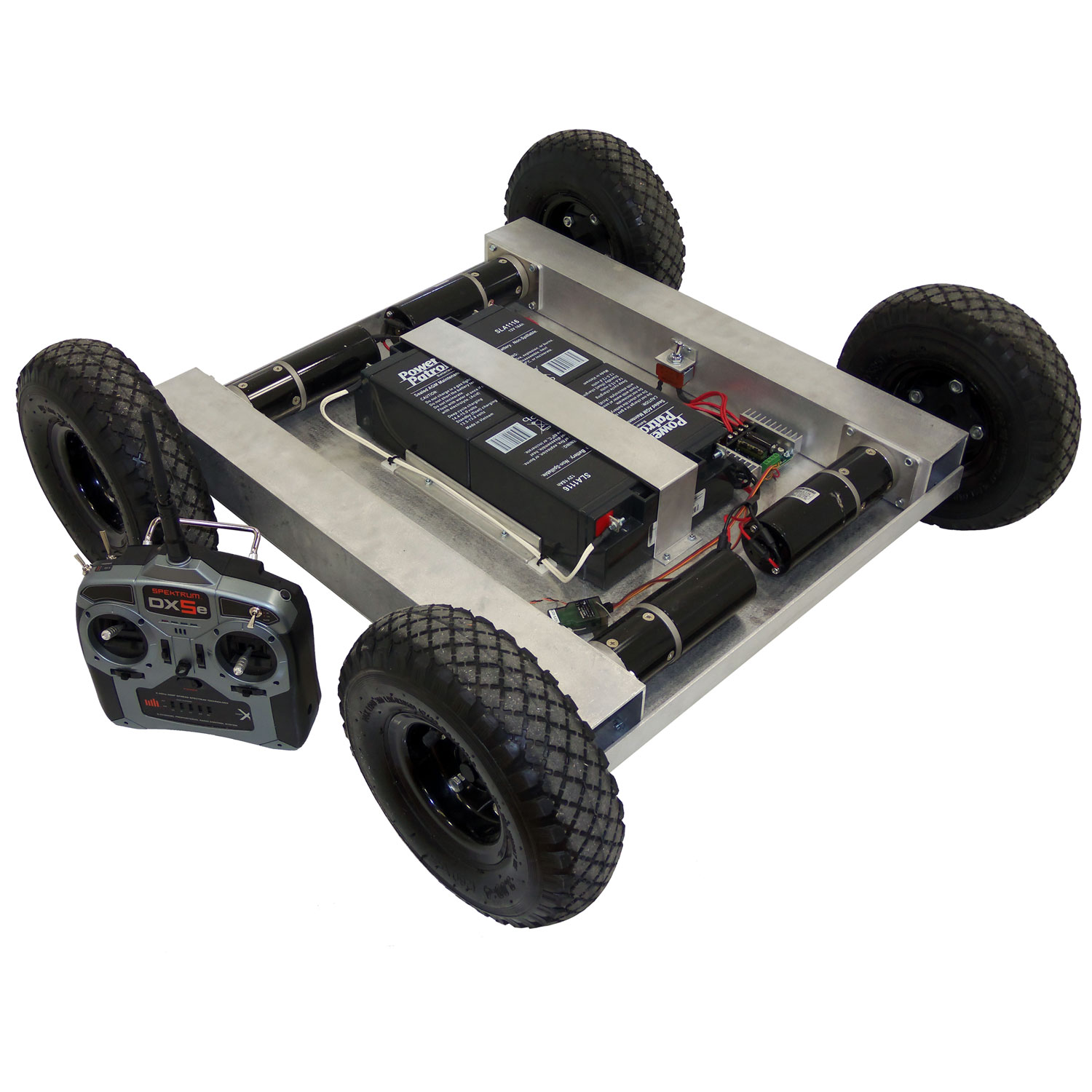

This prebuilt robot that uses custom length sides and 10 inch tires. We have included everything to make it ready to run including batteries, controllers, chargers, etc.

Pre-Built Configuration:

• (Qty 2) Custom Length IG52 ATR Side (modified and bolted to chassis)
• (Qty 2) ATR Wheel and Shaft Set Pair IG52- 10 inch pneumatic
• (Qty 1) 1/8" Thick Custom Aluminum Base
• (Qty 4) IG52 24VDC 285 RPM Gear Motors
• (Qty 1) Sabertooth Dual 25A Motor Driver
• (Qty 1) Spektrum Transmitter and Receiver 2.4GHz
• (Qty 1) Smart Charger for 12V Lead Acid Battery -10A
• (Qty 2)12 Volt 18Ah Sealed Lead Acid Battery (run in series for 24V)
• (Qty 4) Electric Motor Hookup Kits
• (Qty 1) Electric Power Hookup Kit
• (Qty 1) Hardware and Electrical
• (Qty 1) Assembly and Testing
• Specifications of this prebuilt configuration:
  • Axle Mount: Single Bearing (SB) - the axles are mounted to the motors and one sealed ball bearing.
  • Speed: 9 mph
  • Dimensions (LxWxH): 28.5" x 29" x 10"
  • Weight: 64lbs.
  • Capacity: Payload of approximately 50-75lbs.

Documentation and Support:

• All-Terrain-Robot (ATR) Wheeled Robot Support Page
• Watch the video of an ATR being built!

Delivery:

• This robot is pre-built, please allow 1-2 business days to prep the robot for shipment.
• Contact us if you need expedited delivery.

Video:

The videos below show how the standard ATRs perform in a variety of situations.
