Description:

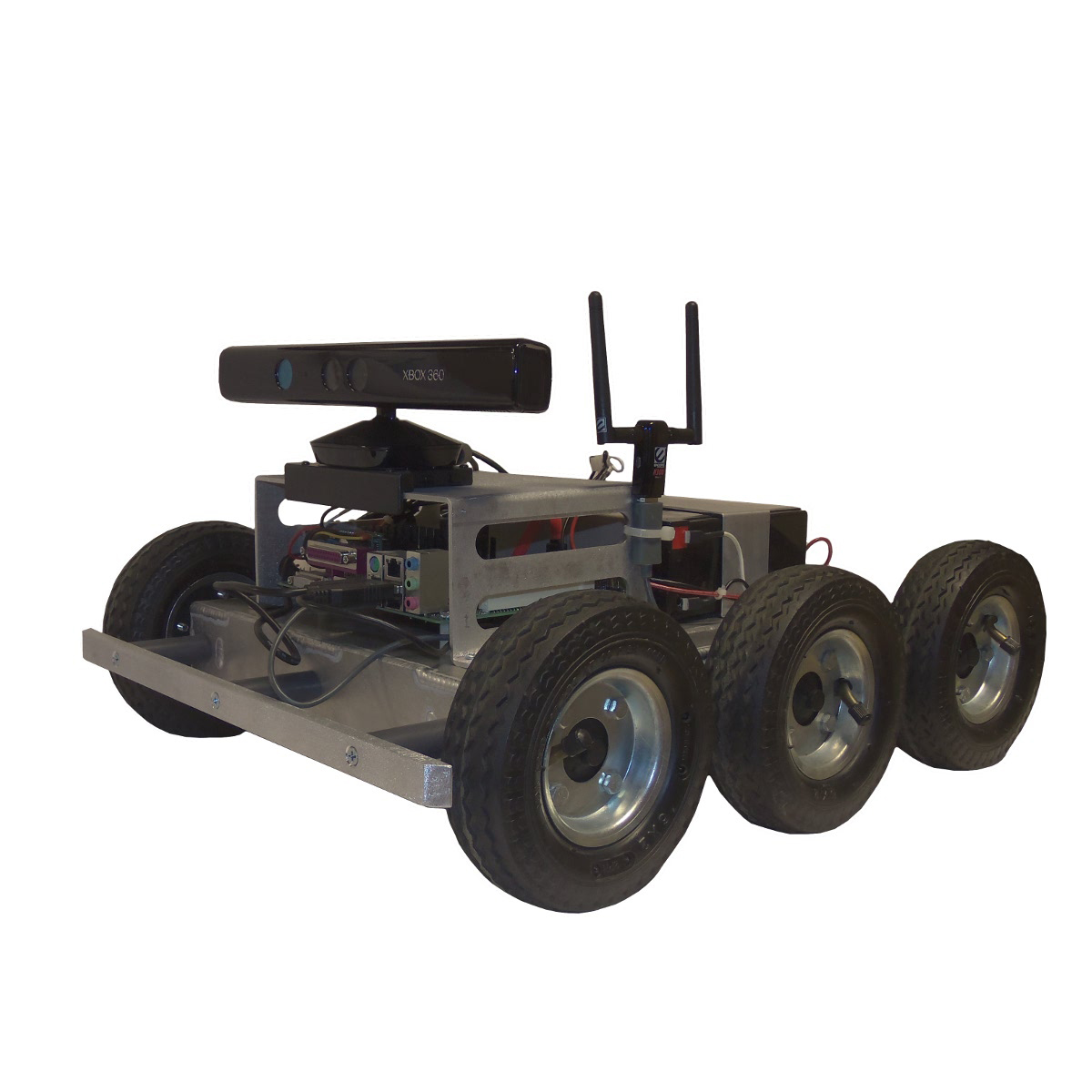

This is a 6WD prebuilt robot with 32mm motors that is pre-programmed and fully assembled with onboard computer and Xbox Kinect. The robot is controlled from a Dual Core Intel Atom computer via WiFi and features a solid state hard drive and Linux operating system. This is the perfect robot for students, curious hobbyists, and professionals seeking an affordable and robust mobile development platform.

Features and Specifications:

• Mounted Xbox Kinect for detailed and accurate motion detection, mapping, video surveillance, and object avoidance
• C++ software application to relay commands received over the network to the motor controllers
• Sample C# inteface software application that drives the robot and displays the Xbox Kinect video feed; the robot comes with basic commands so you can drive it immediately. You are able to modify the code to control the pan/tilt sytem, display the depth chart (for mapping), etc.
• OpenKinect software enabling you to program the robot to broadcast the video feed and depth chart over the wireles network to the user
• Intel Atom motherboard to serve the Xbox Kinect and control any device that exists on the network.
• Instant gratification is also included - the robot comes fully assembled, tested, and ready to run.

Side by side - depth chart and video

Pre-Built Configuration:

• Includes chassis, hardware, electronics, etc.
• (6) 6 inch pneumatic wheels with solid steel axles and ball bearing supports.
• Custom steel front-end bumper to protect on-board electronics
• Custom steel bracket for mounting Xbox Kinect
• Variable speed and direction differential drive/steering.

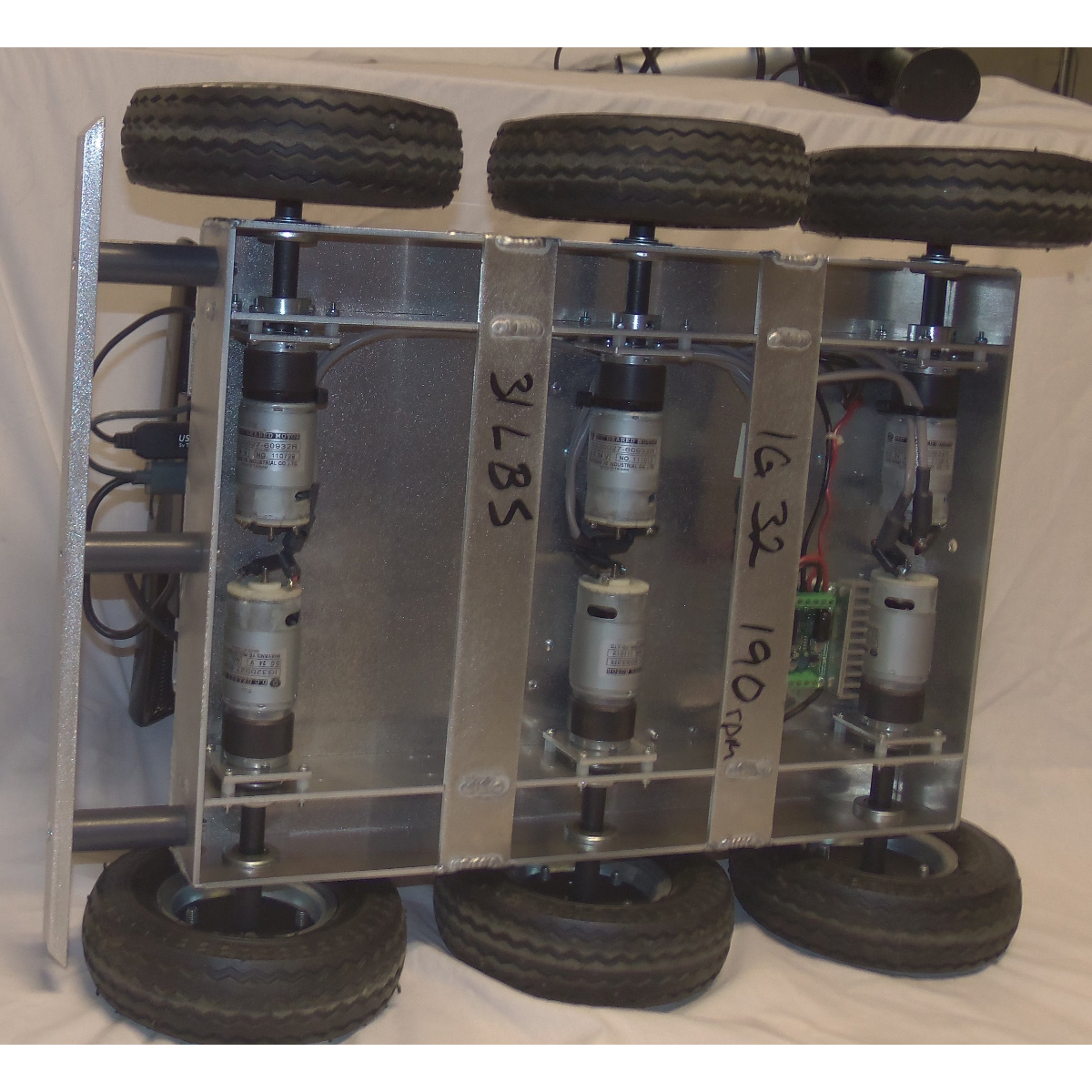

• Six heavy duty planetary gear motors (one per axle/wheel).
• The standard motors drive this robot up to 300 feet per minute.
• Computer System (all components equal or better)
  • Lintel Atom D2550 (1.86GHz Dual Core)
  • Intel NM10
  • 2×204pin SO-DIMM DDR3 1066
• Microsoft Xbox 360 Kinect
• Logitech Gamepad Controller
• This robot comes complete with a motor controller.
• 24V SLA batteries and 7Ahrs of capacity providing a 2-4 hours of operation depending on use.
• Battery Chargers are included.
• Total weight: ~34 lbs.
• Total length: 21 in.
• Total width: 17 in.
• Total height: 11 1/2 in.
• Ground clearance: 2 in.
• Example program and Linux OS installed and included
• This robot comes fully assembled and tested. The computer comes configured with OS and demo program.

Delivery:

• This robot is pre-built, please allow 1-2 business days to prep the robot for shipment.
• Contact us if you need expedited delivery.
