Description:

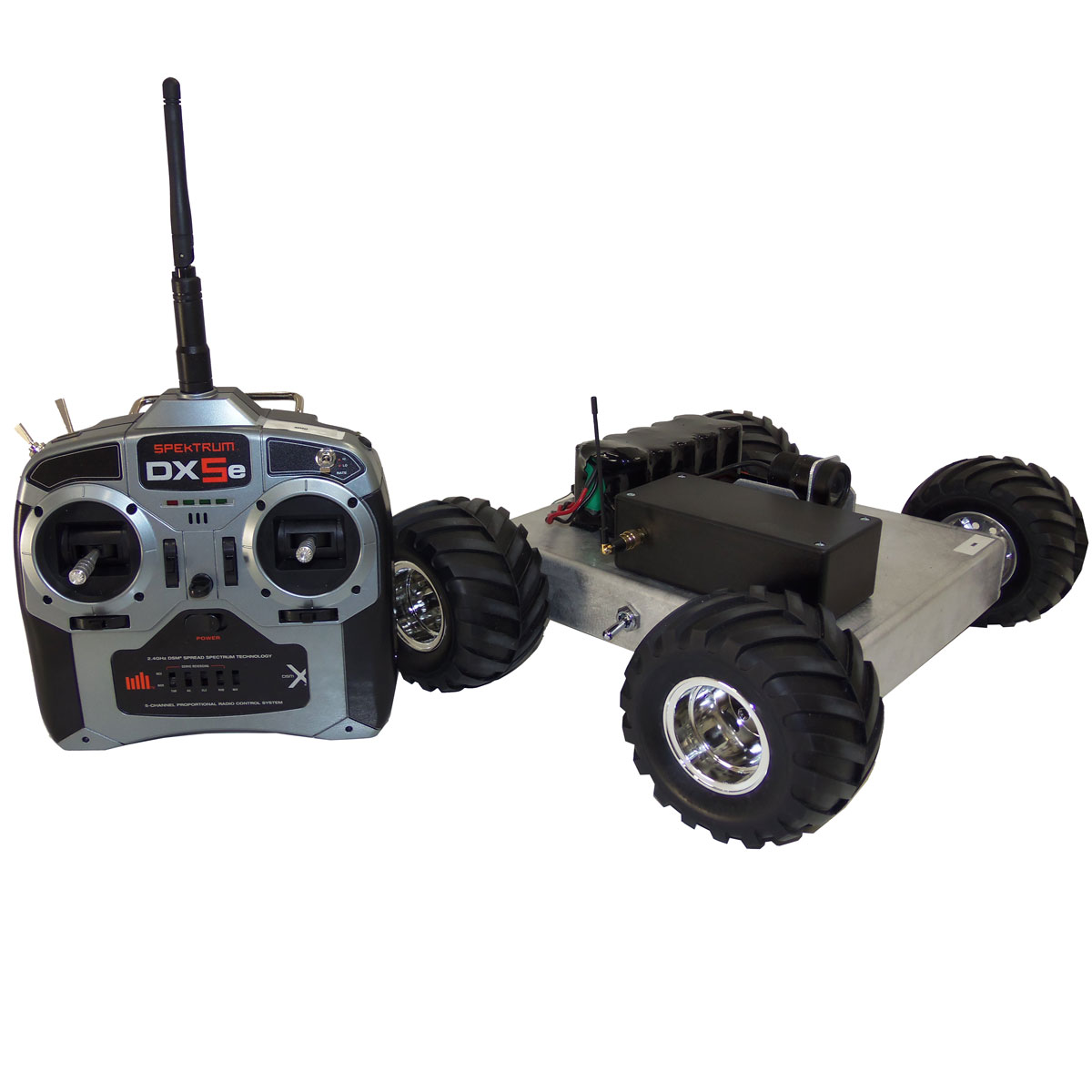

This is a prebuilt RC All Terrain Robot that we have built to be used for an inspection robot. You can sit in your house, drive through your crawl space and watch it through your TV. Ready to ship, fully assembled and ready to run. The robot is configured as listed below. If you desire a custom configuration please follow this link and select the options at the bottom of the page. If you require further customization, please fill out our custom robot request form.

This is a smaller version of our Standard ATR, therefore it does not have the same clearance or capacity, but performs exceptionally well. The wheel axles are mounted directly to the motor output shafts. The motors allow this robot to go over most terrain, yet its size makes it very maneuverable indoors.

The robot comes with a welded aluminum chassis, wheels and hubs, which directly couple to the IG32 gear motors. Each hub/wheel is driven by a planetary gear motor delivering smooth reliable power. The robot uses differential steering (movement is based on two separately driven wheels placed on either side of the robot body. It can thus change its direction by varying the relative rate of rotation of its wheels). See our ATR page for more details about our All Terrain Robots. If you need this robot customized, Contact us.

The inspection robot uses a standard RC transmitter to drive the robot and a 900 MHz video transmitter to relay the video back to the receiver. The video receiver outputs analog RCA so any TV or LCD screen will accept it. You can also get a USB to RCA converter to view the video footage on your Laptop or computer screen.

Pre-Built Configuration:

• Includes chassis, hardware, electronics, etc.
• Four IG32 12VDC 104 RPM gear motors (one per axle/wheel).
• Qty 2 sets: ATR Wheel and Shaft Set Pair - 4 inch
• Variable speed and direction differential drive/steering.
• View Color Infra Red Camera with 9 IR LEDs
• Camera Tilt System
• Wireless 900MHz Video Transmitter and Receiver Package
• 12VDC 1000mA AC Power Transformer for powering the Video receiver
• 12V NiMH battery and 4.5Ahrs of capacity providing a 2-4 hours of operation depending on use.
• Li-Ion Battery 11.1V 1800 mAh for video camera and transmitter
• Includes battery chargers.
• This robot comes complete with a motor controller.
• This robot includes a Spektrum remote control to wirelessly drive the robot.
• This Robot comes assembled and ready to run.
• Specifications of this configuration:
  • Axle Mount: Direct Mount (DM) - the axles are mounted directly to the motor shaft
  • Speed: 232 ft/min
  • Dimensions (LxWxH): 12" x 13.5" x 4.75"
  • Weight: 7.5lbs
  • Capacity: Payload of approximately 5lbs

Documentation and Support:

• Click here to view a CAD drawing of this robot.
• Watch the videos of this robot being built!

Delivery:

• This robot is pre-built, please allow 1-2 business days to prep the robot for shipment.
• Contact us if you need expedited delivery.
