Description:

This is a prebuilt, fully assembled and ready to run. It is configured as listed below. If you desire a custom configuration please follow this link and select the options at the bottom of the page. If you require further customization, please fill out our custom robot request form.

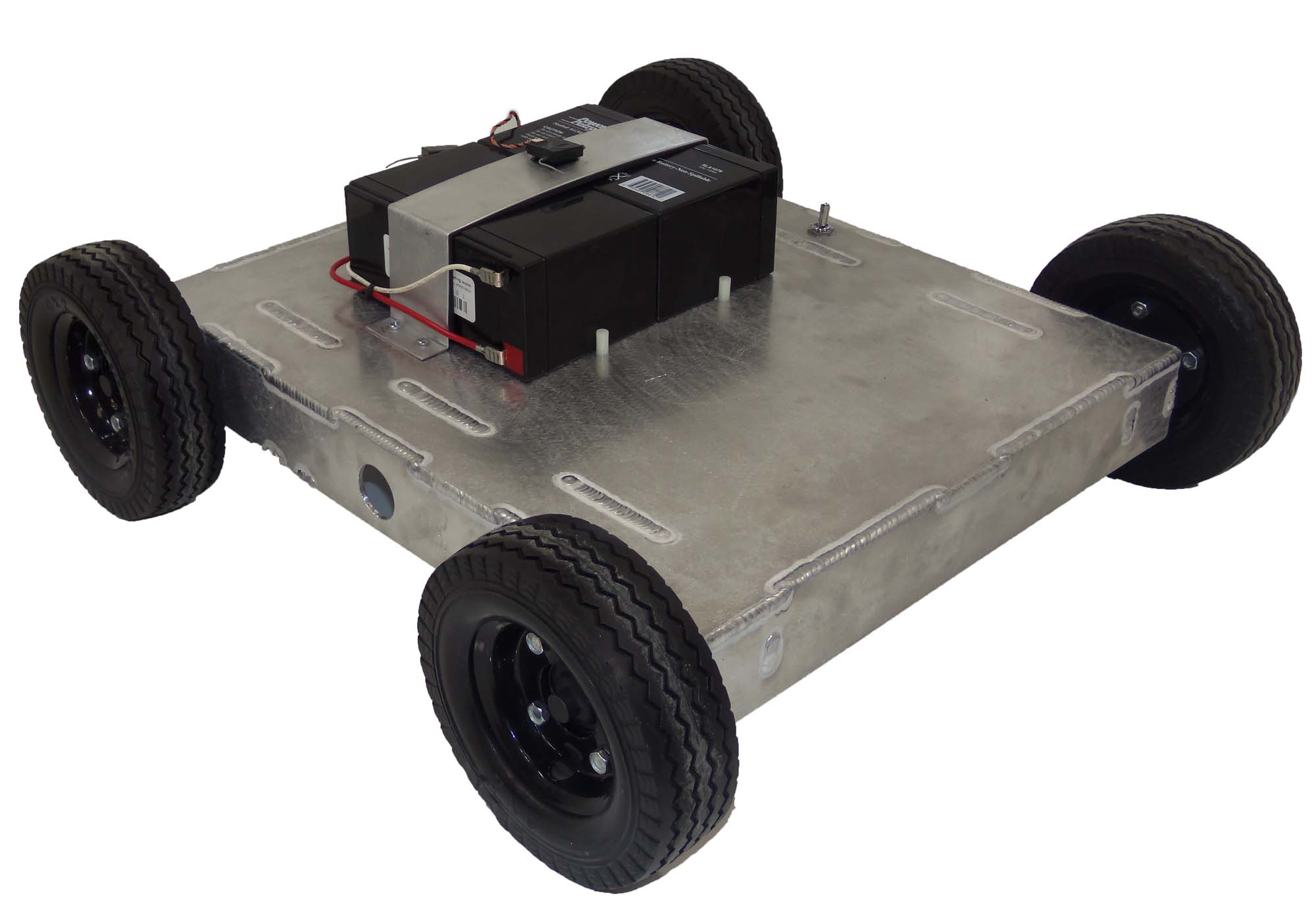

These All Terrain Robots (ATRs) are designed and fabricated in North Carolina USA and fully supported by SuperDroid Robots, an industry leader in robotics. The chassis is a rigid gusseted aluminum frame that is precisely fabricated using state of the art CNC equipment. The wheels are mounted on solid steel axles which are supported by ball bearings. Each axle/wheel is driven by a planetary gear motor delivering smooth reliable power. The robot uses differential steering (movement is based on two separately driven wheels placed on either side of the robot body. It can thus change its direction by varying the relative rate of rotation of its wheels).

Pre-built Configuration:

• Includes chassis, hardware, electronics, etc.

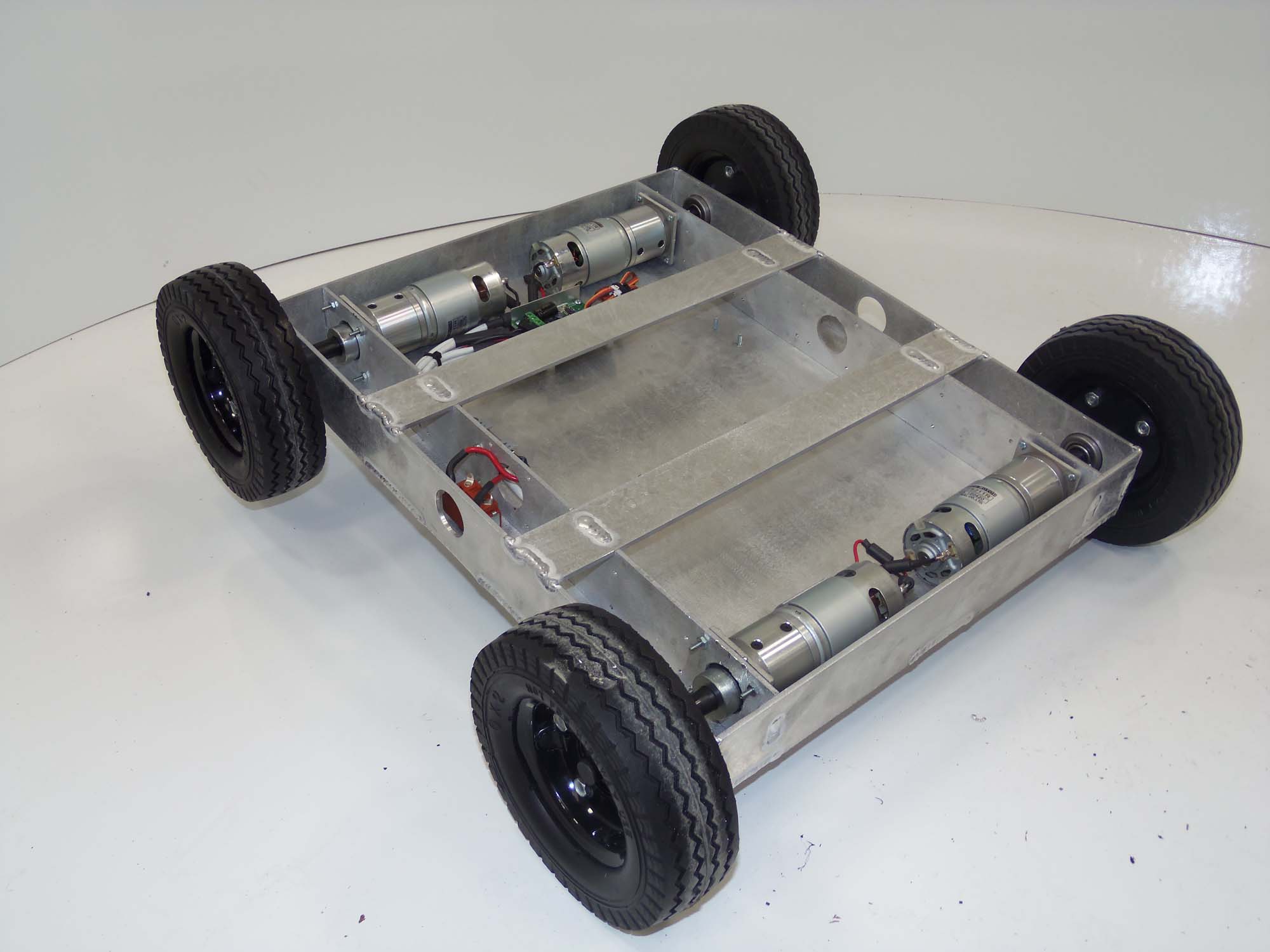

• Four IG42 24VDC 240 RPM Gear Motors (one per axle/wheel).
• 6 inch wheels with solid steel axles and ball bearing supports.
• Handles 40lbs of additional payload on smooth surfaces.
• Variable speed and direction differential drive/steering.
• The standard motors drive this robot up to 200 feet per minute.
• 24V SLA batteries and 7Ahrs of capacity providing 1.5-3 hours of operation depending on use.
• Includes battery chargers.
• This robot comes complete with a sabertooth 2X12 motor controller.

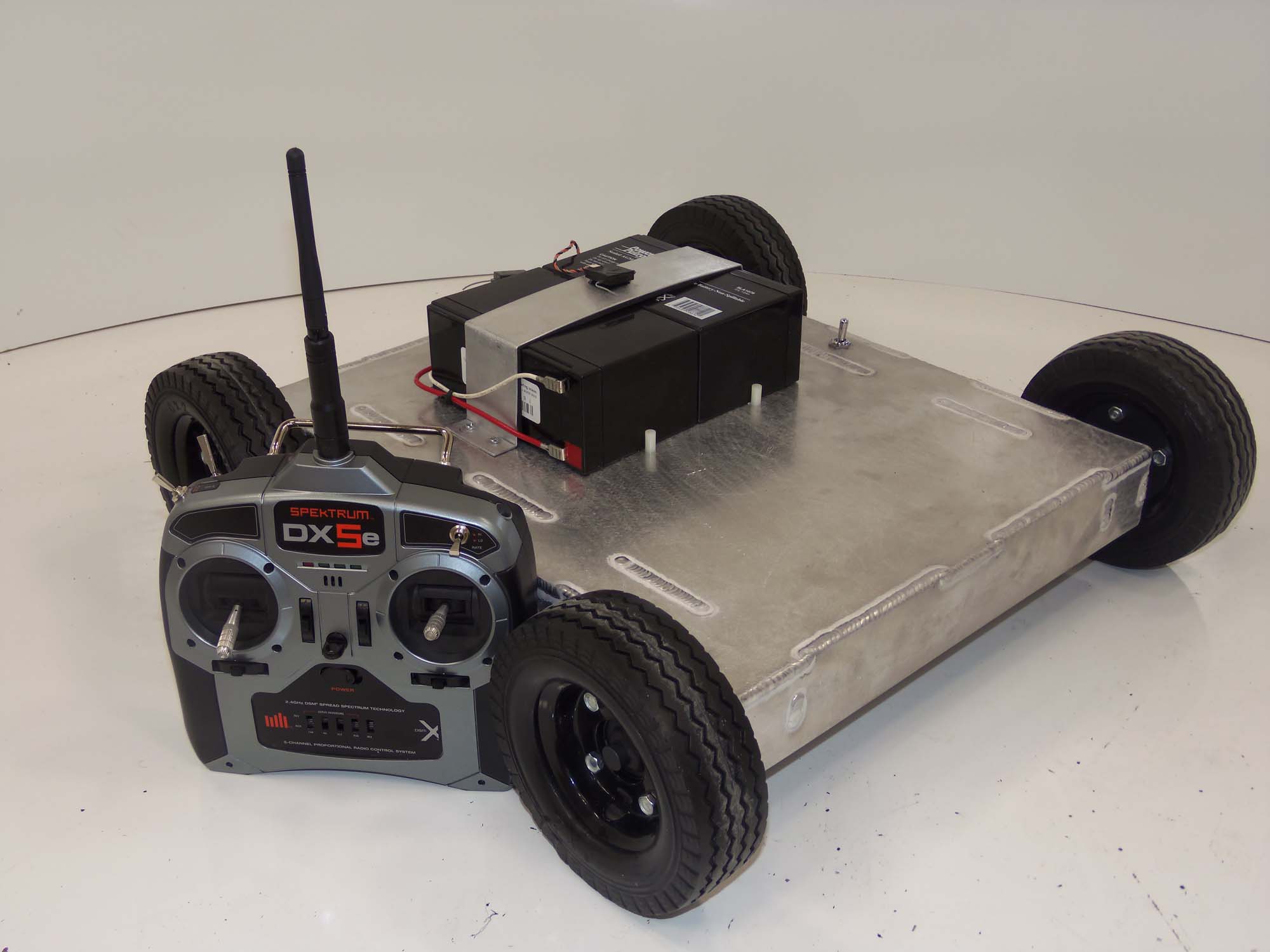

• This robot includes a Spektrum remote control to wirelessly drive the robot.
• The total weight of this configuration is ~27 lbs.

Documentation and Support:

• Robot Assembly Videos
• How to Build a Robot - Support and Videos

Delivery:

• This robot is pre-built, please allow 1-2 business days to prep the robot for shipment.
• Contact us if you need expedited delivery.
