Description:

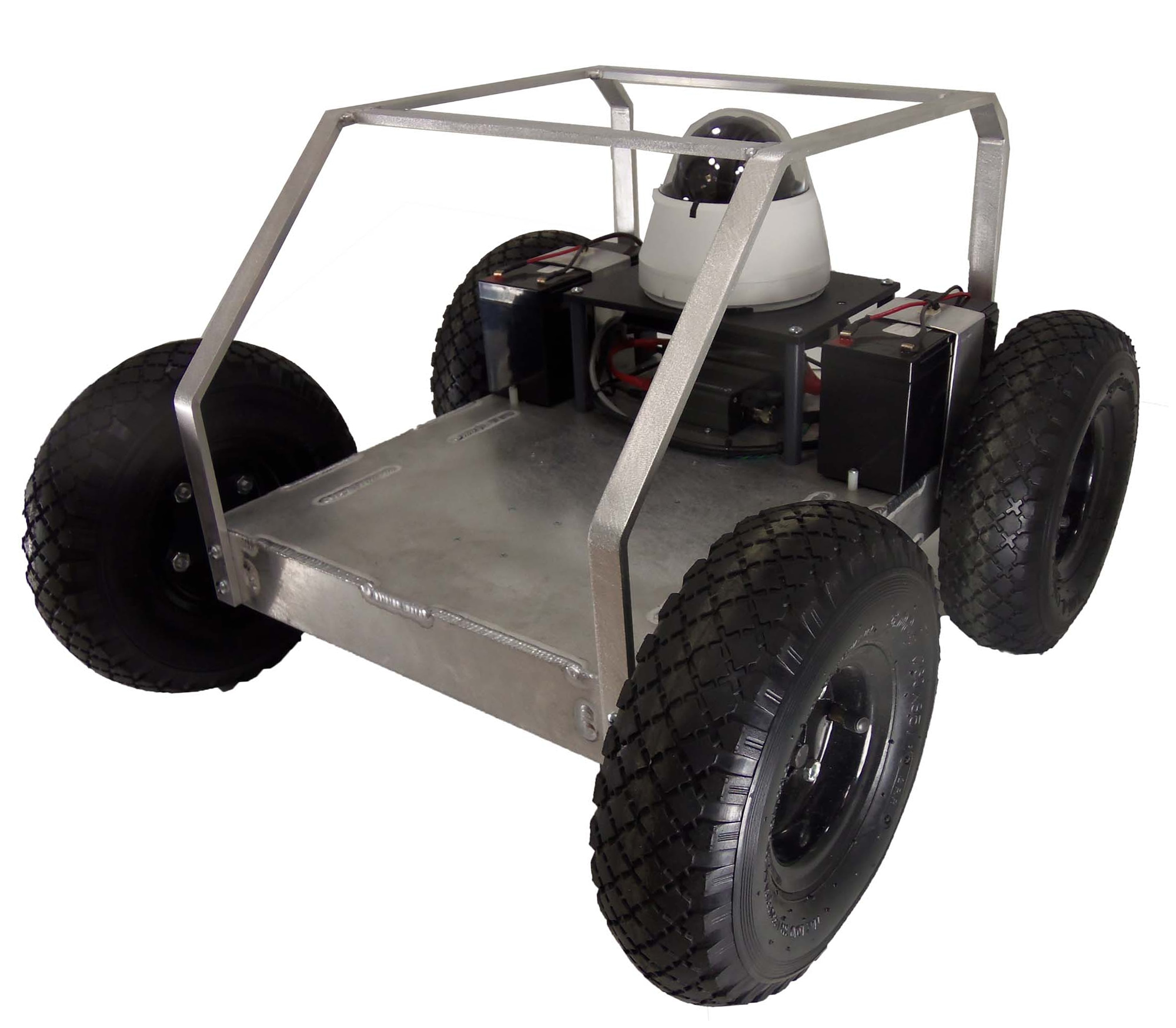

This is SuperDroid Robot's Wi-Fi All Terrain Robot, programmed and fully assembled. The robot is 4WD and is controlled from a PC over a Wi-Fi connection. Equipped with an Pan/Tilt/10X Zoom Dome IP camera.

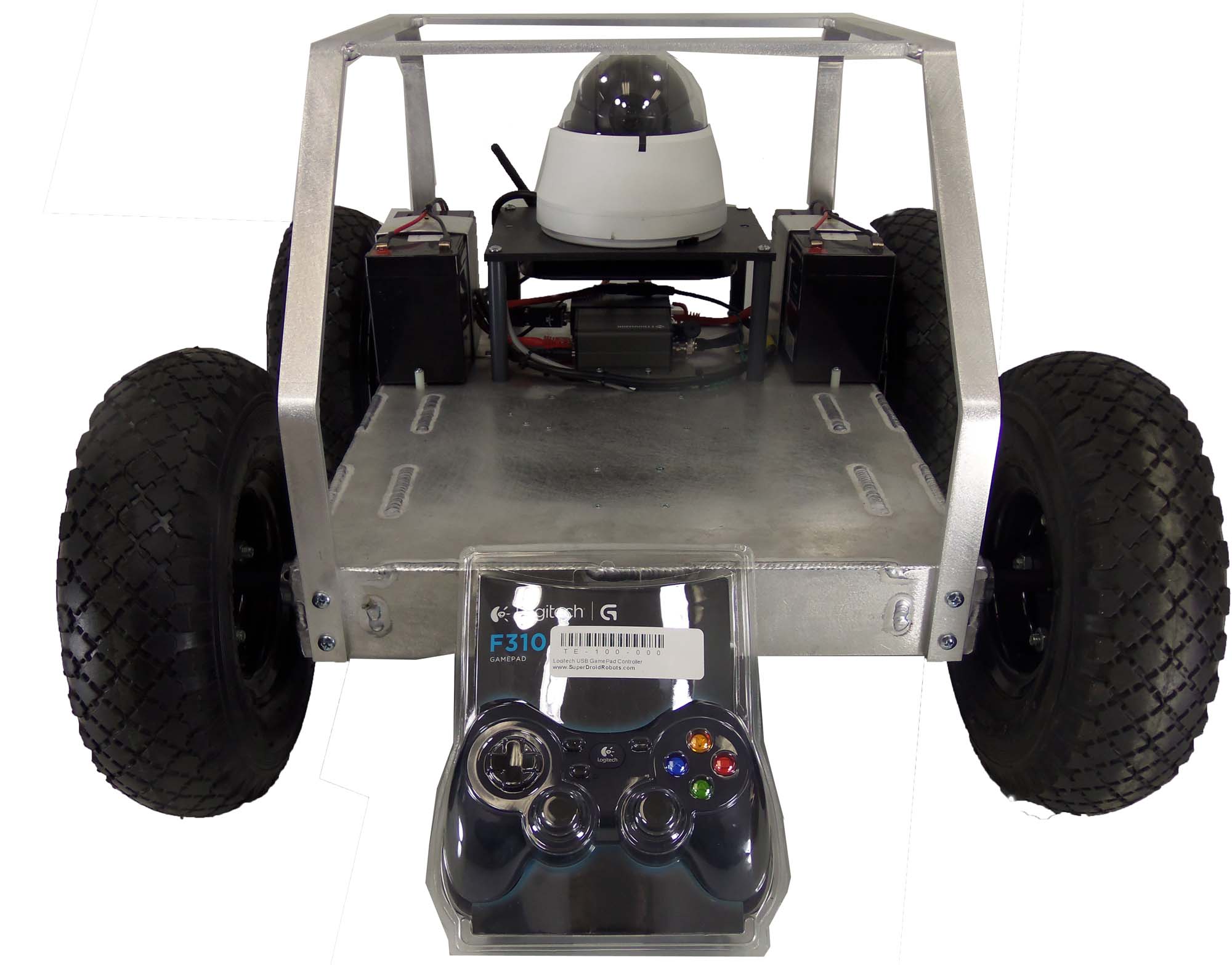

The Wi-Fi controlled IG42 ATR includes the complete robot, program, gamepad controller so you can drive the robot right out of the box. We have included encoders too so you can keep track of how far you've travelled.

The robot itself is an extremely rugged well-built. This isn’t your ordinary WiFi robot. The 10" pneumatic all terrain wheels are axle mounted and are supported using sealed ball bearings. The motors are powerful, and it will move quickly and easily on most terrains. The rugged frame is made of 1/8" thick aluminum and hand welded.

Applications:

• Remote Monitoring - Compact, lightweight and fast you can control this robot from anywhere. The 10X optical zoom camera with 360 degree pan and tilt allow a complete view of the robot's surroundings.
• Flexibility - Thanks to open aluminum chassis, it's quick and easy to attach or remove items. This makes the robot versatile for any task

Pre-Built Configuration:

This is a prebuilt robot configured as listed below. We have configured it based on past history of orders, etc. to have the most popular features. For a custom configuration of this robot, please follow this link.

• Mobile Robotic Platform: 4WD All Terrain Robot Platform with 42mm motors
  • Four heavy duty planetary gear motors (one per axle/wheel). Encoders included for tracking distance travelled
  • 10 inch pneumatic wheels with solid steel axles and ball bearing supports.
  • Handles 25lbs of additional payload in most terrains.
  • Sabertooth Dual 12A Motor Driver to control and drive the motors
  • Variable speed and direction differential drive/steering.
  • The standard motors drive this robot up to 320 feet per minute.
  • 24V SLA batteries and 7Ahrs of capacity providing up to 4 hours of operation depending on use.
  • Includes battery chargers.
• Roll Cage: ATR Roll Cage
• Interface: WiFi Custom Control Interface Package with encoder interface for keeping track of distance travelled! The Wi-Fi package comes equipped with the EnGenius Xtra Long-range Ethernet Bridge.
• Camera System: 10x Optical Zoom! 360 Pan/Tilt Dome protected Camera. All controlled with provided software using the gamepad controller or computer mouse.
• Video Server: Etrovision EV3151A Video Server with 2 way Audio
• Weight: 40lbs
• Dimension: 20.5" wide x 24" long x 15.5" high with roll cage
• Supported Operating Systems: Windows XP, Vista, 7, and 8
• Assembly: The entire WiFi robot will be assembled, configured, tested, and supported by our professionally trained staff here in NC.

Documentation and Support:

• CAD Drawing
• Custom Fabrication Services
• All Terrain Mobile Robots - Help and Information
• Wi-Fi Robots - Control your Wi-Fi robot from a wireless network or anywhere

Delivery:

• This robot is prebuilt and ready to go. Please allow 1-2 days for shipment.
• For a custom configuration of this robot, please see here
