 PCS-250 24VDC 80 RPM Wheel Chair Motor - DISCONTINUED
Item Details

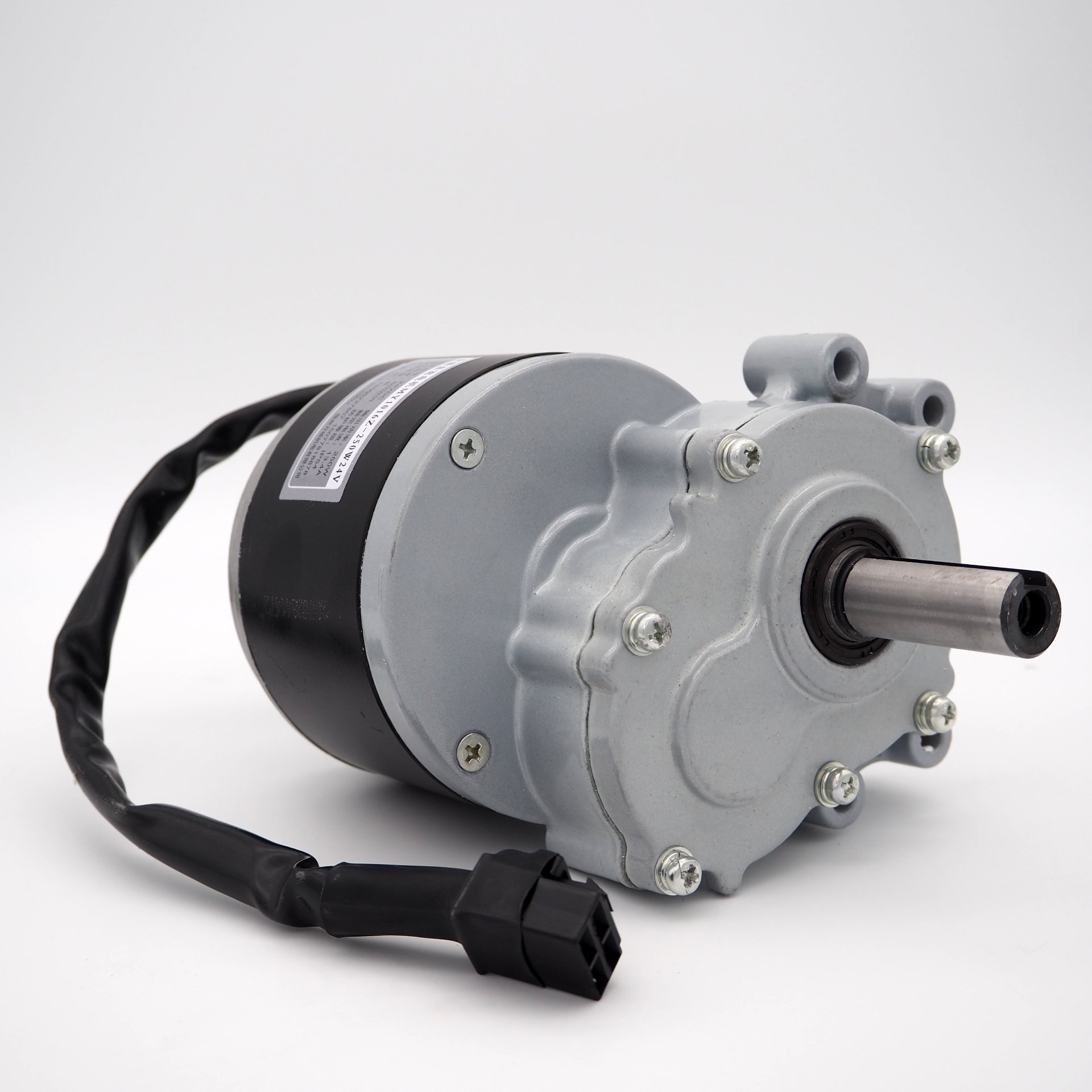

PCS-250 24VDC 80 RPM Wheel Chair Motor - DISCONTINUED
Item Name:
PCS-250 24VDC 80 RPM Wheel Chair Motor - DISCONTINUED
Item #:
TD-370-080
Your Price:
$218.00
Availability:
We're sorry, this item is currently out of stock. Please contact us for availability.

Product Image Gallery:
PCS-250 24VDC 80 RPM Wheel Chair Motor - DISCONTINUED

Description

This is a wheelchair motor and with spur gearbox. They make great motors for heavy-duty robots, providing higher payload capacities, power, and performance. Unlike many wheelchair motors, these do not have a left and right-hand version and are sold individually. We have tested a lot of motor and gearbox combinations and these work very well for our purposes.

Specifications

  • Rated Power: 250W
  • Output Speed: 80RPM
  • Rated Voltage: 24V
  • Motor Length: 80mm
  • Motor Diameter: 102mm
  • Shaft Size: 17mm with 6mm keyway
  • Weight: 6lbs 3oz

Documents

Shipping

Due to the weight of these items, they do not qualify for free domestic shipping.

Video


 This is powerful wheelchair motor. They make great heavy-duty robot motors. 250W 80RPM motors with 17mm keyed shaft output. They are sold individually.
