Description:

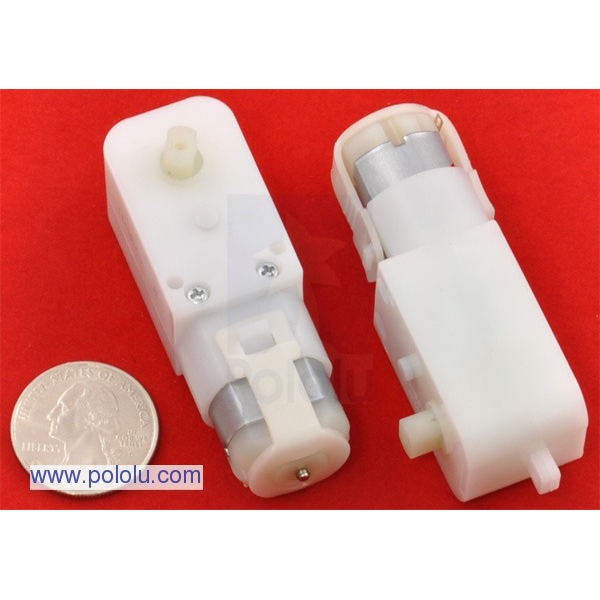

This 200:1 plastic gearmotor (gearbox with brushed DC motor) is a great low-cost alternative to modified hobby servos or Tamiya gearboxes. The compact size makes this unit an attractive choice for small robot designs. The recommended operating voltage range for this motor is 3 - 12 V.

At 6 V, the gearbox and motor provide approximately 100 oz-in of torque and 51 RPM. The free-running current is 70 mA, and the stall current is 800 mA. The gearbox is protected by a built-in safety clutch that will typically slip before gear teeth can shear.

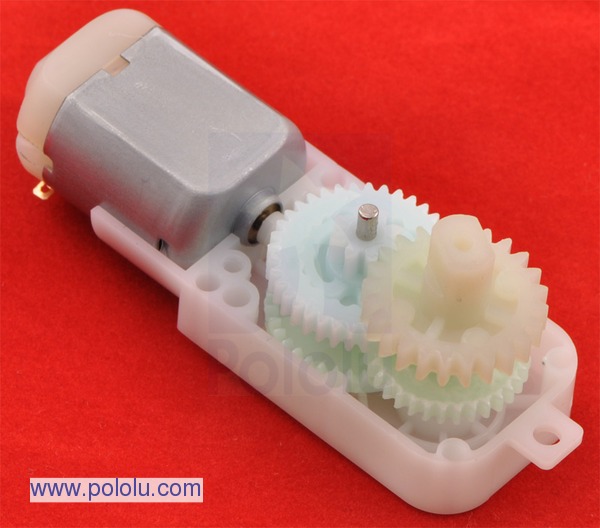

This gearmotor comes pre-assembled, with the gears fully enclosed. There are built-in mounting holes, and the output shaft is 6 mm long and 7 mm in diameter with two sides flattened. The output shaft is at a 90° angle from the axis of the motor shaft; we also sell a similar gearmotor with an offset output shaft.

Features and Specifications:

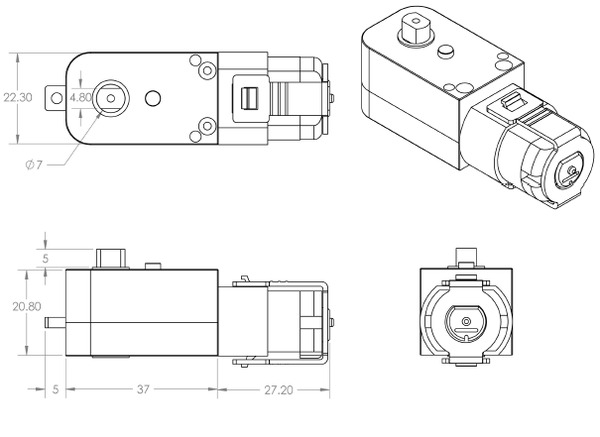

Dimensions (in mm) of the 120:1 and 200:1 plastic gearmotors with 90-degree outputs.

• Typical operating voltage: 6 V
• Gear ratio: 200:1
• Free-run speed @ 6V: 51 rpm
• Free-run current @ 6V: 70 mA
• Stall current @ 6V: 800 mA
• Stall torque @ 6V: 100 oz·in
• Size: 64.4 x 22.3 x 21 mm (see Documentation)
• Weight: 32 g
• Shaft diameter: 7 mm

Documentation:

• Technical Drawing
