Description:

This is a refurbished, prebuilt complete LT Robot. READY TO RUN. We have added an IR camera fixed in the nose of the robot with a 900MHz transmitter and receiver. The robot is controlled with a Spektrum DX5 remote control.

The robot is configured as listed below. If you desire a custom tactical configuration please follow this link and select your baseline package at the bottom of the page. This robot is our older LT style robot. The LT2 tracked robot kit can be found here. If you require further customization or have more questions about the robot, please fill out our custom robot request form.

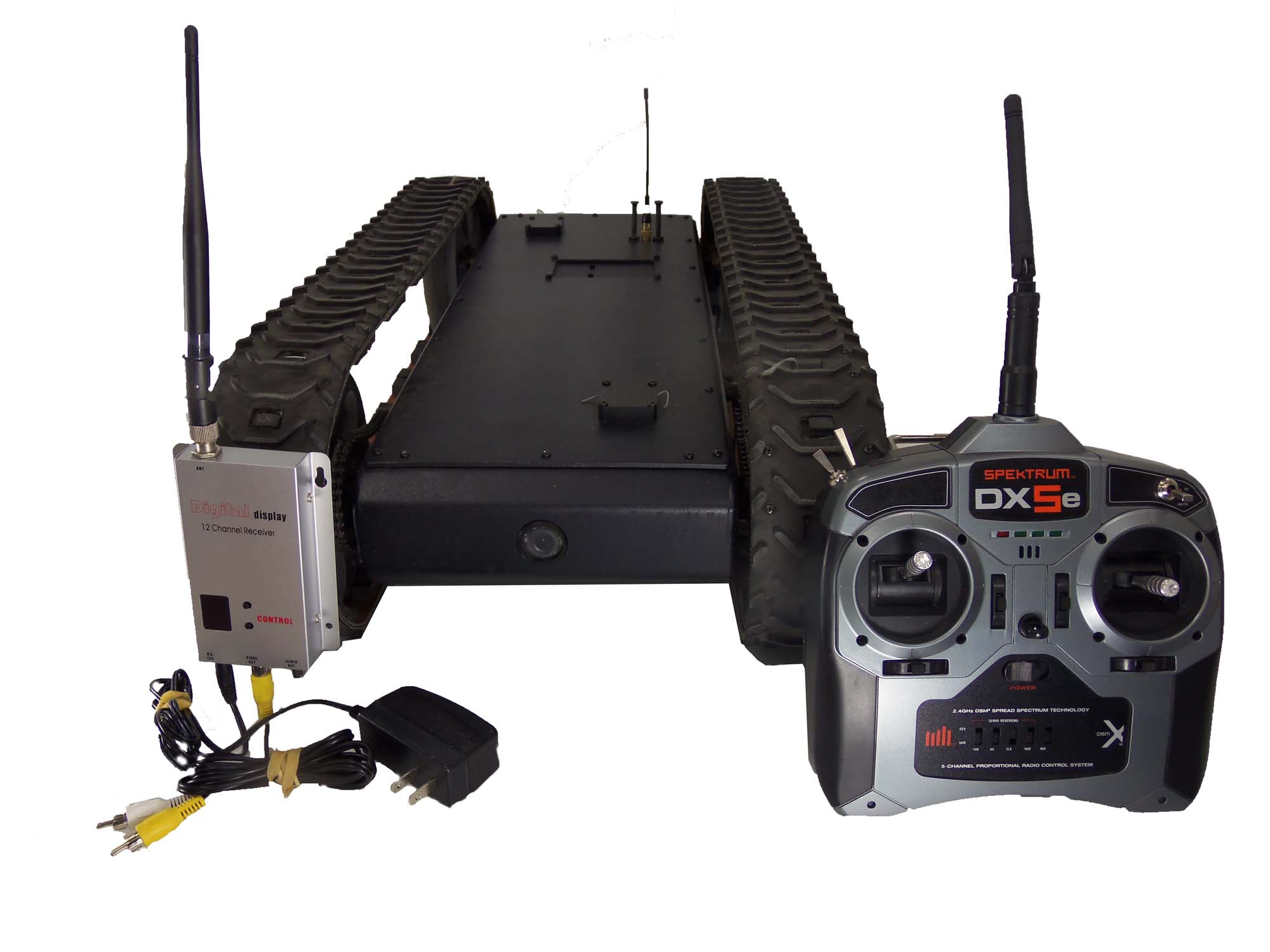

The package includes the prebuilt LT robot, IR camera, Spektrum Dx5e, wireless video Rx and Tx, and chargers. The LT is capable of climbing household stairs and obstacles, very maneuverable, and able to inspect under vehicles and houses.

Prebuilt Configuration:

• Spektrum DX5e with AR7010 receiver. (Qty 1)

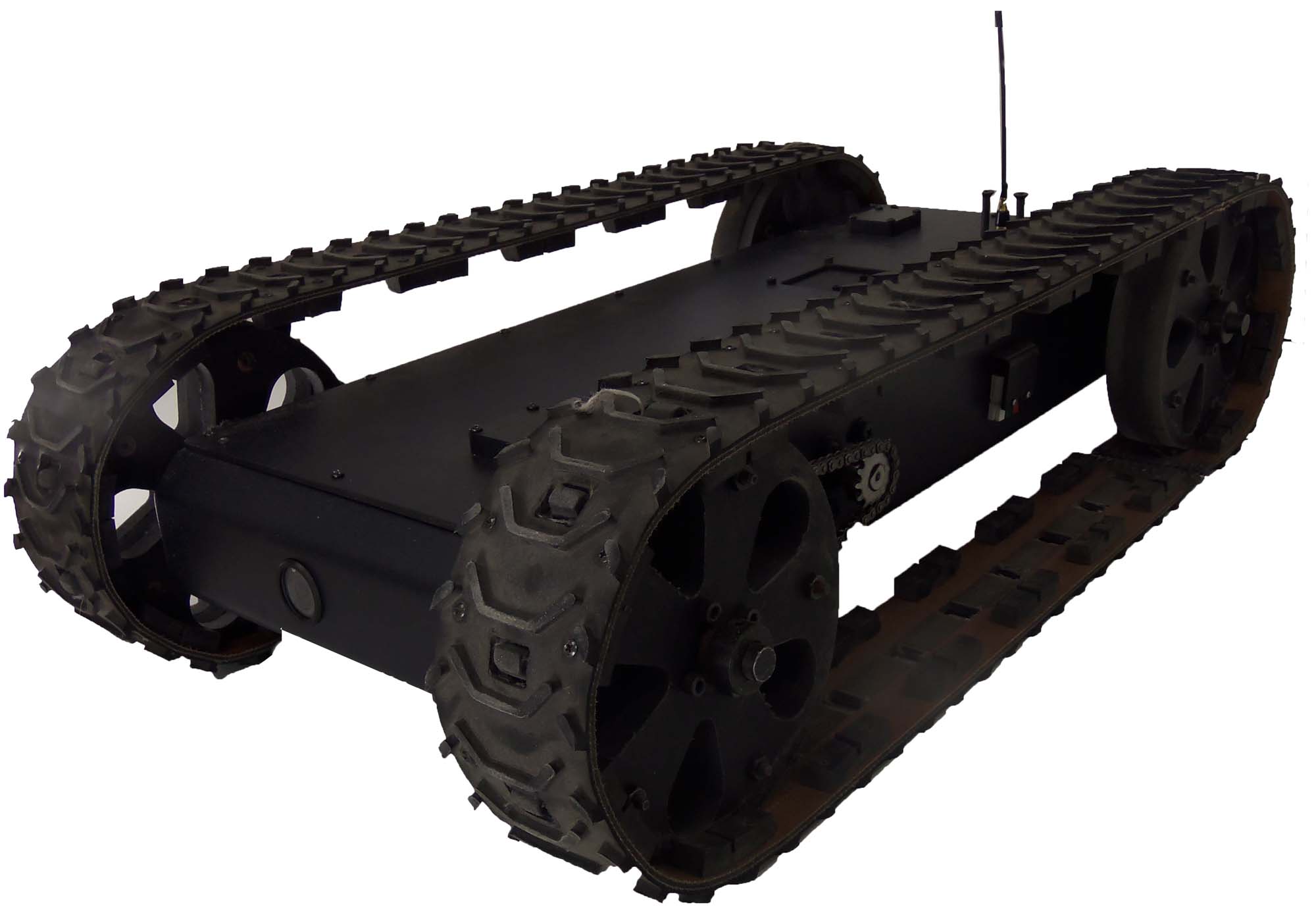

• Enclosed treaded LT robot chassis painted black with generation 1 tracks and wheels.(Qty 1)
• Fixed IR camera mounted in the chassis. (Qty 1)
• Planetary IG52-04 285RPM 24VDC gear motors - one per side (Qty 2)
• High Power Polymer Li-Ion 22.V 10Ah drive battery (TE-119-222) (Qty 1)
• Polymer Li-Ion Battery 11.1V 1800 mAh controls battery (TE-139-111) (Qty 1)
• Custom RC Sabertooth Dual Channel 12A Motor Controller (TE-115-212) (Qty 1)
• 900MHz video transmitter and receiver. (Qty 1). The transmitter is wired and installed to the robot. The receiver is loose and can be plugged into any composite TV or monitor such as this one (not included).
• Battery chargers included.
• Integrated nylon carrying strap on the rear or the robot.
• Chassis made from heavy gauge aluminum that is laser cut and CNC bent. Chassis seams are welded. Entire body is coated flat black.
• Total weight of fully assembled robot: ~32lbs
• Total height (floor to top of treads or camera housing): ~7 inches, total width: ~14.5 inches, total length: ~26 inches
• Ground clearance: ~2 inches
• Speed: 0 to 5 feet per second, infinitely adjustable/controllable

Delivery:

• This robot is prebuilt, please allow 1-2 days for packaging and shipment.
• Contact us if you need expedited delivery.
