Description:

Combining Spektrum™ industry-leading 2.4GHz DSM® technology with real-time telemetry in this DX8 represents a breakthrough in 8-channel sport-level radio systems. The telemetry module is expandable based on the module needs; the module is capable of supporting Quality of Signal (Antenna Fades, Frame losses, holds), Receiver Pack Voltage, RPM, Temperature and Flight Pack Voltage. Enthusiasts can add the safety of real-time telemetry and monitor vital aircraft stats right from their transmitter without any additional equipment. Keep your engine operating in the optimum temperature range, keep an eye on your battery voltage, and check out just how fast your aircraft is running all right from the large LCD readout of the DX8.

SuperDroid Robots is an authorized dealer for Horizon Hobby, Inc.

Features and Specifications:

• High-speed 11ms frame rate with 2048 resolution

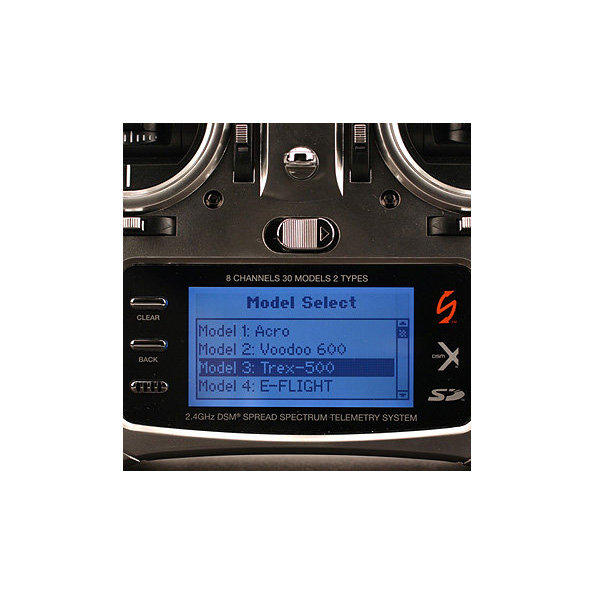

• Large 128 x 64 backlit screen
• 30-model internal memory
• Electronic E-ring electronically prevents overdriving the cyclic servos
• Includes AR8000 8-channel High-Speed Receiver
• Does NOT include servos

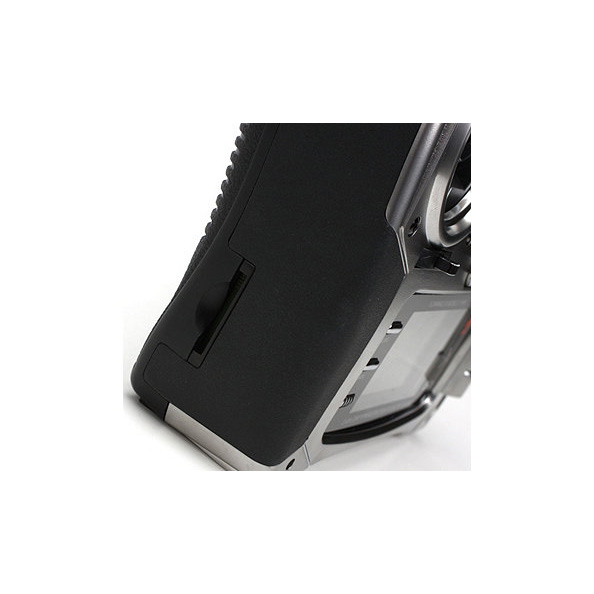

• Spektrum Data Interface provides expanded model memory, model sharing, and firmware update capability with the included SD card
• 8 Wing Types and 5 Tail Types are available for nearly all aircraft types
• Active gain and governor trim allows for in-flight adjustment of the gyro gain and RPM
• Programmable Flap System with Flap Delay and elevator compensation
• Programmable Telemetry Warnings provides both tone and/or vibration alerts
• 4 Swashplate Types
• SimpleScroll™ roller provides easy menu navigation
• User-assigned switch function
• Programmable Throttle Cut Function
• Includes TM1000 Full Range Telemetry Module providing real-time Flight Log data, receiver voltage, flight pack voltage, RPM and temperature
• Exclusive AirWare™ Software offers advanced features that are easy to use
• Refined ergonomics with no-slip comfort grips
• Programmable timer with throttle timer startup

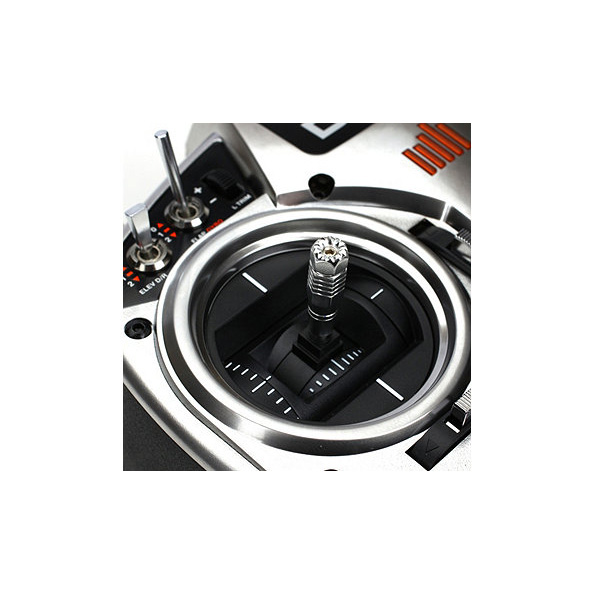

• Quad bearing gimbals
• AR8000 Key Features:
  • 11 Millisecond Frame Rate provides superior speed from stick input to servo output
  • 2048 resolution provides smooth transition from stick input to servo movement
  • Flight log and telemetry compatible
• TM1000 Key Features:
  • Transmits vital model feedback to the transmitter
  • Full range performance
  • Telemetry compatible with any DSM2 receiver, flight log data only available with data port compatible receivers
• DX8 Transmitter Specifications:
  • # of Channels: 8
  • Modulation: DSM2
  • Band: 2.4GHz
  • Receiver: AR8000
  • Programming Features: Airplane and Heli
  • Model Memory: 30
  • Modes: Selectable 1, 2, 3 or 4
• AR8000 Specifications:
  • Type: AR8000 DSM2 High-Speed 8-Channel Receiver
  • # of Channels: 8
  • Modulation: DSM2
  • Band: 2.4Ghz
  • Dimensions (WxLxH): 32.3 x 34.3 x 11.4 mm
  • Weight: 9.4g
  • Voltage Range: 3.5V-9.6V
• TM100 Specifications:
  • Type: TM1000 DSM2 Full Range Aircraft Telemetry Module
  • Modulation: DSM2
  • Dimensions (WxLxH): 30.0x43.0x13.0mm
  • Weight: 15.8g

Documentation and Support:

• DX8 Instruction Manual - EN, DE, FR, IT, ES (14.1 MB)
