Tamiya kits are fun, inexpensive kits you can build to begin learning about robotics and mechanical gears.
Category List
Tamiya Mechanical Rabbit Robot Kit
Item Details
Tamiya Mechanical Rabbit Robot Kit
Item Name:
Tamiya Mechanical Rabbit Robot Kit
Item #:
TAM-013-000
Manufacturer:
Tamiya
MPN:
71108
Your Price:
$18.00  $15.75
$14.96/ea. - Qty: 10 - 19
$14.18/ea. - Qty: 20 and above
Availability:
Not Available
Quantity:

Product Image Gallery:

The fastest robot in the series: The Mechanical Rabbit

Introducing the 8th wonder of the Robocraft series! Get ready, because here comes a super fun to assemble, super fast, super colorful Mechanical Rabbit. Motor rotating power is transferred to the legs via crank plates to make the rabbit hop. The long ears and the rounded face, which have been specially molded, employ semi-transparent parts, giving the rabbit a funky look. Assembly is very simple with use of screws and snap-lock parts.  For ages 10 and up.

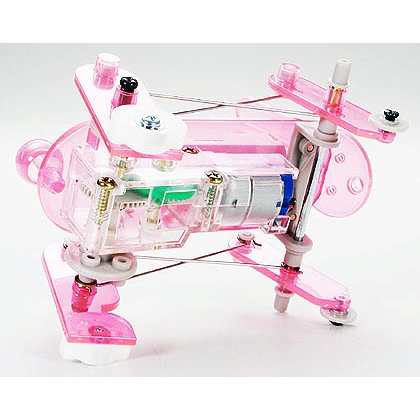

See-through transparent switch and gearbox

A see-through switch with pink transparent parts adds a cool, futuristic look. Moreover, this feature also allows you to see internal mechanisms.

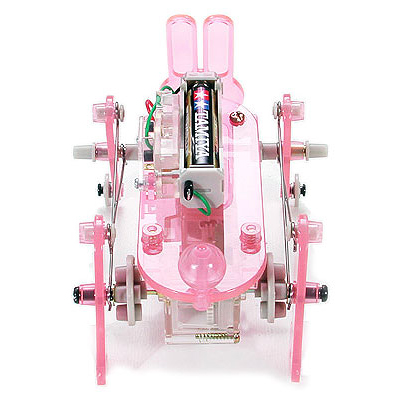

Battery moved forward for effective movement.

The Mechanical Rabbit is powered by only one R03/AAA/UM4 battery (sold separately) to keep this agile bunny light weight. Motor and battery case have been shifted to the front of the body to allow for smooth, unhindered rear leg movement.

Different movement for front and rear legs to make the rabbit hop.

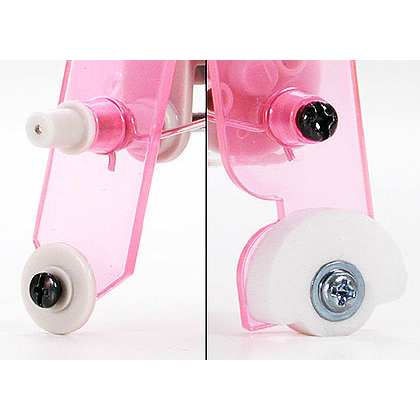

Motor rotating power is transferred to the legs via crank plates to make the rabbit hop. Rear legs kick the robot forward in a hopping motion similar to that of a...cute little bunny rabbit. As more of the weight is born by the front legs, rollers are attached to the feet to eliminate this extra load.

Features and Specifications:

  • Total length: 115mm
  • Total weight: 95g (w/ out batteries)
  • Body material: ABS resin
  • Gearbox, motor also included.
  • Includes guides to be attached on both sides to make the mechanical rabbit useable on Mini 4WD circuits.
  • A screwdriver for the assembly is provided.
  • Requires 1 AAA battery (not included)
  • Continuous running time with Alkaline battery, 40 min.




Get ready, because here comes a super fun to assemble, super fast, super colorful Mechanical Rabbit. Motor rotating power is transferred to the legs via crank plates to make the rabbit hop.
