Trekker Wheel Encoder Package (4 Sensors)

Description:

This package includes 4 - QRB1134 IR sensors(Data Sheet) to detect changes in the included encoder wheels. It also includes a bracket with all the necessary hardware to attach the sensors to the Trekker. Two sensors are used for the encoder wheels, the other 2 can be used to look at the floor and determine if there are holes/edges on the floor or white/black contrasts. You can also use these four sensors for Line Following with a Trekker Line Following Bracket.

The stickers attach to the 3.5" wheels or the 4.5" wheels sold with the Trekker Chassis. When the sensors are mounted about 0.2" away from the encoder wheels it will detect the changes between the black and white lines. The OOPic or other microcontroller can be programmed to respond to the sensor readings to keep the Trekker on track and tell it how far its traveled.

Includes:

(1) Encoder Disk Sheet
(6) Crimp Terminals
(1) Heat Shrink, 1/4" X 1"
(1) Heat Shrink, 1/8" X 3/4"

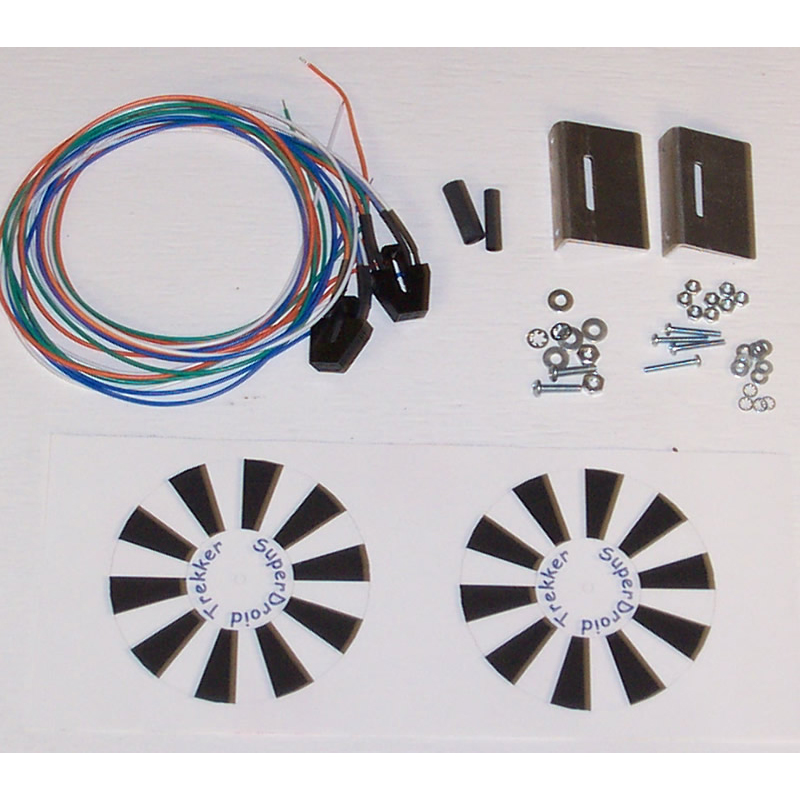

(4) QRB1134 Phototransistor With 24" Leads
(1) Receptacle, 6 CIR
(1) Hardware Package
(2) Aluminum, Bracket - Encoder

Item Options - Customize

Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.

*Assembly of Trekker Wheel encoder package includes soldering, crimping, and testing. It does not include mounting the encoder brackets.

Assemble Trekker Wheel Encoder Package (Add $11.00)

Item Price

Adjusted Price

$21.95

Related Items

Trekker Wheel Encoder Brackets

TS-027-000

These are two brackets that can mount to the bottom of the Trekker to hold photo reflectors. Black and white contrast disks are included that can be read by sensors to allow the microcontroller calculate how far the robot has traveled.

$16.95

Not Available
