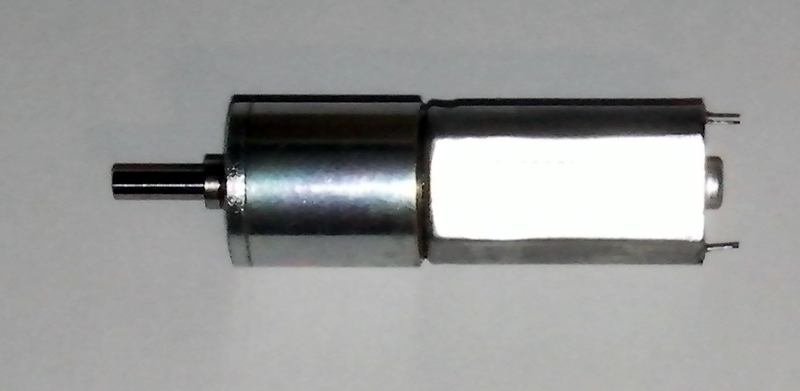

IG16 6VDC 051 RPM Gear Motor

Category
These Planetary Gear Motors are nominally 16mm in diameter. They are permanent magnet reversible DC gear motors. They operate at 6VDC and range from 9 to 219 RPM.
Category List
IG16 6VDC 051 RPM Gear Motor
Item Details
IG16 6VDC 051 RPM Gear Motor
Item Name:
IG16 6VDC 051 RPM Gear Motor
Item #:
TD-060-051
Your Price:
$18.54
In Stock!
Quantity:

Product Image Gallery:

Overview

  • Brushed permanent magnet DC motor
  • Variable speed and reversible
  • Small (16mm diameter) planetary Gear Box
  • Great motors for your smaller robotic applications
  • Final drive stages are steel gears (not plastic or sintered metal)

Specifications

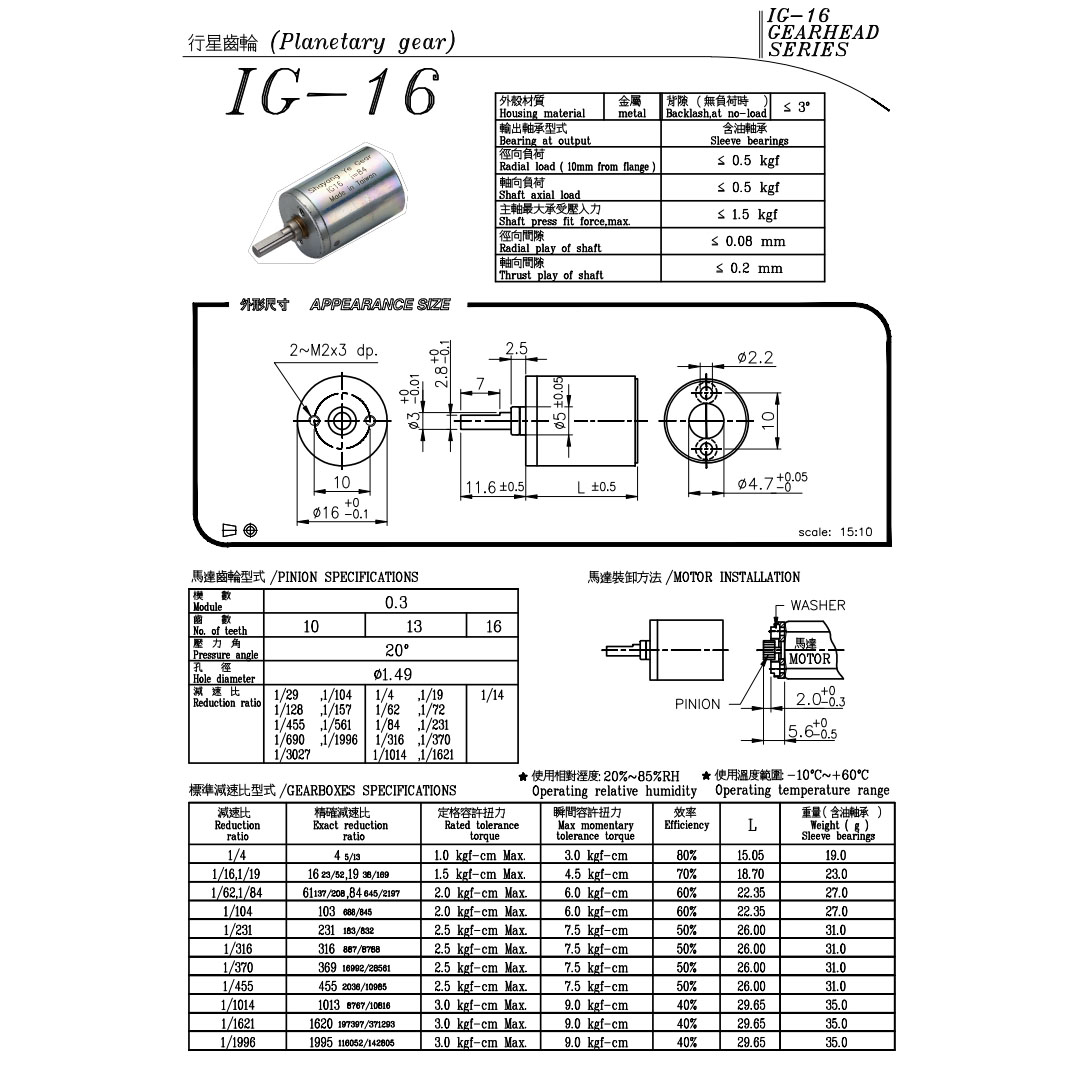

These specifications are listed with the "rated" values (these are the values where the motor runs at peak efficiency). The motors can deliver considerably more than their rated values, refer to datasheet images for more information.

  • 6VDC
  • Reduction Ratio: 1:128
  • Rated Torque: 560 g-cm
  • Rated Speed: 51 RPM
  • No Load Current: < 65mA

For conversion of the toque values, follow this link

Recommendations

We recommend controlling the motors with one of our motor speed controllers. See our motor controller support page for more information. We also recommend you use our wiring kit to wire your motors. The hookup kit will help suppress the electronic noise generated from any DC motor. See our motor wiring support page for more information.


With a gear ratio of 1:128 and a rated speed of 51 RPM, this 16mm diameter gearmotor is durable and perfect for small applications. These are excellent motors for robots.
