Custom Length ATR Side - IG52 SB
Item Details
Custom Length ATR Side - IG52 SB
Item Name:
Custom Length ATR Side - IG52 SB
Item #:
TD-081-000
Manufacturer:
SuperDroid Robots
Adjusted Price:
$103.55/ea. - Qty: 10 - 19
$98.10/ea. - Qty: 20 and above
Availability:
Built to Order: 1-3 days
Quantity:

Description:

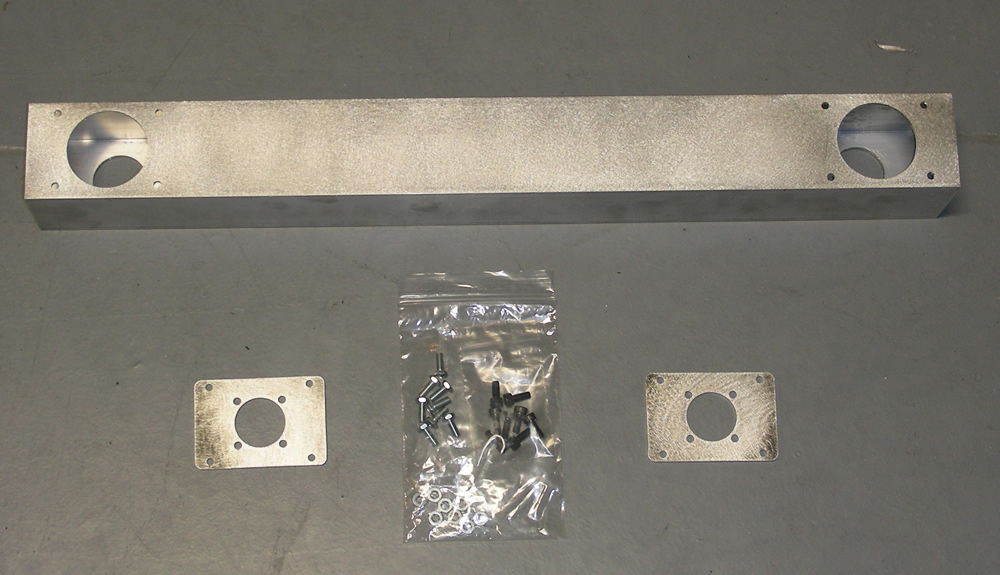

We machine it to a custom length. Using two of these you can make your custom sized robot. They support our ATR Wheel and Shaft Set Pair 12mm bore - 10 inch.

Features and Specifications:

  • 2.5" x 2.5" Aluminum tube with a 1/8" thick wall.

Two motor adaptor plates are provided with hardware to mount IG52 planetary gear motors to the chassis side. The width of robot is up to you, it must be at least (the length the gear motors + 2.5" tube + 1/8" adaptor plate) x 2. A simple piece of plywood, aluminum, or acrylic can be used to tie the two side together or the sides can be bolted onto your own robot chassis.

The tube structure uses the bearings in the above linked wheel kits to support the axle. The other side of the axle is supported by the motor. This provides a much stronger attachment for the wheels and the load is put on a heavy duty bearings and tube instead of the motor. Direct coupling a wheel to the motor will just ruin a motor quickly.

Available Options:

(Selected Below)

Below you can specify the center to center length of the side. This will be the distance from one bearing/axle to the next. Specify the center to center length of the axles in inches. Total length of side will be an additional 4 inches. (i.e. there is 2" of tube past each axle center. The maximum center to center is 32.5 inches, the minimum is 11 inches.

Item Options - Customize
Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.

Specify the center to center length of the axles in inches. Total length of side will be an additional 4 inches. Maximum center to center is 32.5 inches, minimum is 11 inches.

Custom Center to Center Length in inches
Item Price
Adjusted Price
$109.00




This is a 2.5" x 2.5" Aluminum tube with a 1/8" thick wall machined to a custom length. Using two of these you can make your custom sized robot with IG52mm motors.
