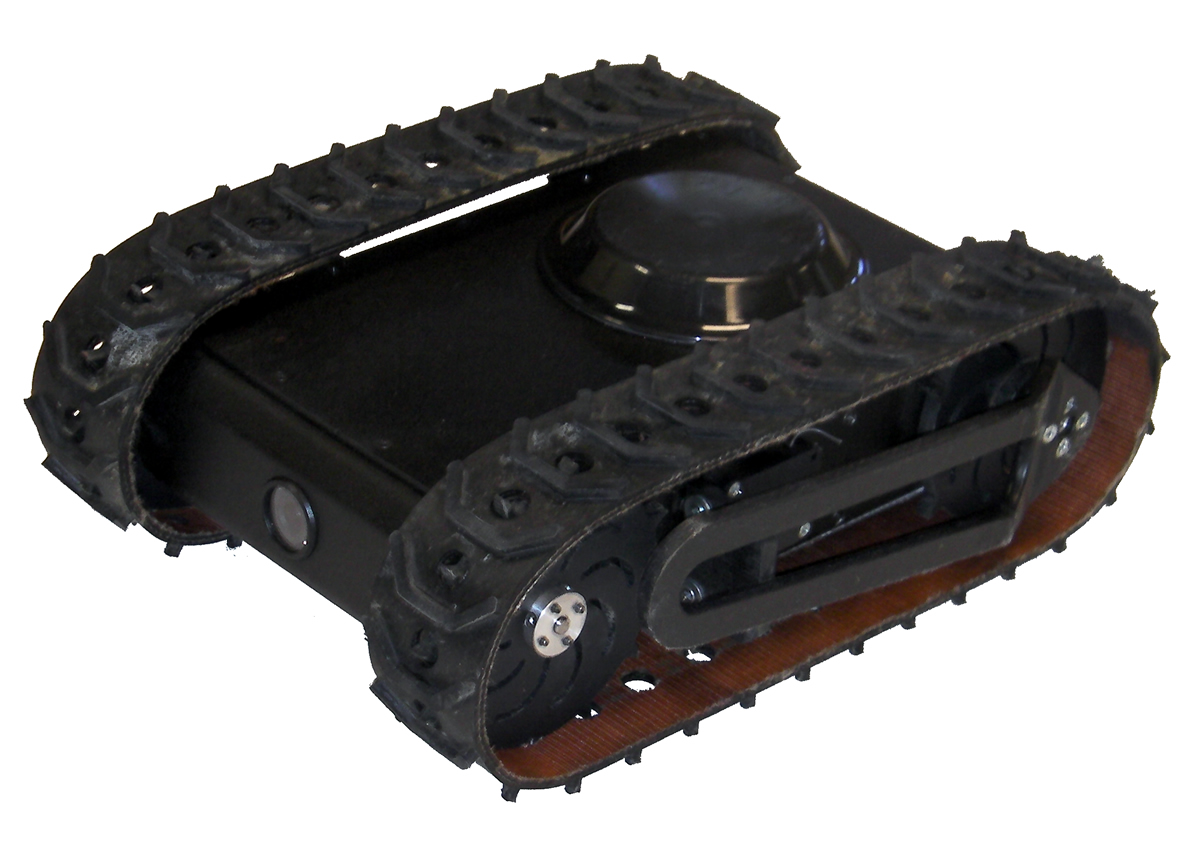

SuperDroid Robots Compact MLT Tactical Surveillance Robot.  It weighs less than 8lbs and is drop resistant up to 10 feet. The treaded design and rear flipper arms allow this robot to climb many obstacles other throwable robots can't touch!

PDF Datasheet of the MLT Compact Surveillance Robot Package.

MLT Robot Specifications:

• Enclosed treaded robot chassis.
• Chassis made from heavy gage aluminum that is laser cut and CNC bent.  Chassis seams are welded.  Entire body is coated flat black.
• Robot drop resistant to 10 feet.
• IR Camera in nose of robot.  Color image with ambient light.  Black and White in night mode.

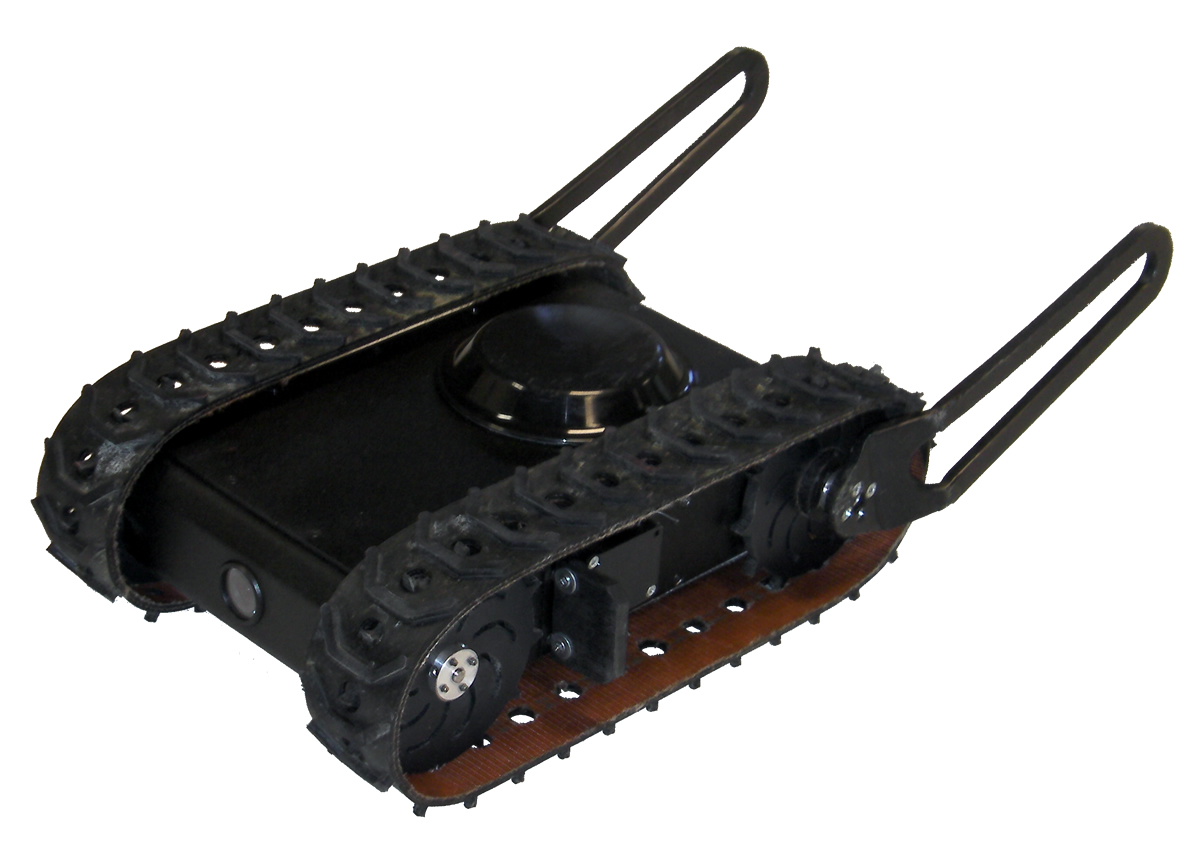

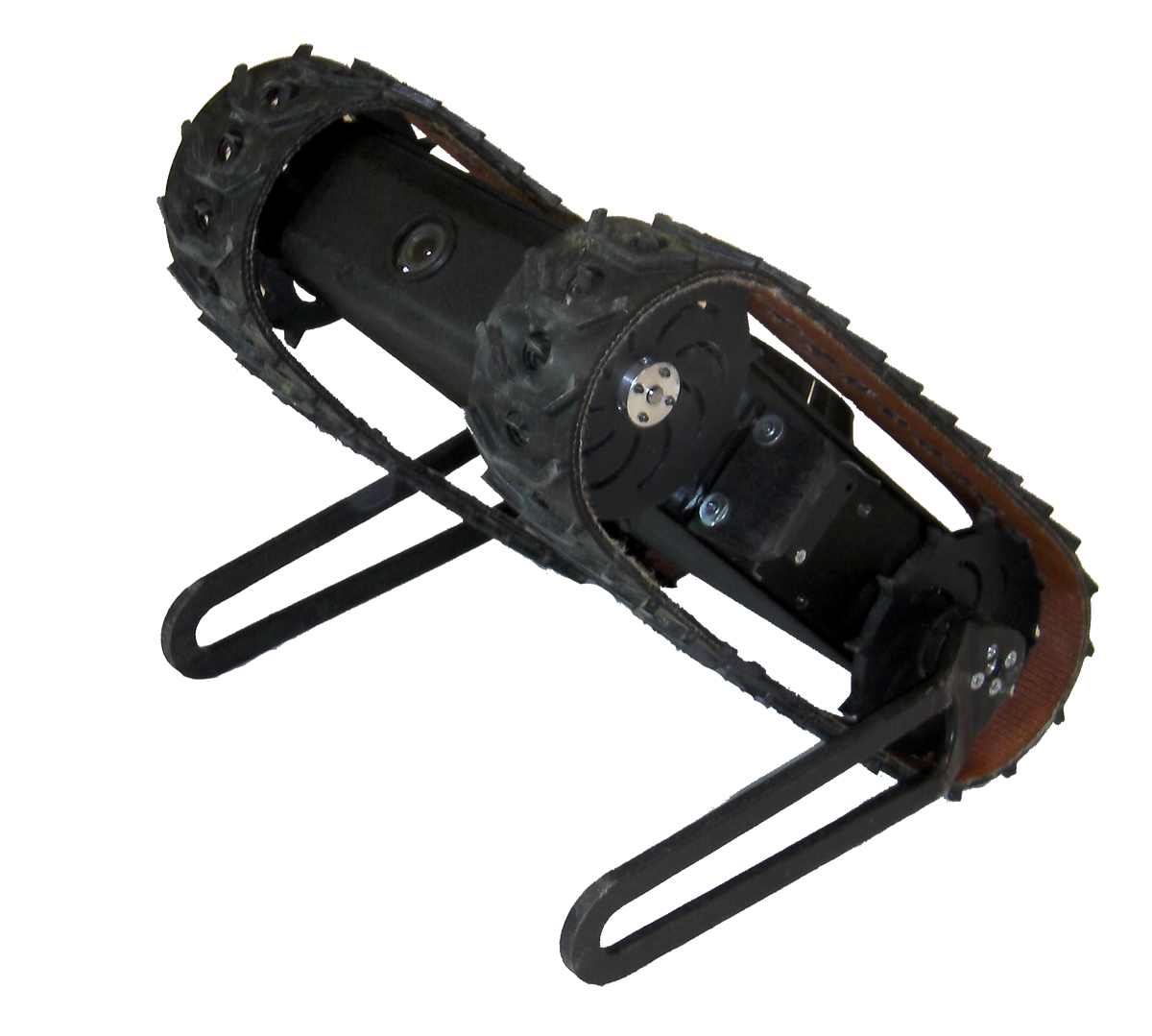

• Flipper Arm/Stabilizer arm can be used to climb over objects up to 10 inches high.  The arm can be used as a wheelie bar or stabilizer.  Arm can self-right the robot if inverted.  A skilled operator can climb household stairs.
• Compact design with all components carefully placed for optimum spacing and most effective operation using solid modeling 3-D CAD software
• Two (2) planetary gear motors - one per side
• Motor controllers for variable speed and direction
• One 14.4VDC 2.2Ahr Li-Ion drive battery. Run time ~1 to 4 hours depending on use
• One 11.1VDC 1.8Ahr Li-Ion video power battery.  Run time ~4 hours
• Toggle Power Key Switch
• Total weight of fully assembled robot: ~7.5lbs
• 3.75” Composite cogged wheels that match a positive traction aggressive all terrain tread
• Total height (floor to top of treads): ~4.375 inches, total width: ~9.5 inches, total length: ~12.75 inches
• Ground clearance: ~1 inches
• Speed: 0 to 100 feet per minute, infinitely adjustable/controllable

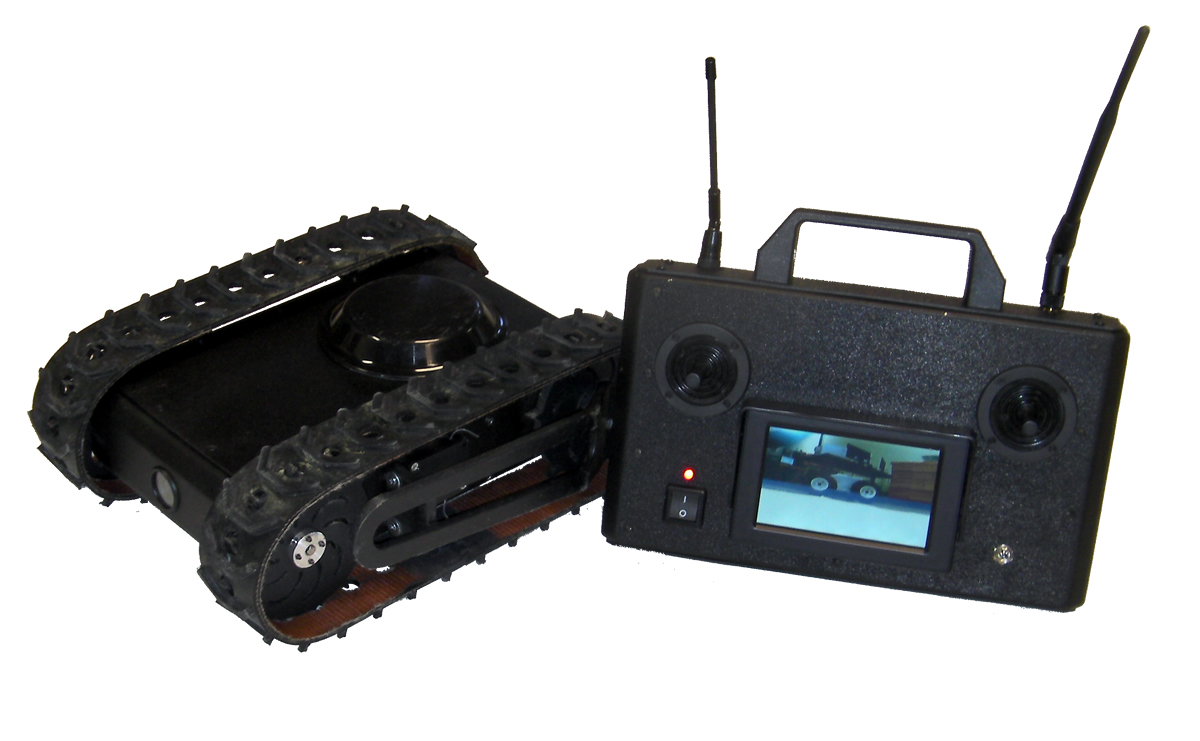

• The MLT is designed with a matching remote.
• Please follow this link for information on our remotes.
• The Remotes we sell include the Lithium Ion video battery for the robot as well as the remote.
• Please contact us if you have any questions or need help selecting a remote.
• As an option below you can select a secondary monitoring station, which provides a 2nd monitor to view the video feed of the robot.  This is a great accessory ofr  a second entry team, etc.

• Multiple chargers mounted on one bracket. The chargers are for the 24V motor batteries, 12V video/control battery, and 12V control console battery.
• The chargers are fully automatic and will charge all the batteries simultaneously.
• Chargers are included in a case for easy storage and operation.
• As an option add-on for the charger is a timer with cutoff circuit. The chargers should not be left on indefinitely. This feature provides a weekly timer that will maintain the batteries so they are always topped off and ready for use even after long storage.

• The MLT comes standard with an IR camera for night vision.  For added visibility this option adds high intensity LED lights to the nose of the robot.  The Lights are embedded in ABS plastic with a Lexan cover to protect them.  The lights are wired into the robot’s drive power and can be remotely tuned on and off.
• The MLT can have a microphone added to it along with a high gain amplifier.  The audio will then be relayed back to the remote with the video transmitter and receiver.  The remote will be modified to include a standard headphone jack to plug in headphones to hear the audio.

Samples/Demos:

• We are shipping out samples. If you wish to sample before you buy please contact us.
• Due to the high demand of the demos, we are also offering a 30 day satisfaction guarantee. Contact us for details.

Delivery:

• These robots are built to order. Please allow 3-6 weeks for delivery.
• Actual delivery may vary based on workload, contact us for a more accurate delivery time.
• Contact us if you need expedited delivery.

This robot can be customized:

• We have set this item page us so you can buy just the robot or replace the robot.  The remote and battery charger are seperate items and are required for this robot to work.
• See our data sheet for details and pricing of the options and call us for a formal quotation. Some of the options can be selected below in the options section.

Videos:

• Below are YouTube videos of a MLT.
