SuperDroid Robots is a authorized reseller of this authentic Arduino product.

Description:

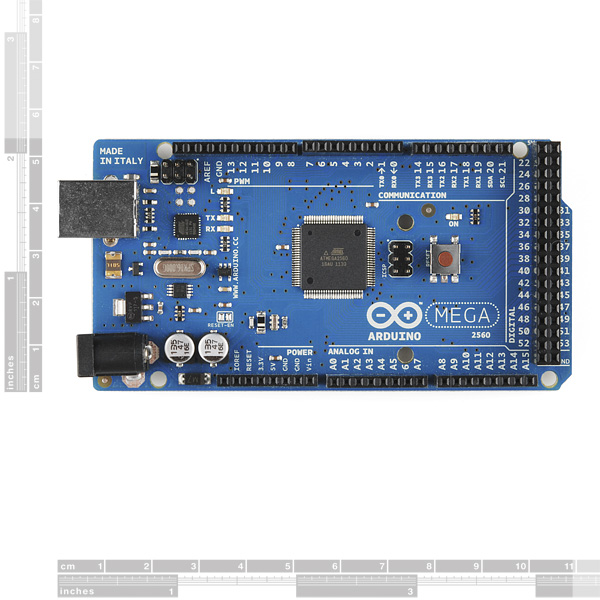

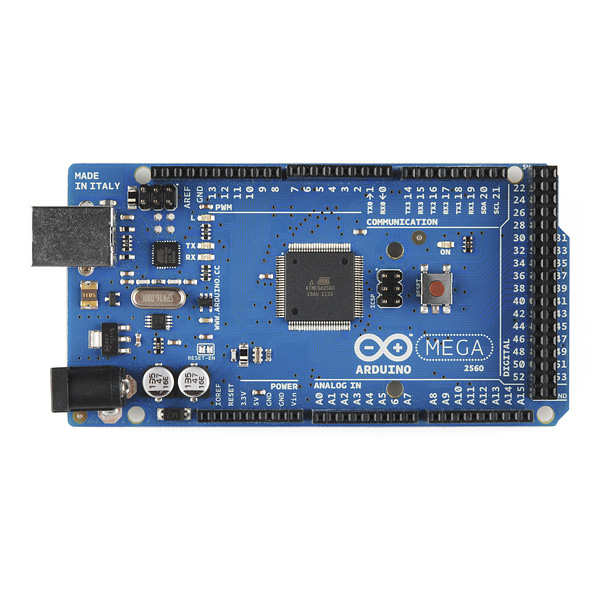

The Arduino Mega 2560, the successor to the Arduino Mega, is a microcontroller board based on a ATmega2560 AVR microcontroller. It has 70 digital input/output pins (of which 14 can be used as PWM outputs and 16 can be used as analog inputs), a 16 MHz resonator, a USB connection, a 2.5mm center positive barrel jack, an in-circuit serial programming (ICSP) header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

The Mega 2560 differs from the preceding Mega in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega8U2 programmed as a USB-to-serial converter. This auxiliary microcontroller has its own USB bootloader, which allows advanced users to reprogram it.

The Arduino has a large support community and an extensive set of support libraries and hardware add-on “shields”

The Arduino Mega revision R3 adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that is meant to allow shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes. The Mega 2560 R3 works with all existing shields but can work with new shields that use these additional pins.

Features and Specifications:

• Microcontroller: ATmega2560
• Operating voltage: 5 V
• Input voltage (recommended): 7-12 V
• Digital I/O pins: 70 (of which 14 provide PWM output)
• Analog input pins: 16*
• DC current per I/O pin: 40 mA
• DC current for 3.3V pin: 50 mA
• Flash memory: 256 KB of which 8 KB used by bootloader
• SRAM: 8 KB
• EEPROM: 4 KB
• Clock speed: 16 MHz
• Size: 4" x 2.1"
• Weight: 36 g
• Processor: ATmega2560 @ 16 MHz
• RAM size: 8 Kbytes
• Program memory size: 248 Kbytes
• Motor channels: 0
• User I/O lines: 70 (See Note 1)
• Max current on a single I/O: 40 mA
• Minimum operating voltage: 7 V
• Maximum output voltage: 12 V
• Reverse voltage protection?: N
• External programmer required?: N (See Note 2)

The Arduino Mega 2560 has 70 total available I/O lines; all of them can function as digital I/O lines, and sixteen of them can be used as analog inputs.

More information about the Arduino Mega 2560 is available on Arduino’s website.

The Arduino Mega 2560 does not include a USB cable, batteries, or a DC power adapter. No external programmer is required.

Notes:

1. All 70 can used as digital I/O and 16 can be used as analog inputs.
2. An external programmer is required for setting the fuses or upgrading the bootloader.

Documentation and Support:

• Arduino Mega 2560 schematic (315k pdf)
• Arduino Mega 2560 EAGLE reference design (144k zip)
• Arduino Mega 2560 Detailed description of the Arduino Mega 2560.
• How to get Arduino running on Windows A tutorial for setting up an Arduino environment on Windows.

• Arduino Software Arduino integrated development environment (IDE) software
• Arduino Programming Reference

• Arduino Forum
