Description:

This is a prebuil robot that was used slightly for demonstrations. Ready to ship, fully assembled and ready to run. The robot is configured as listed below. If you desire a custom configuration please follow this link and select the options at the bottom of the page. If you require further customization, please fill out our custom robot request form.

***This robot comes with an upgraded industrial handheld controller.***

Overview:

The UM4 robot is a complete, pre-assembled robot with an older roll cage. This surveillance robot is a very portable robot weighing only 14 pounds. Each of its 4 wheels are driven by independent powerful gear motors. The system comes with everything you need to go to work, whether its inspecting crawl spaces under houses or providing a first line of defense in tactical situations . The built in infrared camera allow you to see in total darkness, under normal light its a high quality color image. The video is displayed real time on the included 7" wide color LCD. Follow this link for the data sheet for more information.

Included:

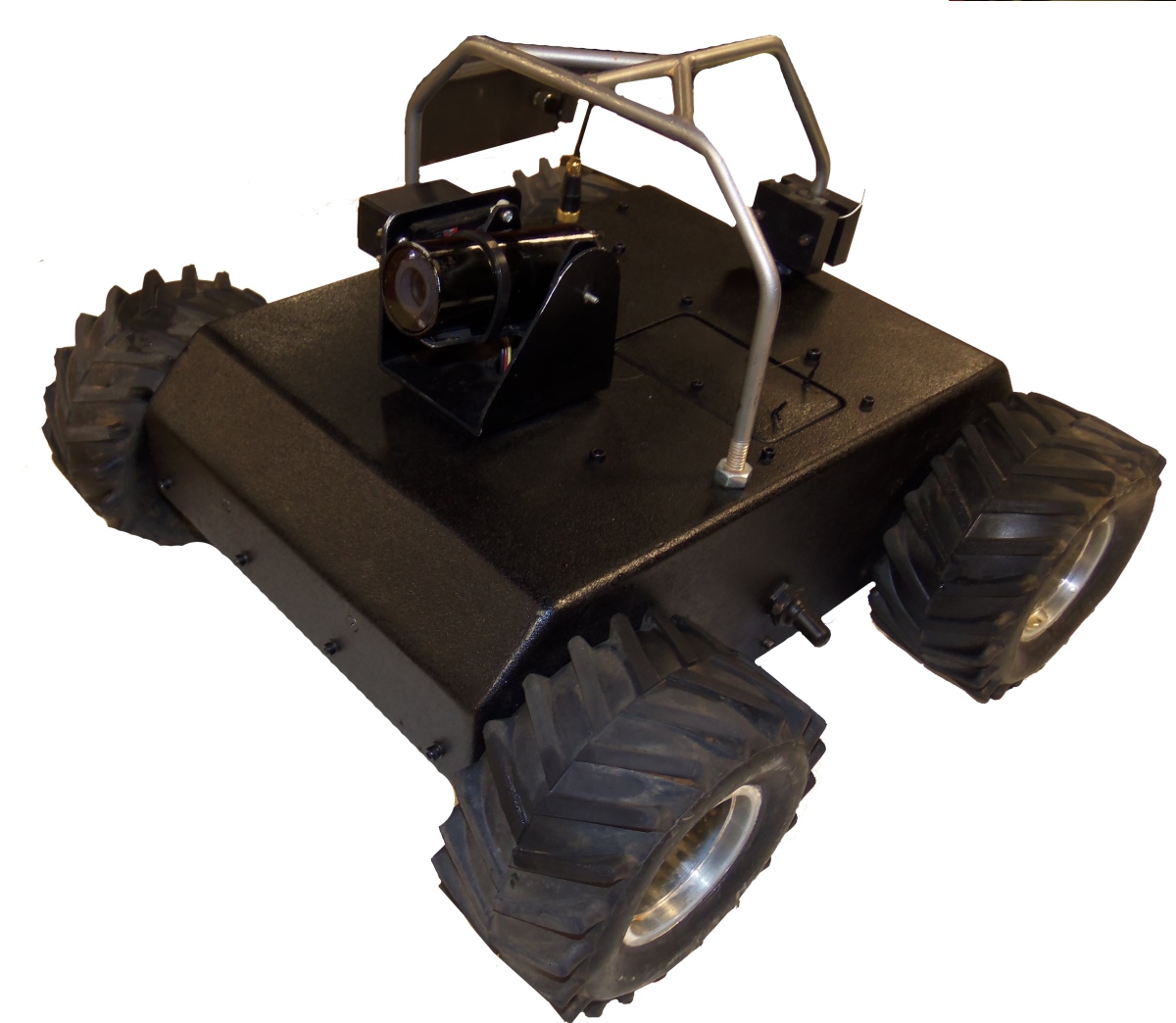

• Completely enclosed 4WD robot chassis with integrated pan and tilt camera system (actual robot pictured above)
• Industrial Handheld Remote Console (actual remote pictured above)
• Compact design with all components carefully placed for optimum spacing and most effective operation using solid modeling 3-D CAD software
• Four (4) planetary IG32P 265RPM 24VDC gear motors - one per wheel
• 22.2VDC 3000mAhr Li-Ion drive battery. Run time 1.5 to 8 hours depending on use
• 11.1VDC 5000mAhr Li-Ion video power battery. Run time 7-10 hours
• Custom 10Amp dual motor controller specifically designed for this robot
• Industrial handheld RC controller (See our support page for help with your controller)
• Fuse blocks, terminal blocks, charging ports, switch, etc. all integrated into the design
• Integrated roll cage that doubles as a carrying handle
• Integrated low profile pan and tilt system with color camera and 10 LED total darkness night vision
• Chassis made from heavy gage aluminum that is laser cut and CNC bent. Chassis seams are welded. Entire body is painted flat black.
• Total weight of fully assembled robot: 14lbs
• Total height (floor to top of roll cage): 9 inches, total width: 13.25 inches, total length: 13.5 inches
• 5” foam filled All-Terrain tires and rims
• Ground clearance: 1.25 inches
• Speed: 0 to 6 feet per second, infinitely adjustable/controllable

Video Transmission:

• Video is sent back with a 900MHz transmitter. The receiver is mounted to the RC controller or in the Pelican case and the video is transmitted to the 7” color LCD.

Smart Chargers:

• The chargers are for the 24V motor batteries, 12V video/control battery, and 12V control console battery.
• The chargers are fully automatic and will charge all the batteries simultaneously.

Delivery:

• This robot is prebuilt, please allow 1-2 days for shipment.
• Contact us if you need expedited.
