SDR Custom Arduino Mega Shield
Item Name:
SDR Custom Arduino Mega Shield
Item #:
MCU-055-000
Your Price:
$59.95
In Stock!
Quantity:

Description:

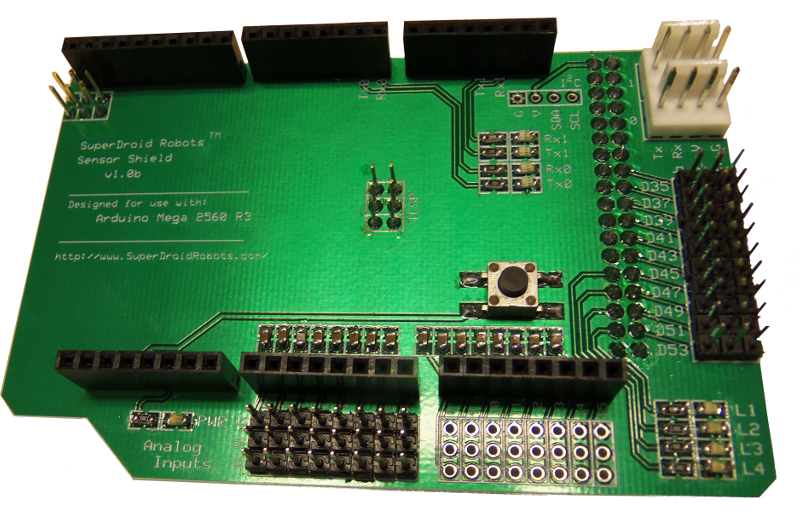

This is an SDR custom shield designed for the Arduino Mega 2560 microcontroller. It's designed to provide easy access to the board's I/O pins without compromising the ability to connect additional shields.

Specifications:

  • 2 4-ppin UART headers
  • 4 I2C Headers
  • 15 Digital I/O with accompanying 5V and ground pins
  • 16 analog inputs headers. Two with accompaning voltage dividers.
  • 4 Status LEDs
  • 4 UART communication LEDs
  • Reset button
  • Pass through headers for ICSP
  • Designed to be compatible with the Arduino Ethernet Shield R3

Connect peripherals with ease and without interfering with any attached shield.
