 Pololu Zumo Shield for Arduino
Item Details
Pololu Zumo Shield for Arduino
Item Name:
Pololu Zumo Shield for Arduino
Item #:
TE-168-000
Price with Selected Options: (See 'Options' Below):
$20.96
In Stock!
Quantity:

Product Image Gallery:
Pololu Zumo Shield for Arduino

Overview

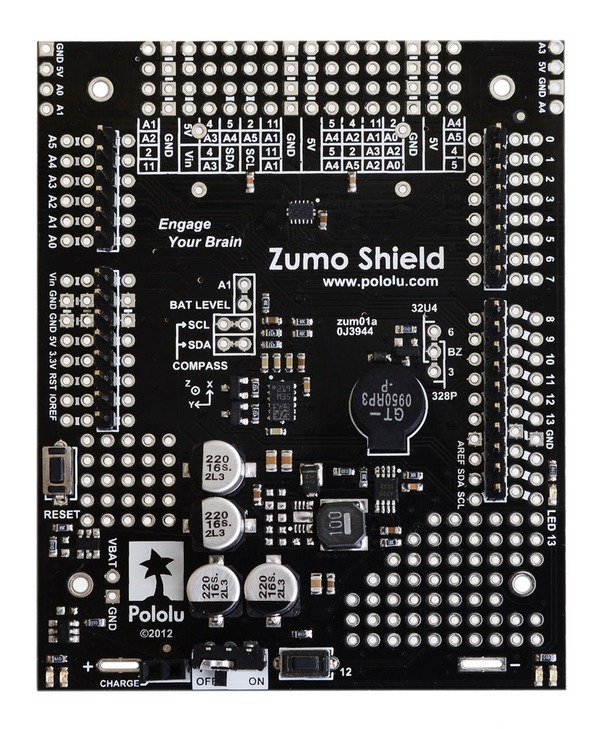

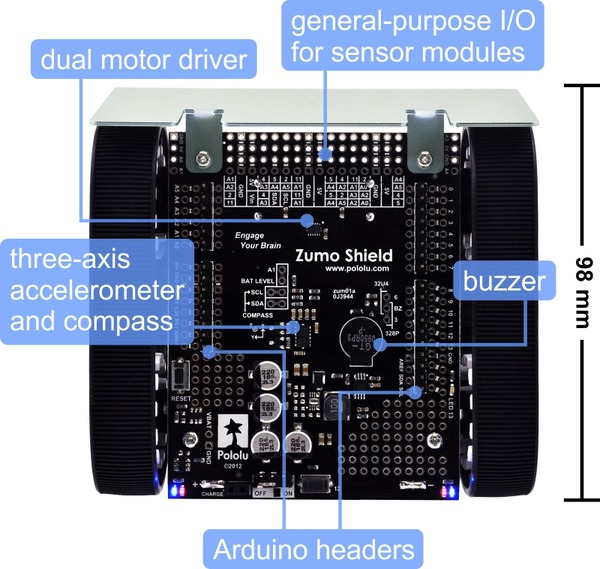

The Zumo Shield is designed specifically to be a convenient interface between a Zumo chassis and an Arduino Uno or Arduino Leonardo. The shield mounts directly to the chassis, connecting to its battery terminals and motors, and the Arduino plugs into the shield’s male header pins, face down. The shield provides all the electronics necessary to power the motors and includes some additional fun components for making a more interesting robot, such as a buzzer for making sounds and a 3-axis accelerometer and compass.

With the Zumo Shield and an Arduino, the Zumo chassis becomes a low- profile, Arduino-controlled tracked robot that is less than 10 cm on each side (small enough to qualify for Mini-Sumo competitions). It works with a variety of micro metal gearmotors to allow for a customizable combination of torque and speed, and a stainless steel sumo blade is available for applications that involve pushing around other objects. Arduino libraries and sample sketches are available for quickly getting a Zumo robot up and running.

Included Components

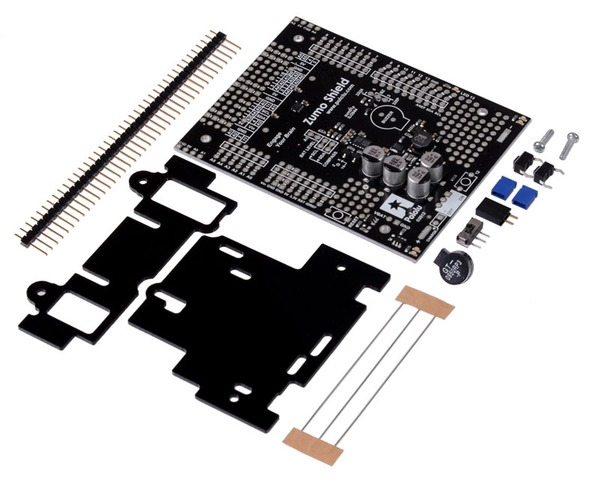

The Zumo Shield ships with all of the components required for shield assembly, as shown in the main product picture. Note that soldering is required; please see the user’s guide for detailed assembly instructions. The shield does not include motors or the Zumo chassis itself, though it is available as part of a combination deal with the Zumo chassis and Zumo blade.

Required Accessories (not included)

To use this shield you will need a few additional parts:

  • A Zumo chassis kit. This shield is also available as part of a combo product with the Zumo chassis kit and a Zumo blade.
  • Two micro metal gearmotors. These gearmotors are available in several power options and a wide variety of gear ratios, allowing for a customizable combination of torque and speed. The Zumo Shield can deliver enough power for all of the micro metal gearmotors we carry, including the high-power (HP) versions. Note that some gear ratios are better suited for the Zumo than others; please see the Zumo chassis kit product page for specific motor suggestions.
  • Four AA batteries. The Zumo chassis works with both alkaline and NiMH batteries, though we recommend rechargeable NiMH cells.
  • An Arduino. The Zumo Shield works with both the Uno and the Leonardo. It is not compatible with the Arduino Mega or Due, but it can be used with older Arduinos that have the same form factor as the Uno, such as the Duemilanove.

Documentation

Item Options - Customize
The default items have already been selected, but you can customize this item by expanding the options below and changing your selections. Please contact us if you have any questions.

Would you like to add the Zumo Robot Kit or Zumo Chassis Kit?

(Qty 1) None

We offer three different types of gear motors that are compatible with the Zumo robot.

(Qty 1) None

Check the box below to add two AA batteries.

Here are the Arduino controllers we offer that are compatible with the Zumo.

(Qty 1) None
Item Price
Price with Selected Options:
$20.96

 This shield mounts onto an assembled Zumo chassis and makes it easy to build an Arduino-controlled Zumo robot.
