Arduino Nano 3.0

Category
We have an array of programmable Arduino controllers. Using the top open-source platform for robot software development, our Arduino controllers provide the stability and performance desired by those experienced with designing robots.
Category List
Arduino Nano 3.0
Item Details
Arduino Nano 3.0
Item Name:
Arduino Nano 3.0
Item #:
MCU-057-000
Your Price:
$35.95
In Stock!
Quantity:

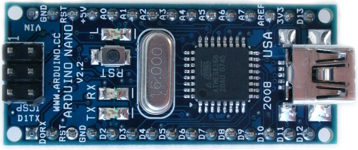

Arduino Nano 3.0 Overview

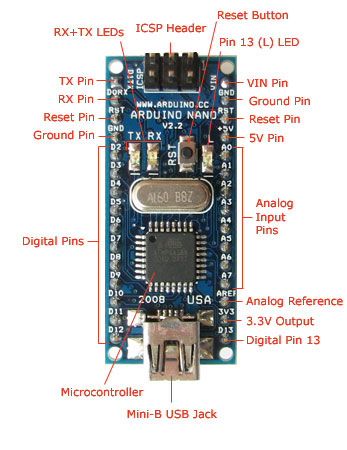

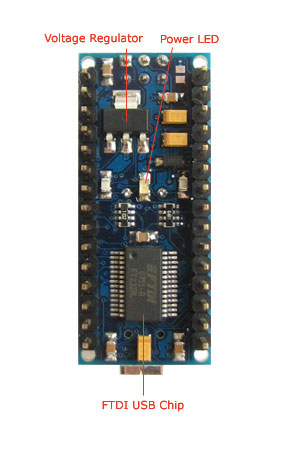

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328. It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.



Arduino Nano 3.0 Specifications

  • Microcontroller: ATmega328
  • Operating Voltage (logic level): 5 V
  • Input Voltage (recommended): 7-12 V
  • Input Voltage (limits): 6-20 V
  • Digital I/O Pins: 14 (of which 6 provide PWM output)
  • Analog Input Pins: 8
  • DC Current per I/O Pin: 40 mA
  • Flash Memory: 32KB - 2 KB used by bootloader
  • SRAM: 2 KB (ATmega328)
  • EEPROM: 1 KB (ATmega328)
  • Clock Speed: 16 MHz
  • Dimensions: 0.73" x 1.70"

Arduino Nano 3.0 Resources


The Arduino Nano is a small, complete and breadboard friendly board based on ATmega328 (Arduino Nano 3.0)
