 4WD Enclosed Tactical Robot with Scissor Lift and PTZ camera
Item Details
4WD Enclosed Tactical Robot with Scissor Lift and PTZ camera
Item Name:
4WD Enclosed Tactical Robot with Scissor Lift and PTZ camera
Item #:
TP-600-130
Price with Selected Options: (See 'Options' Below):
$7,987.16
Built to Order: 4-8 Weeks
Quantity:

Product Image Gallery:
4WD Enclosed Tactical Robot with Scissor Lift and PTZ camera

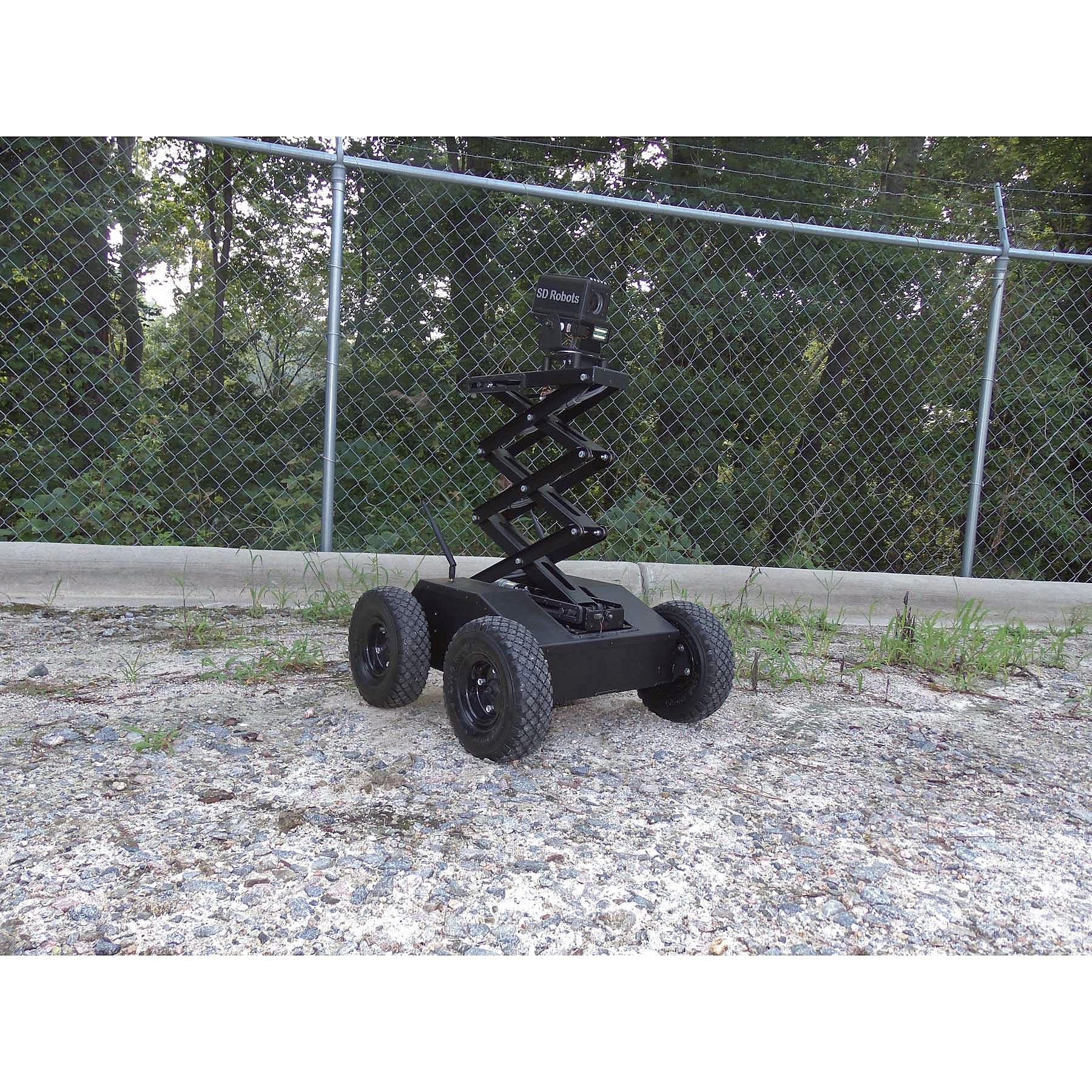

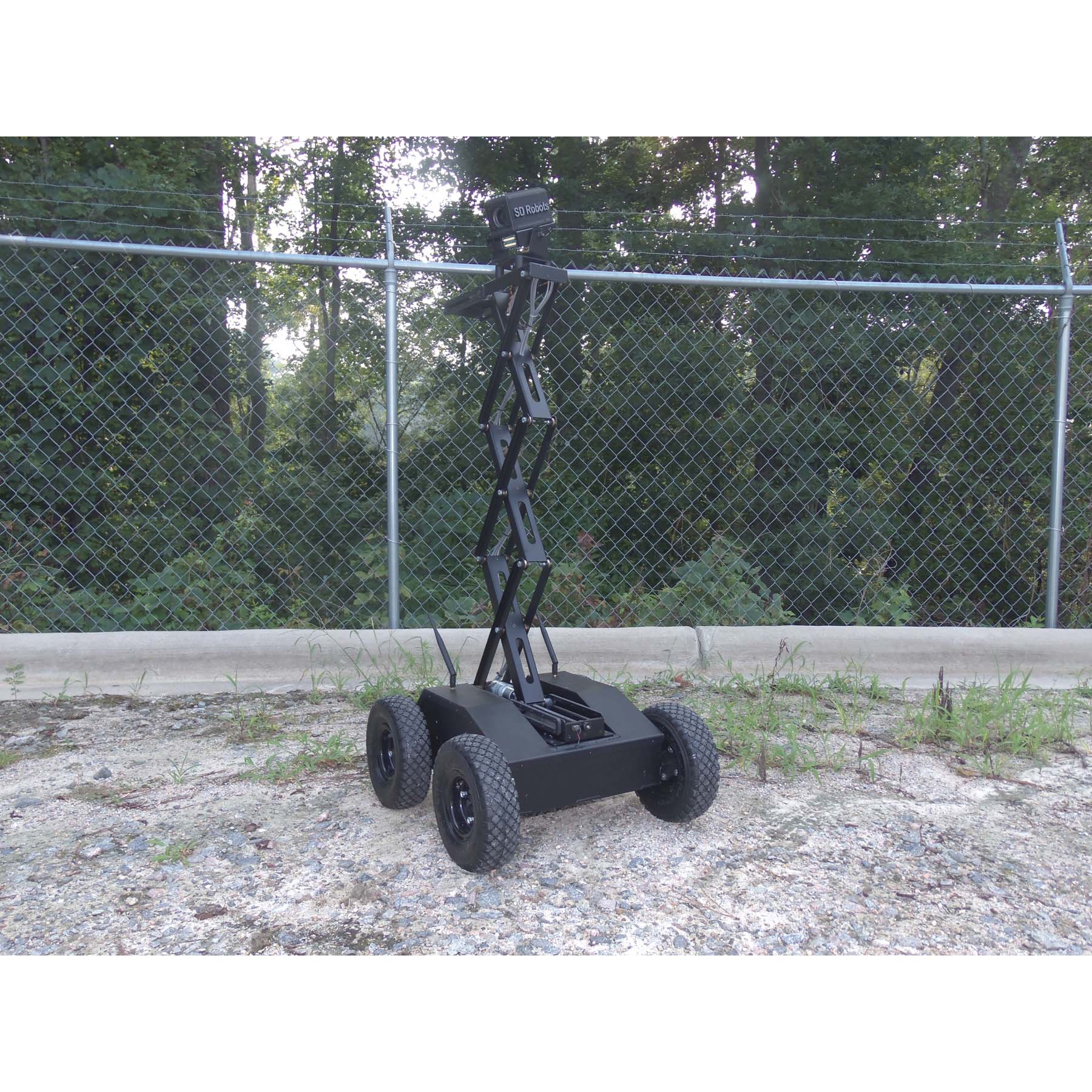

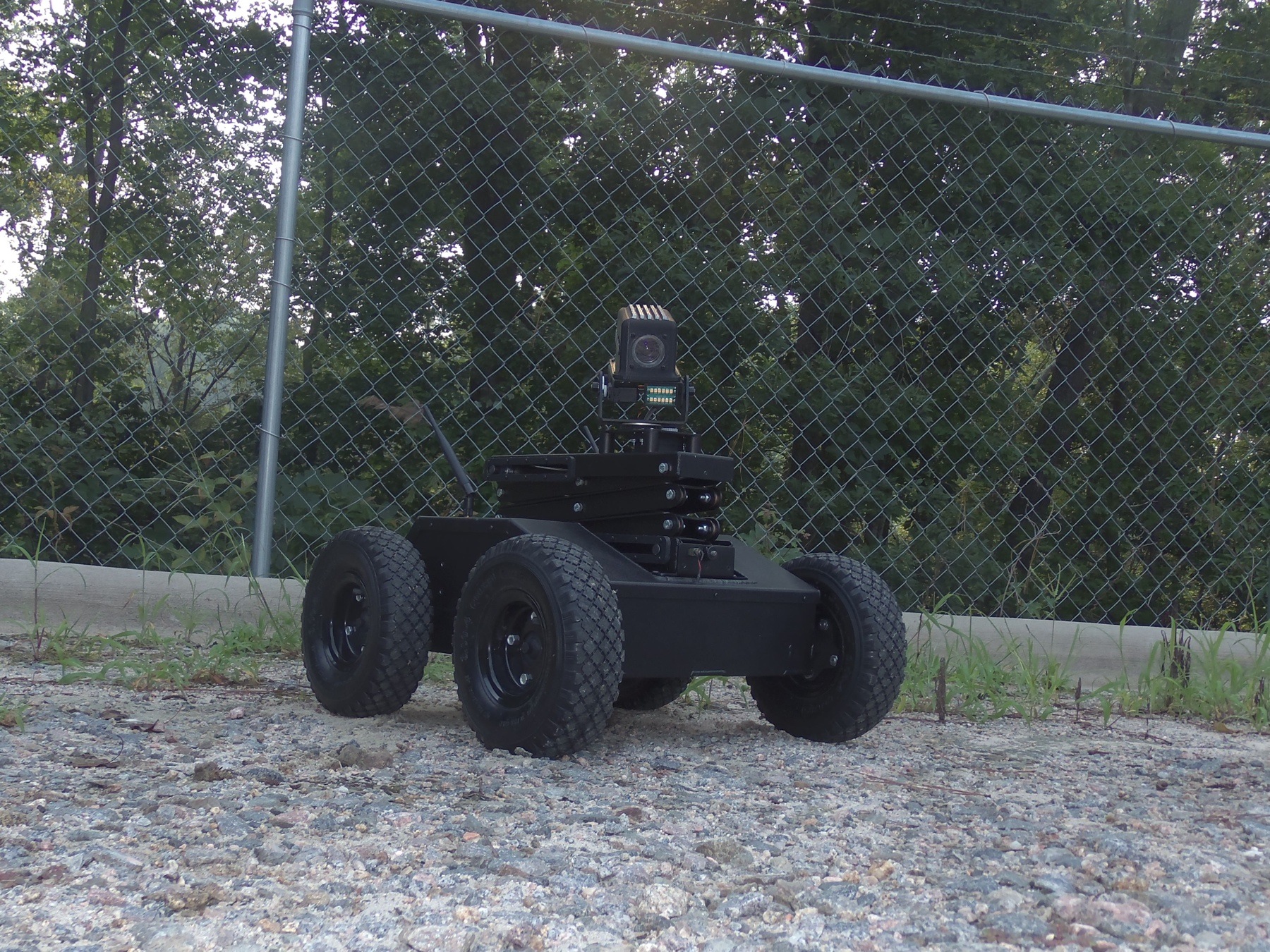

The image gallery displays possible configurations of this robot. See description and options below to configure your robot.

Description:

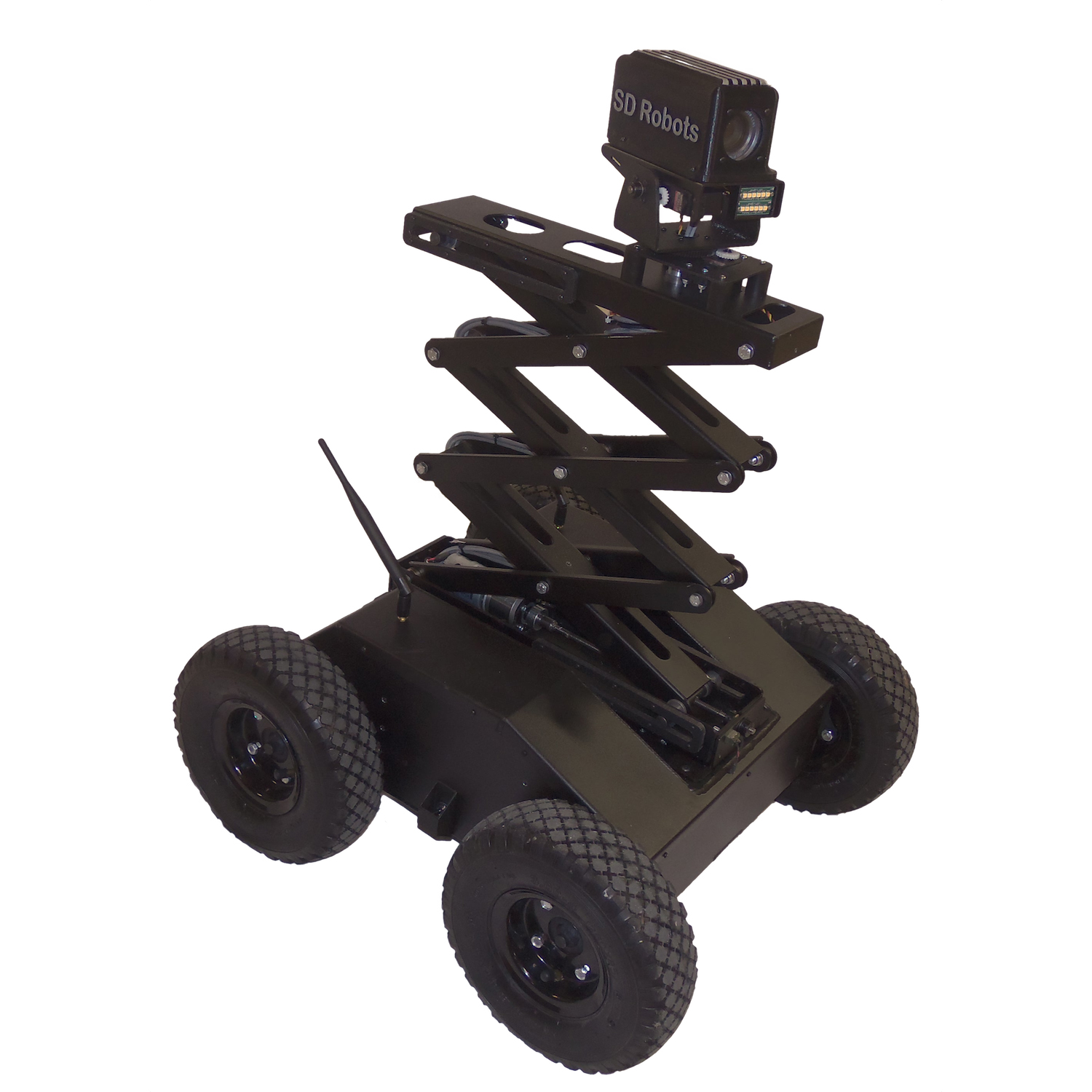

This is SuperDroid Robots enclosed wheeled All Terrain Robot with scissor lift PTZ camera. This robot is a great surveillance robot that allows you to see over countertops, on top of beds, through windows, etc. that most low profile robots cannot achieve. The 4WD platform, with 10inch pneumatic tires, allows this robot to easily navigate over most terrains. The PTZ camera has a 27X optical zoom so all details of any situation can be observed. The tactical remote allow the operator to control all the functions of the robot and see everything with the PTZ camera.

This robot design was developed for Law Enforcement and Military purposes, but can be purchased and used by anyone. The robot can also be customized with HAZMAT sensors, etc., please contact us if you need the robot customized.

Applications:

  • Multiple Heights of Surveillance - This robots functionality allows for surveying bed tops, countertops, windows, and other areas where surveillance height is required.
  • Hostage and hazardous surveillance - Survey hostile/hazardous situations staying out of harm's way.
  • Clearing rooms remotely - Clear rooms and buildings remotely with audio and video surveillance.
  • Remote Surveillance - The 360 Pan and tilt with 27X optical zoom camera with low light vision and high intensity LED lights allow the robot to see everything.
  • Entry into difficult areas: - This 4WD robot is very quick and has the ability to traverse many obstacles that often stop other robots.

Standard Configuration:

This tactical surveillance robot comes with the recommended and most popular set up. By changing, adding or removing features at the bottom of this page you can configure the robot to suit your needs and budget.

  • Platform: Enclosed, wheeled, All Terrain Robot modified to accept the scissor lift. This includes the chassis, 4 heavy duty gear motors for the drive, the wheels, motor controller, (2)batteries, wiring, assembly, testing, etc.
  • Scissor Lift Assembly: The lift raises the camera to a height over 4ft and collapses to a height of 1.5ft
  • Camera System: Pan and Tilt with a 27X Optical Zoom Camera mounted inside a custom camera housing

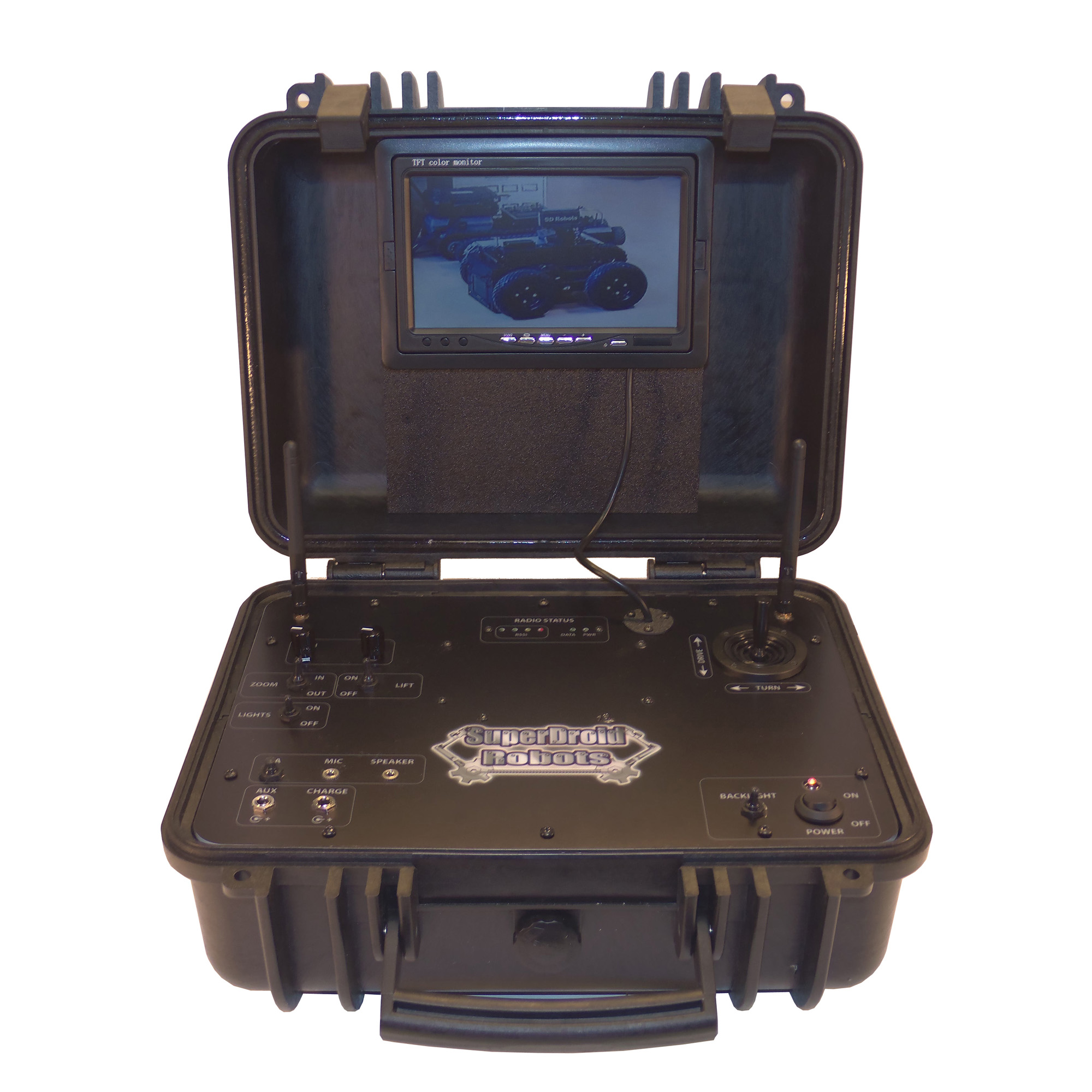

  • Tactical OCU: Enclosed Case 2.4Ghz Digital Tactical Robot Controller with a 7" color LCD monitor.
  • Battery Charging: The chargers are fully automatic and will charge all the batteries simultaneously.
  • Robot Run Time: Up to 4 hours.
  • Speed: 0 to 5 feet per second, infinitely adjustable/controllable.
  • Weight: The robot weighs about 54 lbs

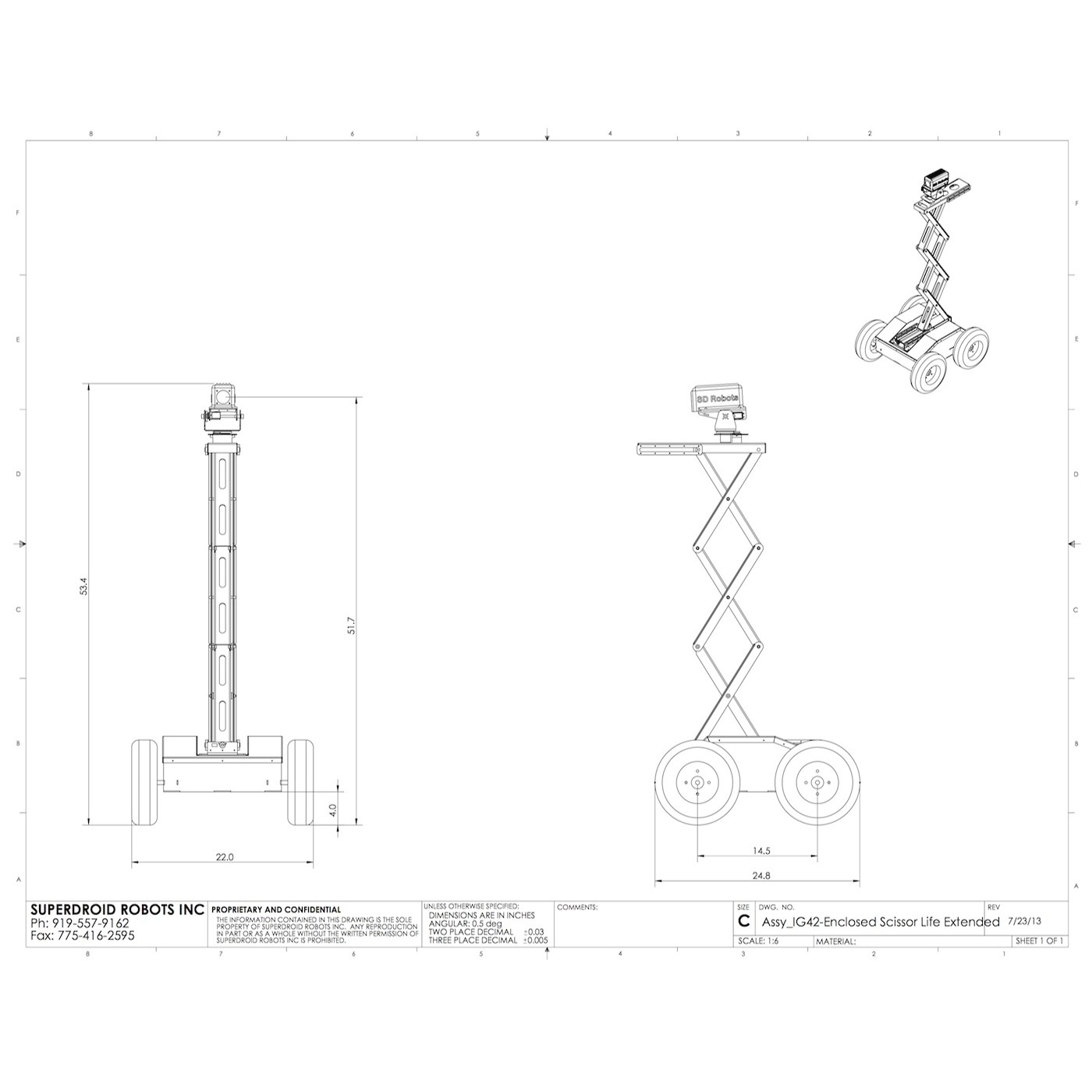

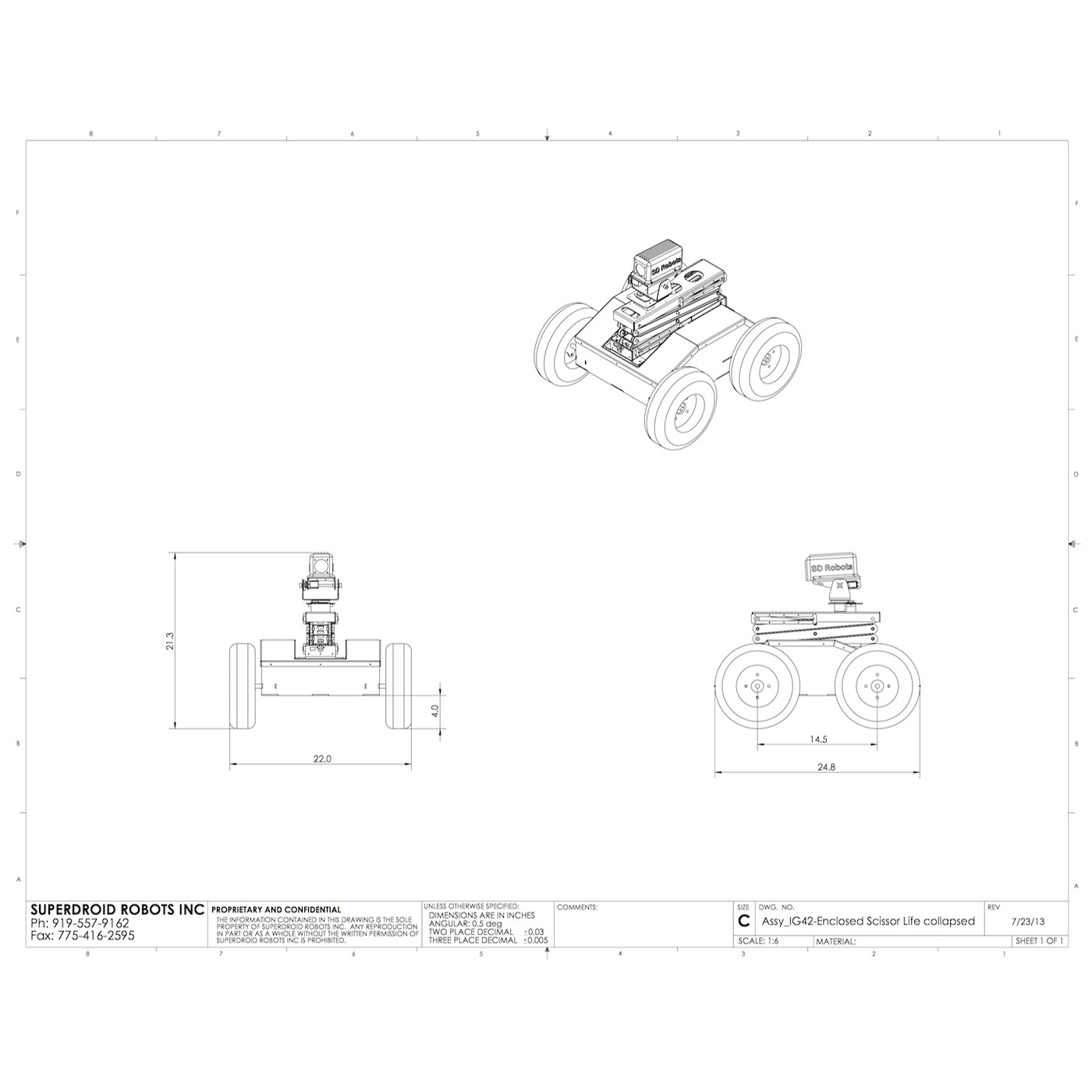

  • Dimensions: The robot is 21.5" wide, 24" long, 21" tall collapsed, 54.5" tall extended
  • Assembly: The entire robot will be assembled, configured, tested, and supported by our professionally trained staff here in NC.

Available Options:

(Selected below)
  • Controller Options: We have multiple radio and controller options available to fit your budget. Our analog radios are available in a range of handhelds and rugged enclosed cases. Our digital remotes are available with a military grade COFDM radio for superior range and performance and our new digital option that’s comparable in price to our analog system and comparable in performance to our COFDM system. For more detailed information on our available controllers, please see our support page.
  • Lights: This add-on provides the user with an option to add remotely operated high intensity LED lights to illuminate the darkness.
  • PA System (for Audio from Remote to the Robot): This add-on allows the user to use a hand held radio to broadcast to the robot through a loud speaker PA system. Using this option along with the above microphone allows 2 way communication between the remote users and the robot.
  • Robot Microphone (for Audio from Robot to Remote): This add-on installs a microphone on the robot. The microphone is a high quality microphone that is meant for listening to large areas. The microphone will be mounted to the robot and the audio will be transmitted back with the video transmitter via the audio channel. The audio will be broadcast real time on the 7 Color LCD. Volume of the audio can be adjusted on the 7 monitor. The gain, etc. of the microphone is set up on the microphone on the robot.

Contact us if you would like a custom configuration of this robot.

Documentation and Support:

Delivery:

  • This robot is built to order based on the options selected below. Please allow 4-8 weeks for shipment.
  • This robot when crated will weigh in close to 100lbs and may have to be shipped freight. Our shopping cart will not calculate the cost for freight, we will contact you after the order is placed for options or contact us for a quote.
  • Actual delivery may vary based on workload, contact us for a more accurate delivery time or if you need it sooner.

Warranty:

  • SuperDroid Robots will repair any manufacturing defects for 1 Year after shipment. Damage from abuse or neglect will not be covered. Warranty work performed by SuperDroid Robots in West Chicago, IL. Warranty does not include shipping. Additional warranty options are available upon request.
  • Consumable items will not be covered by the warranty. Consumable items include, but are not limited to treads, chains, bearings, wheels, and batteries.
  • Extended warranties, spare parts, and maintenance training is available, contact us with specific needs. Service agreements are also available.

Video:

Item Options - Customize
Select an option by clicking on its button. To see more details about the option select the option name, selecting 'more details' in the pop-up will take you to that options product page. Default selections (if any) are pre- selected for you. Click on the update button below to see the price with your selected options.

Select the controller option you want, additional controller information can be found under 'Available Options' above.

This option includes LED Lights mounted on the camera system with power and controls.

No Lights
Include LED lights mounted to camera pan and tilt (Add $213.52)

Select the type of Audio System you want with the robot. With the analog system, only audio from the robot to the remote is possible. Select a digital remote if you want 2-way audio.

No Audio System
1-Way Audio from Robot to Remote (Add $238.00)
2-Way Audio System (Add $629.00)
Item Price
Price with Selected Options:
$7,987.16

 This is our new enclosed wheeled All Terrain Robot with scissor lift PTZ camera. This robot is a great surveillance robot that allows you to see over counter tops, on top of beds, through windows, etc. that most low profile robots can not achieve.
