This Trekker package has loads of obstacle detection sensors. It adds a front sweeping ultrasonic scanner, rear bumper switch, and development board to the Full SuperDroid Trekker Package and includes the NiMH batteries and charger.
The Robot Kit includes the following:
(1) Trekker Chassis - TD-001-000
(1) OOPic II Controller
(1) Assembled OOPic II Ready Expansion Card - TE-001-100
(1) Trekker Development Board Package - TE-003-000
(2) Trekker Bumper Switch Package - TS-010-000
(1) Trekker Top Dual Sweeping Scanner Bracket Kit - TS-004-000
(2) Trekker Sweeping SRF04 Ultrasonic & IR Scanner Pkg - TS-007-004
(1) Trekker Single Fwd Sweeping Scanner Bracket Kit - TS-001-000
(1) Trekker Sweeping SRF04 Ultrasonic Scanner Package - TS-006-004
(1) Trekker 2 Line LCD Package - TLCD-001-005
(1) NiMH Batteries and Charger Kit - TE-008-000
Example code and assembly instructions are included on our Trekker download page. Videos of the Trekker are on our video page.
| (Click on the pictures for enlarged clearer view) |
 |
 |
| 3-D CAD Image |

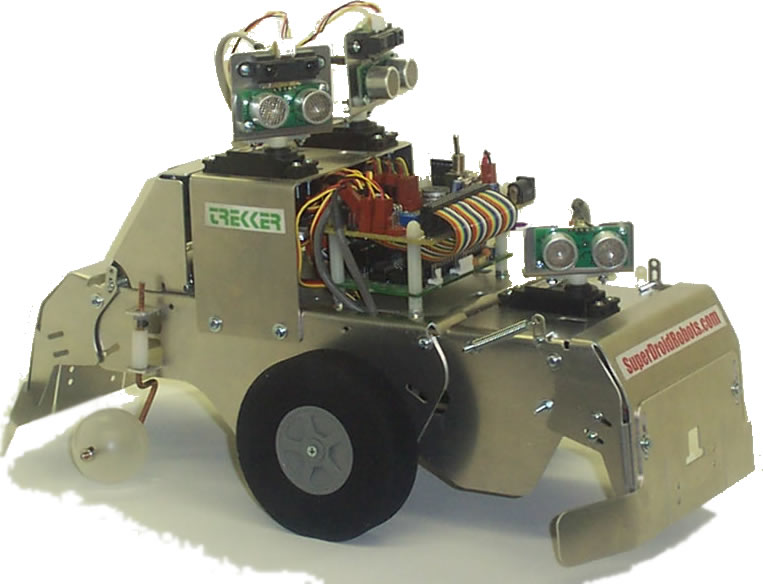

Standard Assembled Max Trekker |
 |
 |
| Assembled Max Trekker Front View |
Assembled Max Trekker with enhanced wheel upgrade |
Option Notes:
- This kit comes standard with an OOPic-II, which requires a custom program cable to program it. If you do not have a program cable, then you should select the OOPic II Starter Package or OOPic II+ Starter Package option.
- The standard wheels are 3.5" foam wheels with ball casters. The enhanced wheel upgrade replaces the 3.5" wheels with an enhanced wheel set. The ball caster wheels are still included with the upgrade so you can use either rear caster.
- If you select and fully assembled robot kit, you do not need to select modified servos too. Modified servos are part of the assembly. If you select a fully assembled robot kit, it will be completely built, programmed, tested and ready to go out of the box!
