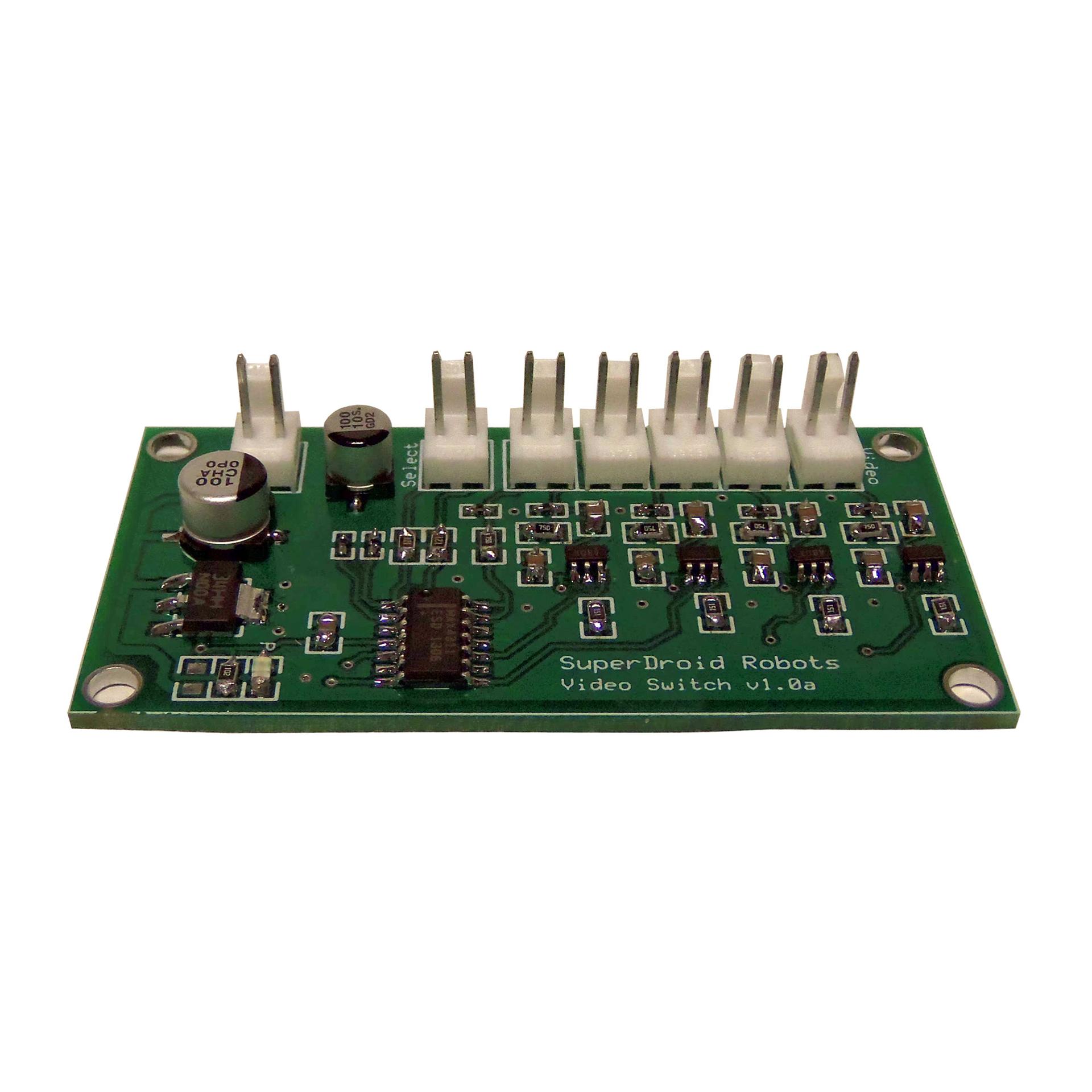

Video Switch Multiplexer PCB - 4 Camera - DISCONTINUED
Features and Specifications
- Input Voltage: 7.5V - 20V*
- Channels: 4 inputs to 1 output
- Communication: TTL
NOTE: A shorting resistor can be attached to power the module from a 5V source.
This video mux PCB module is based on Maxim Integrated's MAX4311 video mux. The module accepts up to four video inputs and can toggle between them using two 5V TTL signals.
