Buffered 3D 3g Accelerometer

  • Buffered 3D 3g Accelerometer

Product Specifications

Model: DE-ACCM3D
Performance: Tri axis ±3g sensing
333mV/g sensitivity at 3.3V
500Hz bandwidth
Accurately drives up to a 500? Load
3.5V to 15V input using onboard regulator
2.0V to 3.6V input bypassing the regulator
Draws only 0.9mA!
Protective Features: Reverse voltage protection
Output short protection
Applications: Motion, tilt and slope measurement
Vibration measurement
Shock sensing
Position sensing
Datasheet:
Example Projects:

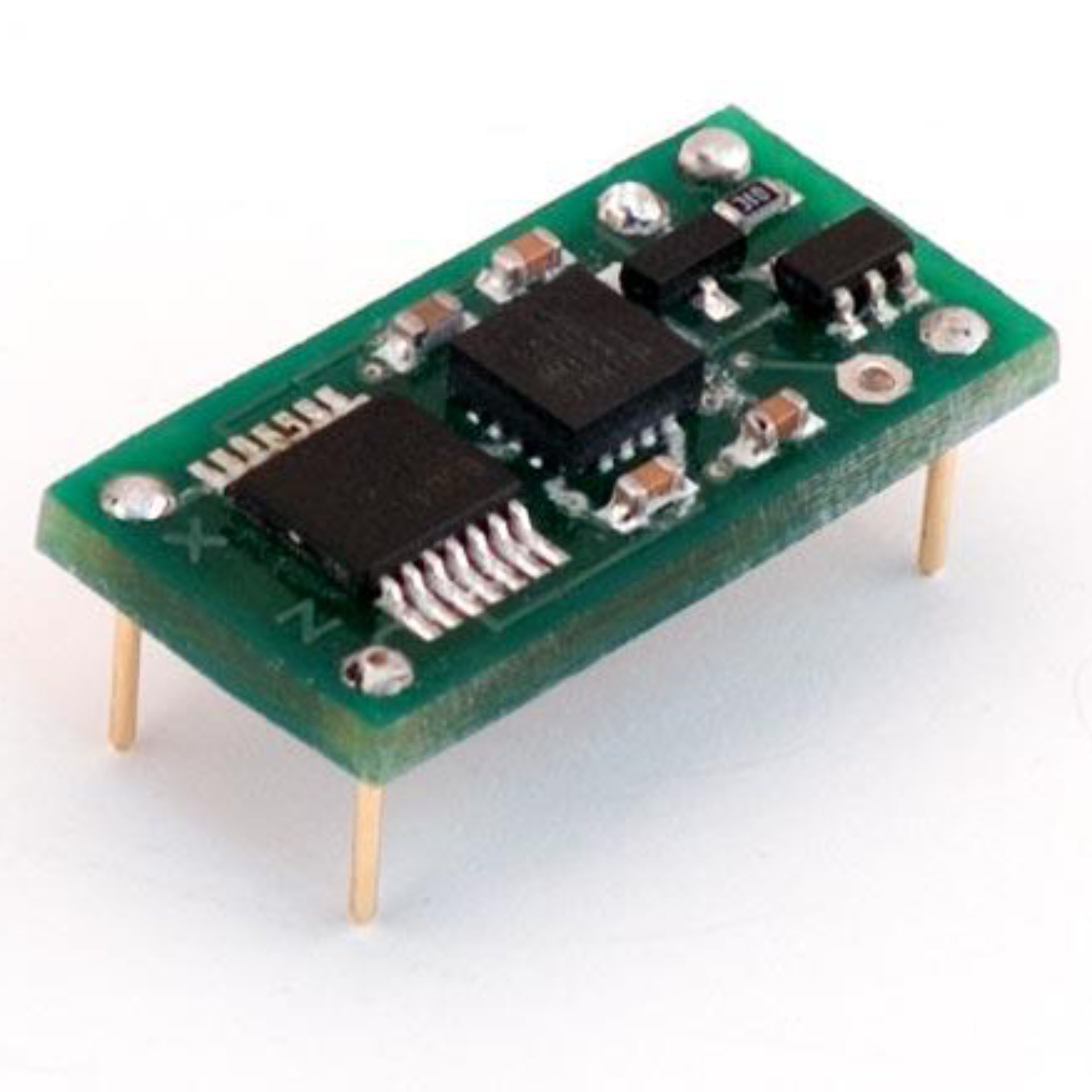

The DE-ACCM3D from Dimension Engineering is the most advanced analog accelerometer solution to date, featuring a triple axis ±3g accelerometer chip. It also has integrated op amp buffers for direct connection to a microcontroller's analog inputs, or for driving heavier loads.

The ACCM3D has an onboard 3.3V LDO regulator, allowing you to power the board with 3.5V to 15V sources. You can also use this regulator to power an external microcontroller with up to 50mA. For operation as low as 2.0V, you can bypass the voltage regulator and choose your own operating voltage.

It is designed to fit in the DIP-16 form factor, making the DE-ACCM3D suitable for breadboarding, perfboarding, and insertion into standard chip sockets. To keep things as simple as possible, there are only 5 pins - two for power, and three for the X, Y and Z analog outputs. Additional circuitry ensures that the product won't be damaged by reversed power connections.

Don't need a Z axis? Try the 6g ACCM or the 2g ACCM.


Buffered 3D 3g Accelerometer

This product is unavailable.

Contact us if you have any questions.
