Humidity Sensor Carrier HIH-4030

Features

  • Nearly linear analog output
  • All pins broken out to a 0.1" pitch header
  • 4 – 5.8 V input voltage
  • 200 μA current draw
  • Dimensions: 0.75 x 0.30" (19.05 x 7.62 mm)

Dimensions

  • Size: 0.75 x 0.30"

General specifications

  • Voltage: 5 V
  • Supply current: 0.2 mA

Documentation

This breakout board for Honeywell's HIH-4030 humidity sensor measures relative humidity (%RH) and outputs the result as an analog voltage on the pin labeled OUT. The sensor output can be read by an ADC on a microcontroller and varies nearly linearly with humidity, which makes the readings easy to process. The humidity sensor is powered with 5 V and typically draws 200 μA. The pins on the board have a 0.1" spacing, making them compatible with 0.1" male header pins and standard breadboards and perfboards. Since this board is a carrier for the HIH-4030, careful reading of the HIH-4030 datasheet (237k pdf) is recommended.

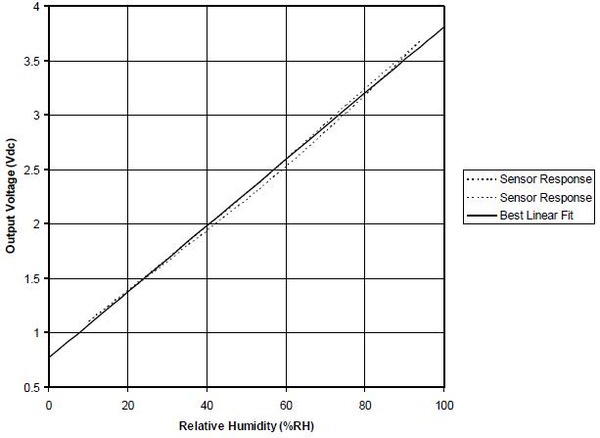

HIH-4030 humidity sensor’s analog output voltage vs relative humidity.


Humidity Sensor Carrier HIH-4030

  • Product Code: TS-051-000
  • Availability: Discontinued

This product is unavailable.

Contact us if you have any questions.
