Configurable - PTW-42 4WD Inspection and Patrol Robot with PTZ Camera

The gallery displays different options for this robot.


This robot comes with the recommended and most popular set up. If you need it customized, let us know and we will be happy to provide a quote.

  • Dimensions (LxWxH): 25" x 22" x 18"
  • Weight: 50lbs as configured
  • Speed: 3.6mph (up to 320 feet per minute)
  • Runtime: Up to five hours

Standard Configuration

  • Assembly: The entire robot will be assembled, configured, tested, and supported by our professionally trained staff here in NC.
  • Chassis: Custom 4WD ATR Welded Aluminum Base with IG42 gear motors
  • Camera System: 360° PTZ camera, +90° to -30° tilt (120 degrees total), 20X Optical zoom
  • Audio: None
  • Lights The PTW-42 comes equipped with camera mounted lights which illuminate the operators viewing area.
  • Enclosed Case Remote: Enclosed in a durable hard plastic case. Spring-loaded joysticks for drive and camera controls offer the operator better feedback and more precise control of the robot. They also make it easier to operate the robot while wearing gloves. LCD Touchscreen displays camera feed and controls other functions of the robot.
  • Remote Inspection - Remotely inspect areas that are not easily accessible to people. Record the video feed on the tablet!
  • Entry into difficult areas - This 4WD robot is very quick and has the ability to traverse many obstacles that often stop other robots.
  • Remote Monitoring - Compact, lightweight and fast you can control this robot from the supplied tablet
  • Remote Surveillance - The PTZ camera with IR capability allows the robot to see in all lighting conditions.
  • This item is Built to Order 4-8 Weeks.
  • Due to the size of this item, freight shipping is typically required. We will contact you after checkout with freight costs and arrangements.
  • Need it faster? Contact us

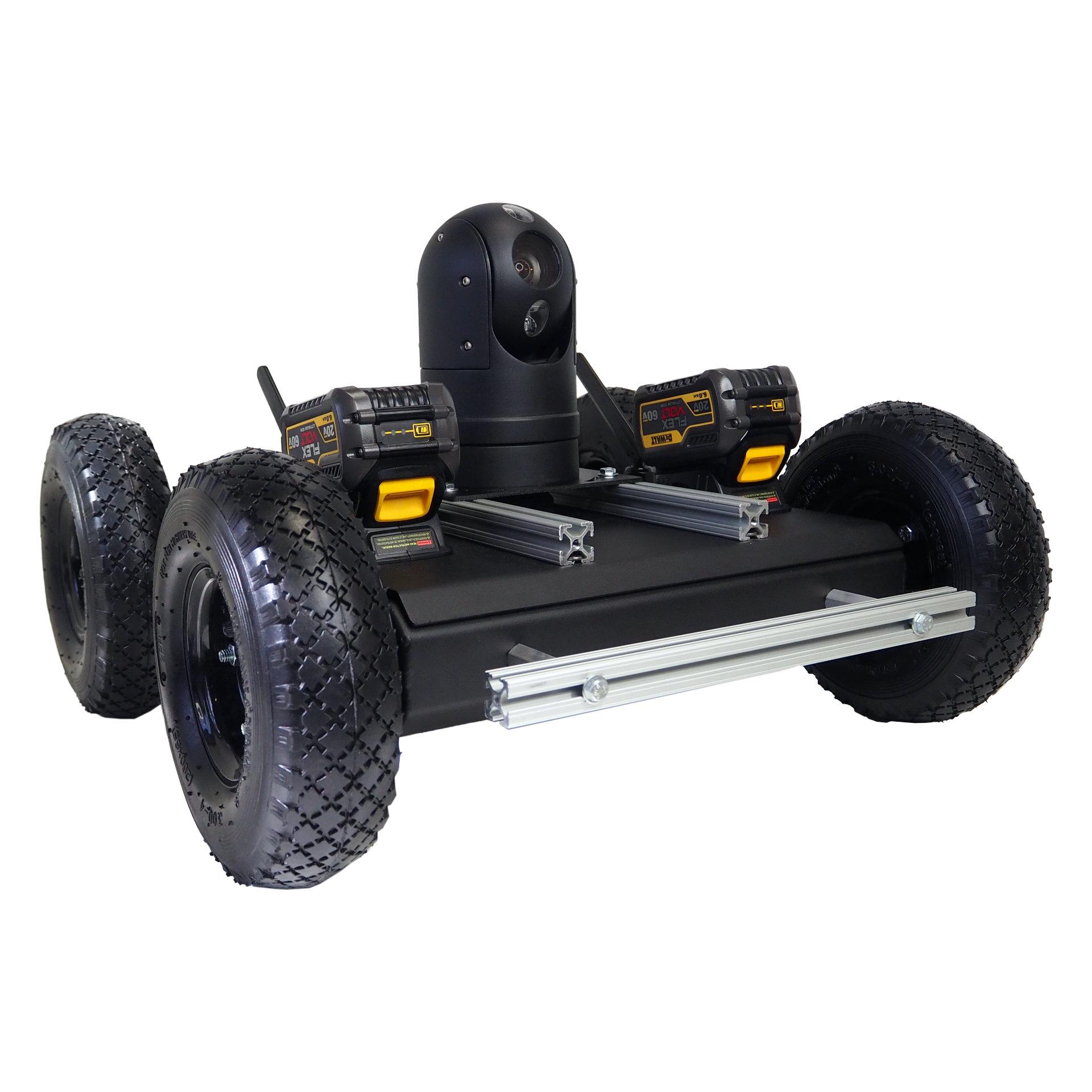

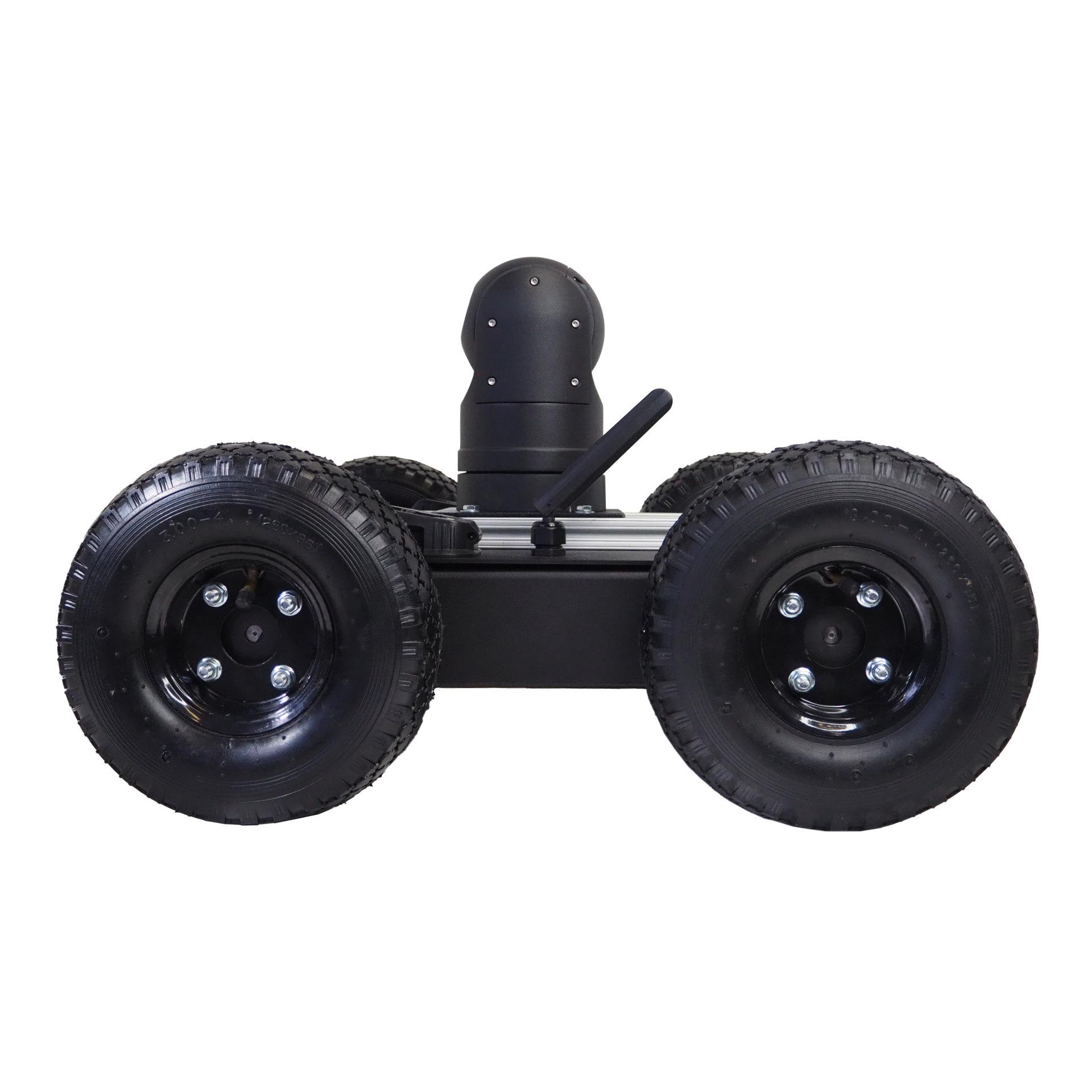

The PTW-42 is a 4WD inspection robot meant for large pipes, structures, and general outdoor inspections. The robot is controlled with an enclosed controller, which also displays video from the camera. The mobile All Terrain Enclosed Robot is programmed and fully assembled complete with an Enclosed Case Remote.

The robot has a 360° pan-tilt camera with 30X optical zoom. All the camera functions are controlled from the controller as you stream the video. The controller allows you to record the video or take still pictures that can be retrieved later. The camera has IR capability, so it can see in all lighting conditions. We also mount LED lights that can be remotely controlled to illuminate in front of the robot.

This robot package comes with the following:

  • PTW-42 4WD Robot with PTZ camera
  • Enclosed Case Remote
  • Connection System(selected below)
  • Battery chargers

Everything needed to run the robot is included in the package and configured so be used right out of the box.

Configurable - PTW-42 4WD Inspection and Patrol Robot with PTZ Camera

  • Product Code: TP-630-000
  • Availability: Built to Order 4-8 Weeks
  • This item does not qualify for free shipping
  • $18,375.00
