2WD 66in Lawn Mower - WC

The gallery displays different options for this robot.

Standard Configuration

Deck Size: 66 inches
Drive Method: Chain drive with a 10:35 reduction (gear motor to drive wheels)
Speed: 1.5 mph (with 135 RPM motors, its 10:35 reduction, and 13" wheels)
Dimensions (LxWxH): 49.5 x 68.5 x 22.5 inches
Weight: Approximately 600lbs
Includes lawn mower
24V 120 RPM wheel chair motors (Qty 2)
2x60 Motor controller (Qty 1)
12V 35Ahr SLA batteries (Qty 4)
13" dual tiller tires, Shafts, #40 sprockets and chains, etc
Includes the Remote control and Failsafe Receiver
Includes battery chargers
Painted
Fully Assembled and tested (we do not offer this as a kit, it requires welding and machining)

Documentation and Support

How to Build a Robot - Support and Videos

Delivery

This item is Discontinued.
Due to the size of this item, freight shipping is typically required. We will contact you after checkout with freight costs and arrangements.
Need it faster? Contact us

Video

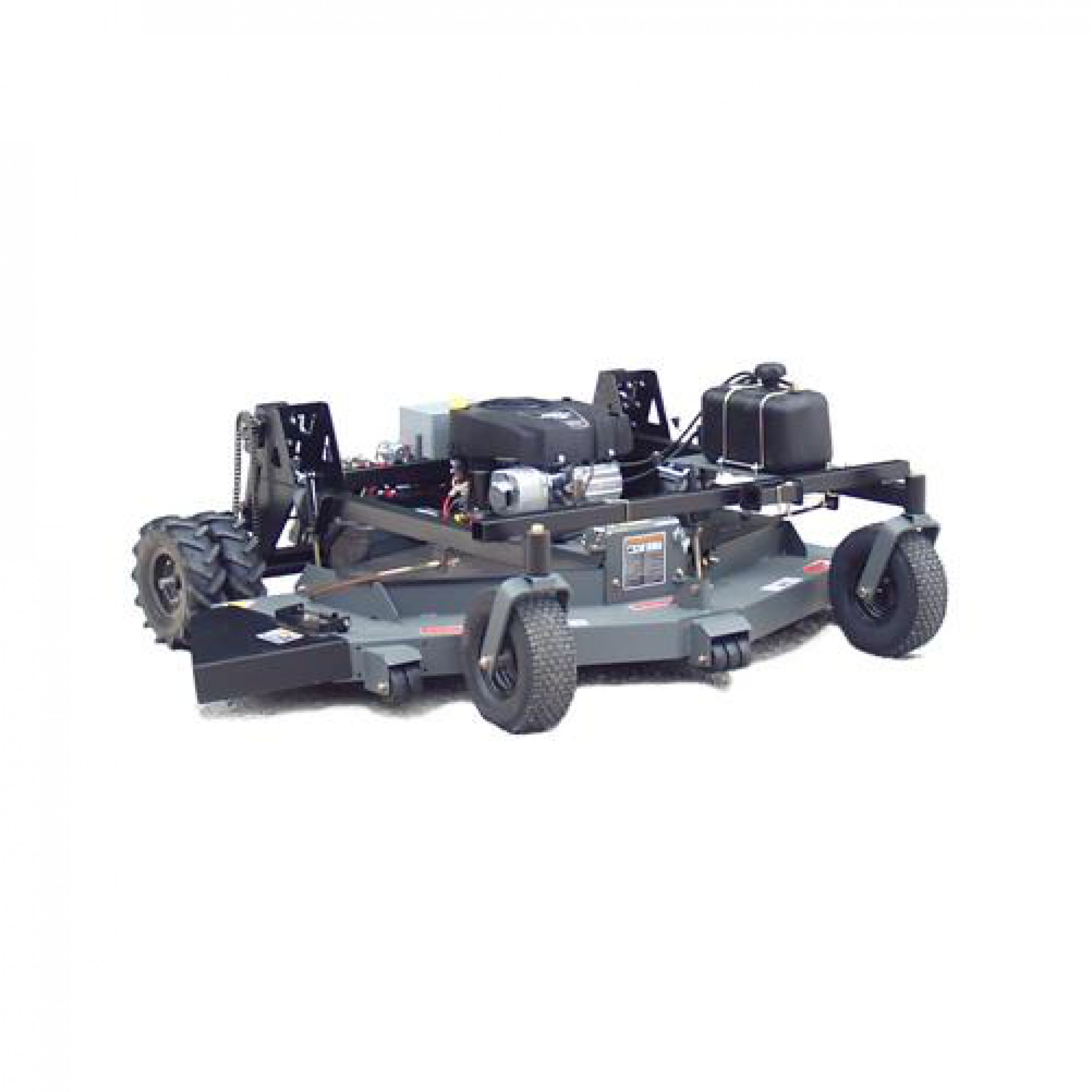

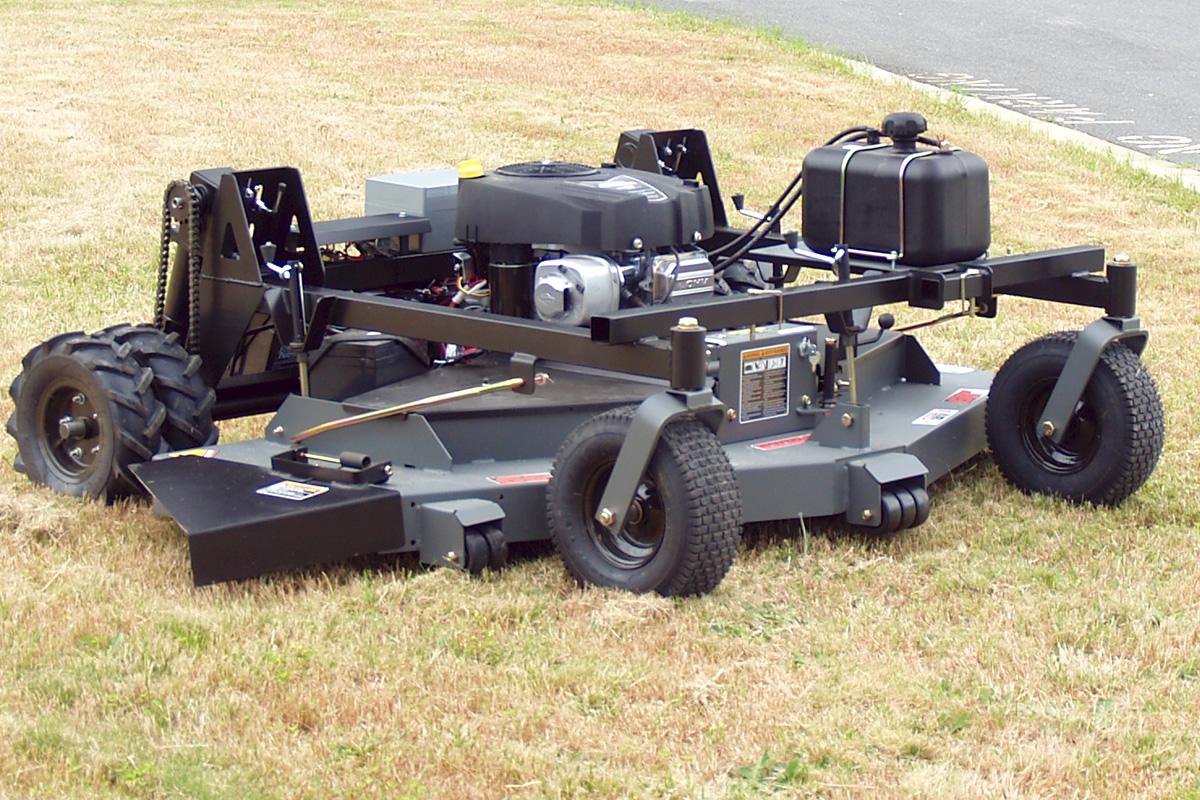

This is the largest RC lawn mower that we've built. We outfitted a 66 in. Swisher Tow-Behind Mower with powerful motors and 35Ah Batteries to be able to remote control this beast. This mower will cut your lawn in no time.

We welded our custom wheel plates and battery mounts to the existing frame and used dual 13" tiller tires for the drive wheels. The drive system uses #40 chain with a 10:35 reduction for plenty of power. This robot also features remote start and kill switches.
