Robot Drive Wheel - 6 inch pneumatic tire

Features and Specifications

  • Pneumatic Robot Drive Wheel - 6 X 2 NOT FOR HIGHWAY USE.
  • The tire does not have a load rating. We have put 125lbs on a 4WD robot using these wheels with no issue.
  • Black Rims, Black Rubber Tire with tube.
  • 2 section rim with 4 Bolt Pattern. 2.125 inch diameter bolt circle, 0.24" bolt hole. Nuts and bolts included.
  • 1.22 center hole in rim.
  • 6.4 inch diameter (measured when fully inflated). 1.9 inches wide (measured).
  • Weight 1.1lbs.
  • Not for Highway Use

Documentation

  • STEP file

  • Note: this is a simplified model. Critical dimensions (bolt pattern, OD) are correct but it is not a completely accurate representation of the product.


Inflate tires before use! Underinflated tires can spin on the rim rupturing the tube inside.


This is a pneumatic robot drive wheel we had made specifically for us. It does not have a bearing. It is 6 inches in diameter and 2 inches wide. The steel rim is painted black with a 4 bolt pattern so you can easily mount it to a flanged hub.


Robot Drive Wheel - 6 inch pneumatic tire

  • Product Code: TD-161-006
  • Availability: Limit 12 per customer - Currently out of stock
  • $10.00

This product is unavailable.

Contact us if you have any questions.

Related Products

Robot Drive Wheel - 10 inch Pneumatic
Robot Drive Wheel - 10 inch Pneumatic

This is a robot drive wheel we had made specifically for us. It does not have a bearing. Its 10 inch..

Product Code: TD-109-010

$8.40

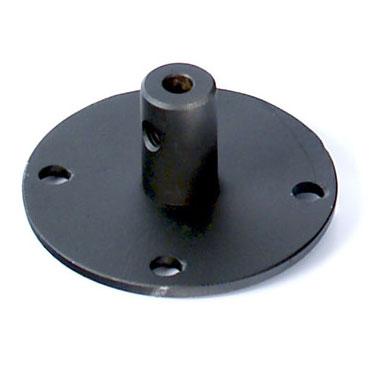

ATR Shaft 6mm DM - 6 inch Tire
