Robot Drive Wheel - Traction Lug 13 x 5.00-6 Tiller Tire

Features and Specifications

  • Size: 13x5.00-6
  • Outer Diameter: 13 inches
  • Tread Width: 4 inches
  • Tread: Directional Lug
  • Hub: 2 section rim with 5 Bolt Pattern. 4" diameter bolt circle, 0.3" bolt hole
  • Tube: Yes/Pneumatic
  • Weight: 6.7lbs each
  • Not for highway use
  • Max load: 300 pounds at 30 PSI

Documentation

  • STEP file

  • Note: this is a simplified model. Critical dimensions (bolt pattern, OD) are correct but it is not a completely accurate representation of the product.


Inflate tires before use! Underinflated tires can spin on the rim rupturing the tube inside.


Heavy duty robot wheel with aggressive traction lug/tiller tread. It does not have a bearing. It is 13 inches in diameter. 4" inches wide. It is pneumatic with a 5 bolt pattern so you can easily mount it to a flanged hub.


Robot Drive Wheel - Traction Lug 13 x 5.00-6 Tiller Tire

  • Product Code: TD-164-013
  • Brand: SuperDroid Robots
  • Availability: Limit 12 per customer - Currently out of stock
  • This item does not qualify for free shipping
  • $35.00



Related Products

Robot Drive Wheel - Traction Lug 10 x 3.50-4 Tiller Tire
Robot Drive Wheel - Traction Lug 10 x 3.50-4 Tiller Tire

Heavy duty robot drive wheel with aggressive traction lug tread. It does not have a bearing. It is 1..

Product Code: TD-164-010

$18.90

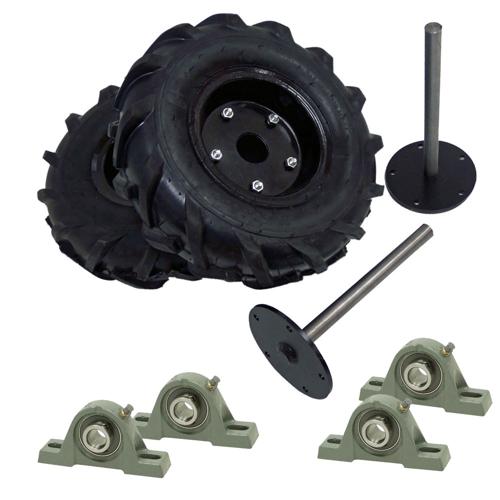

ATR Wheel and Shaft Set Pair - 13 inch Traction Lug - DISCONTINUED
ATR Wheel and Shaft Set Pair - 13 inch Traction Lug - DISCONTINUED

This is a wheel and shaft set for our 13" tiller tires. They come as a pair along with a pair of axl..

Product Code: TD-167-000

$255.90

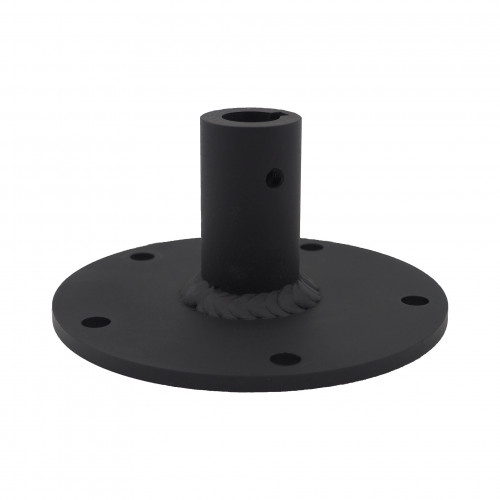

ATR Shaft DM for Wheelchair Motor 17mm Bore for 13 inch Traction Lug
