ATR Wheel and Shaft Set Pair 12mm bore - 10 inch Traction Lug
Features and Specifications
- (2) 10inch Aggressive Tread Pneumatic Wheels
- (2) Custom Made 5/8"OD Shafts with welded hub matched for wheels
- (2) 5/8"ID sealed bearings
- (4) 5/8"ID shaft collars
- (2) Long Set Screws
- (8) Bolts for Mounting the Tires to the Shaft
- The 10 inch pneumatic wheel has a 300lb load rating
- Total Weight: 9.2 lbs (set of wheels, shafts, etc. as listed).
Inflate tires before use! Underinflated tires can spin on the rim rupturing the tube inside.
Documentation and Support
- Click here to view a CAD drawing of the shafts.

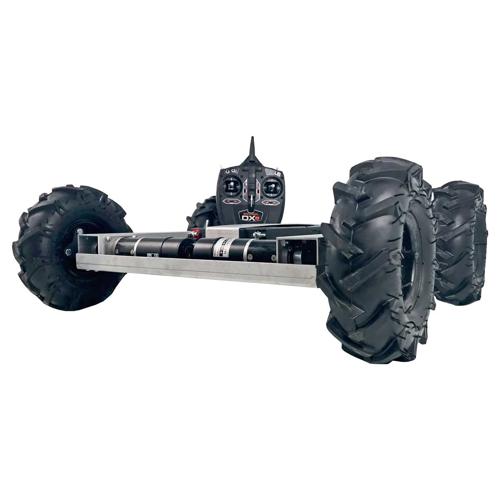

These large Traction Lug/Tiller ATR wheels are 10" in diameter. They come as pair and have steel 5/8" diameter shafts and bearings for our IG52 motors with 12mm shafts. This item also includes a custom machined shaft with a welded hub (cut on our CNC machine) that matches the bolt pattern of the wheel. The shaft is 5/8" diameter and has a 12mm bore for our IG52 gear motors. The shaft is intended to mount on our custom length ATR sides. Also included are shaft collars for locking the wheel in place and onto the motor.
As 4WD skid steer robots, these wheels will only work with our IG52 gear motors. To calculate the speed of the robot just take the output RPM * wheel diameter (in inches) * 3.14 / 12 = feet per minute.
The shaft is bored with a 12mm hole for mounting onto the IG52 gear motors. These shafts are made to order and may require a 1-2 business days before shipment.
ATR Wheel and Shaft Set Pair 12mm bore - 10 inch Traction Lug
- Product Code: TD-163-012
- Brand: SuperDroid Robots
- Availability: This product or this version of the product is not being sold anymore.
- This item does not qualify for free shipping
$102.32
Available Options
( Collapse All )- (Qty 2) ATR Shaft 12mm Bore for 10 inch Tire
- (Qty 2) Robot Drive Wheel - Traction Lug 10 x 3.50-4 Tiller Tire
- (Qty 2) Steel Ball Bearing Flanged Double Sealed for 5/8" Shaft Dia, 1 3/8" OD
- (Qty 4) Shaft Collar with set screw - 0.625 inch ID
- (Qty 8) Bolts for Mounting the Tires to the Shaft
- (Qty 2) Long set screw for 5/8 shaft collar
