Component Overview

  • Cost-effective solution where precision range-findings are needed
  • Sensor component allows users to lower the cost of their systems without sacrificing performance
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
  • Virtually no sensor dead zone, objects closer than 30 cm will typically range as 30 cm
  • Resolution of 1 mm
  • Maximum range of 5000 mm (195 inches)
  • Tolerates outside noise sources
  • Operates from 2.5V-5.5V
  • Low 3.1mA average current requirement
  • 10Hz reading rate
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -15°C to +65°C (+5°F to +149°F)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Internal temperature compensation
  • Option external temperature compensation HR-MaxTemp
  • Firmware filtering for better noise tolerance and clutter rejection
  • Narrow beam and good side object rejection
  • Best for large object detection applications

The HRLV-MaxSonar-EZ3 is a narrow beam sensor with good side object rejection. The HRLV-MaxSonar-EZ3 has slightly wider beam width than the MB1043 HRLV-MaxSonar-EZ4 which makes it a good choice for when the HRLV-MaxSonar-EZ4 does not have enough sensitivity for the application.

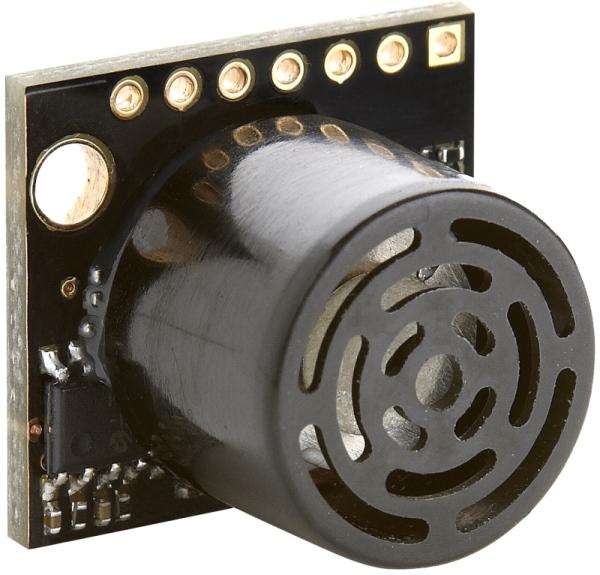

HRLV-MaxSonar-EZ3 Ultrasonic Range Finder

  • Brand: MaxBotix
  • Product Code: TS-046-103
  • Availability: 25 In stock
  • $49.07
