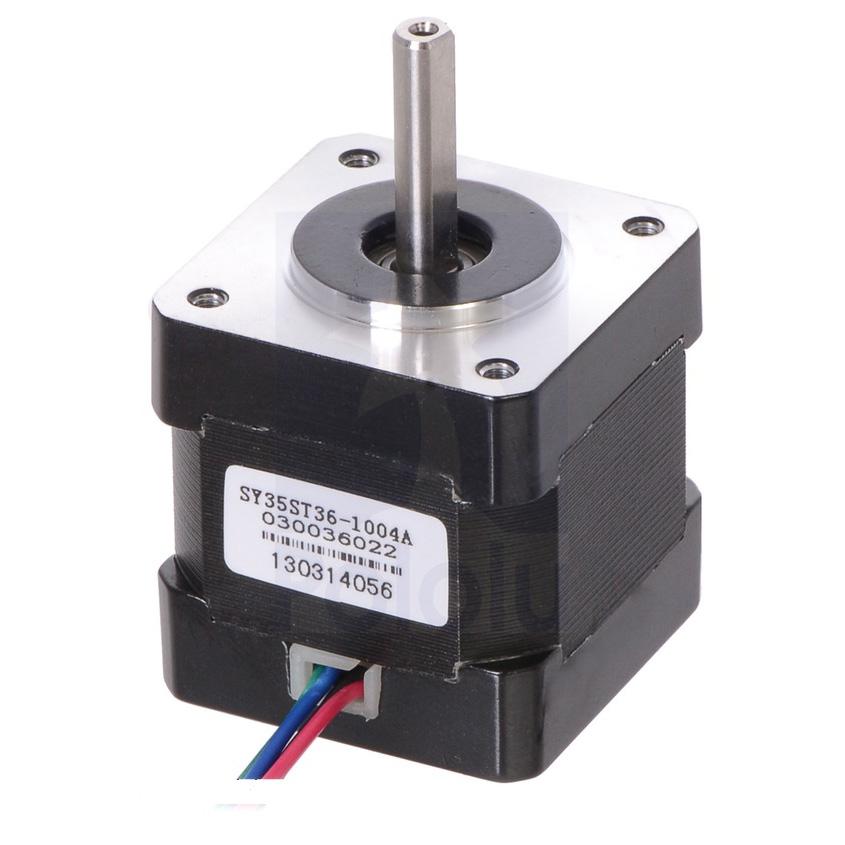

Stepper Motor Bipolar 200 Steps per Rev 35×36mm 2.7V 1A per Phase

Features and Specifications

  • Size: 35 mm square × 36 mm, not including the shaft (NEMA 14)
  • Weight: 180 g (6 oz)
  • Shaft diameter: 5 mm
  • Steps per revolution: 200
  • Current rating: 1 A per coil
  • Voltage rating: 2.7 V
  • Resistance: 2.7 Ohm per coil

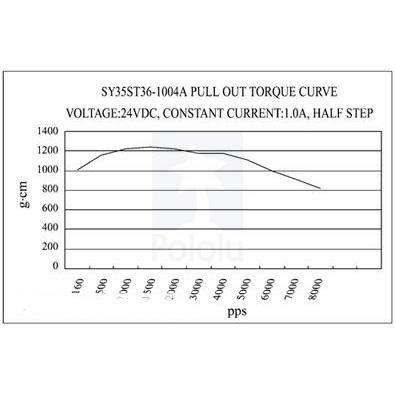

  • Holding torque: 1.4 kg-cm (20 oz-in)
  • Inductance: 4.3 mH per coil
  • Lead length: 12 in

Recommendations

Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:

  • Printers
  • CNC machines
  • 3D printer/prototyping machines
  • Laser cutters
  • Pick and place machines
  • Linear actuators
  • Hard drives

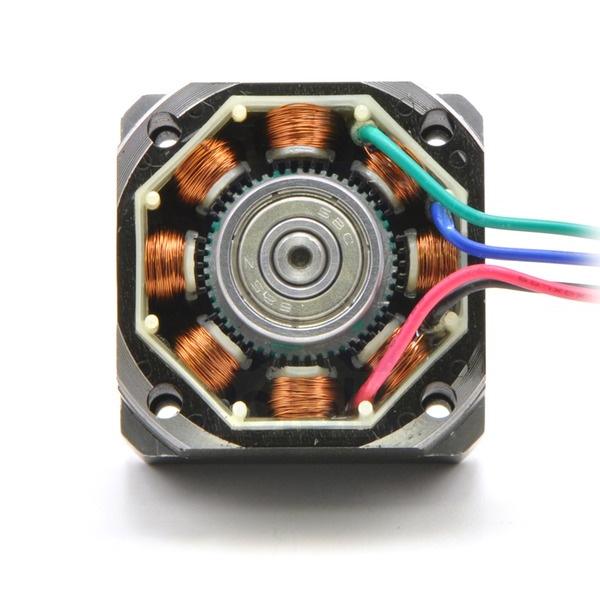

This hybrid bipolar stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 1 A at 2.7 V, allowing for a holding torque of 1.4 g-cm (20 oz-in). The motor has four color-coded wires terminated with bare leads: black and green connect to one coil; red and blue connect to the other. It can be controlled by a pair of suitable H-bridges (one for each coil), but we recommend using a bipolar stepper motor driver.


Stepper Motor Bipolar 200 Steps per Rev 35×36mm 2.7V 1A per Phase

  • Product Code: TD-117-000
  • Availability: 10 In stock
  • $22.52
